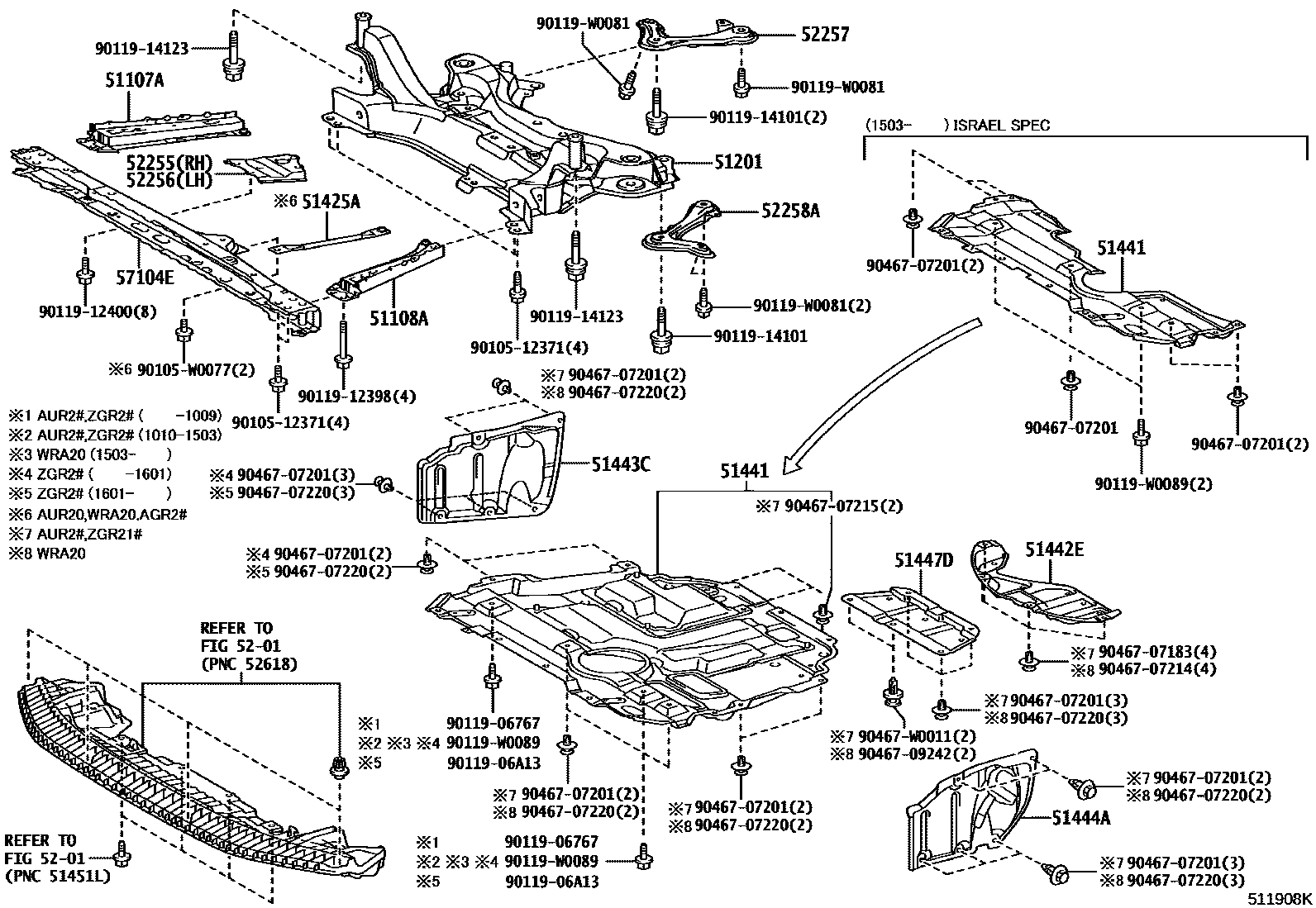

SUSPENSION CROSSMEMBER & UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-05020iAUR2#,ZGR2#200902-201710

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-05010iAUR2#,ZGR2#200902-201503

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02101iAUR2#,ZGR2#200902-201307

sub51201-02102

main51201-02102iAUR2#,WAR20,ZGR2#201308-201503

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-02010iAUR20,ZGR2#200902-201503

main51425-0F020iWAR20201401-201503

51441COVER, ENGINE UNDER, NO.1

main51410-02170iZGR2#200902-201503

main51410-02180iAUR2#200902-201503

main51410-02220iZGR2#201503

main51410-0F020iWAR20201401-201503

51442ECOVER, ENGINE UNDER, NO.2

main51442-02230iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY200902-201503

51443CCOVER, ENGINE UNDER, REAR RH

main51443-02050iZGR21..RHD..CVT..ENTRY200902-201503

51444ACOVER, ENGINE UNDER, REAR LH

main51444-02041iAUR2#,ZGR2#200902-201503

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-02010iAUR2#,ZGR2#200902-201503

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02010iAUR2#,ZGR2#200902-201503

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02010iAUR2#,ZGR2#200902-201503

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-02031iAUR2#,ZGR2#200902-201211

main52257-02060iAUR2#,WAR20,ZGR2#201211-201503

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-02031iAUR2#,ZGR2#200902-201211

main52258-02060iAUR2#,WAR20,ZGR2#201211-201503

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-02160iAUR2#,ZGR2#200902-201503

sub57104-12270

9010512371

main90105-12371

90105W0077

main90105-W0077

9011906767

main90119-06767

9011906A13

main90119-06A13

9011912398

main90119-12398

9011912400

main90119-12400

9011914101

main90119-14101

9011914123

main90119-14123

90119W0081

main90119-W0081

90119W0089

main90119-W0089

9046707183

main90467-07183

9046707201

main90467-07201

9046707214

main90467-07214

9046707215

main90467-07215

9046707220

main90467-07220

9046709242

main90467-09242

90467W0011

main90467-W0011

32 parts on this diagram · 1 diagram in section
