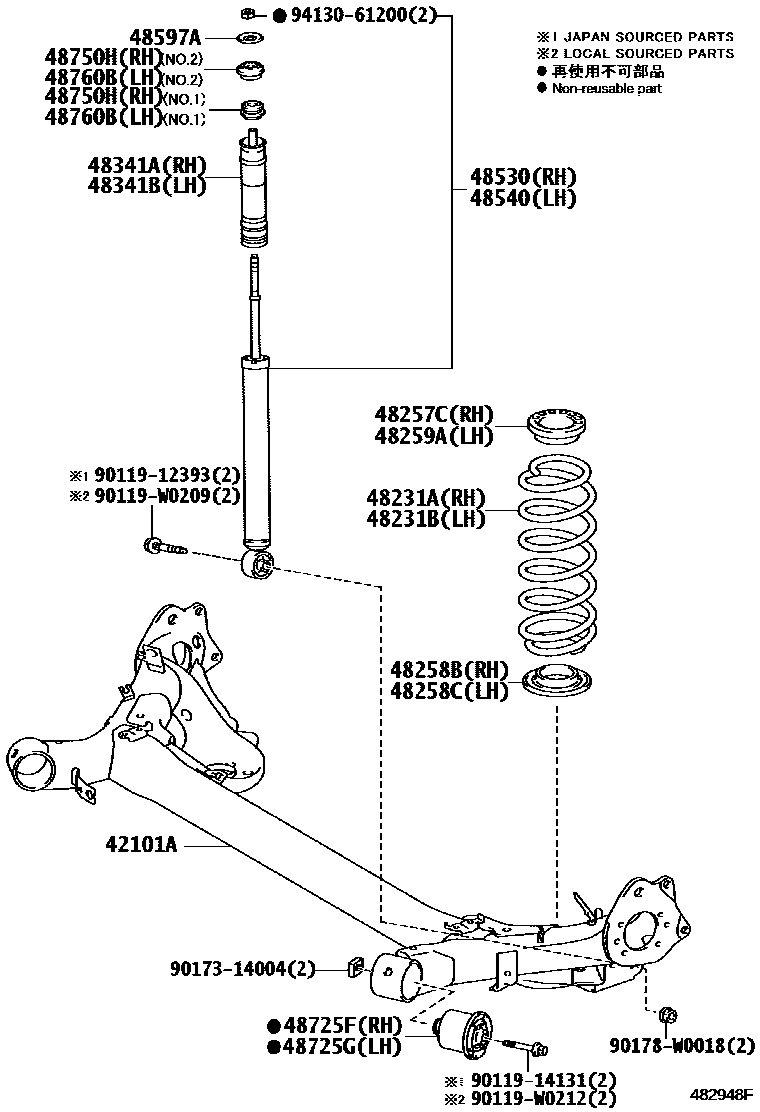

REAR SPRING & SHOCK ABSORBER
42101ABEAM SUB-ASSY, REAR AXLE
48231ASPRING, COIL, REAR RH
WEST RUSSIA SPEC&TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD
WEST RUSSIA SPEC&7SEATS PACKAGE&TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD
48231BSPRING, COIL, REAR LH
WEST RUSSIA SPEC&TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD
WEST RUSSIA SPEC&7SEATS PACKAGE&TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-0F040
MARK 48530-0F041
MARK 48530-0F060
MARK 48530-0F061
MARK 48530-0F042,WEST RUSSIA SPEC
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-0F040
MARK 48530-0F041
MARK 48530-0F060
MARK 48530-0F061
MARK 48530-0F042,IRELAND SPEC
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
NO.1
NO.2
48760BSUPPORT ASSY REAR SUSPENSION, LH
NO.1
NO.2
9011912393
main90119-12393
9011914131
main90119-14131
90119W0209
main90119-W0209
90119W0212
main90119-W0212
9017314004
main90173-14004
90178W0018
main90178-W0018
9413061200
main94130-61200
23 parts on this diagram · 1 diagram in section
