4303

43211KNUCKLE, STEERING, RH

main43211-0F020i200902-201612

sub43211-0F040

main43211-0F040i201612

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17009i200902-201503

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010i200902-201503

OD=15,TYPE C:REFER ILLUST.

main90105-17011i200902-201503

OD=14,TYPE D:REFER ILLUST.

main90105-W0070i200902-201503

OD=17,TYPE A:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002i200902-201503

43212KNUCKLE, STEERING, LH

main43212-0F020i200902-201612

sub43212-0F040

main43212-0F040i201612

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17009i200902-201503

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010i200902-201503

OD=15,TYPE C:REFER ILLUST.

main90105-17011i200902-201503

OD=14,TYPE D:REFER ILLUST.

main90105-W0070i200902-201503

OD=17,TYPE A:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002i200902-201503

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09630i200902-201609

sub43330-09631

main43330-09631i201610

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003i200902-201503

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-W0077i200902-201503

sub90105-12346

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019i200902-201503

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09630i200902-201609

sub43330-09631

main43330-09631i201610

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003i200902-201503

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-W0077i200902-201503

sub90105-12346

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019i200902-201503

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0F020i201606

main48068-0F030i200902-201606

sub48068-0F020

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16090i201306-201503

main91554-L1690i200902-201305

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-16006i200902-201503

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-16090i201306-201503

main91554-L1690i200902-201305

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0F020i201606

main48069-0F030i200902-201606

sub48069-0F020

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16090i201306-201503

main91554-L1690i200902-201305

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-16006i200902-201503

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-16090i201306-201503

main91554-L1690i200902-201305

9538103225

main95381-03225

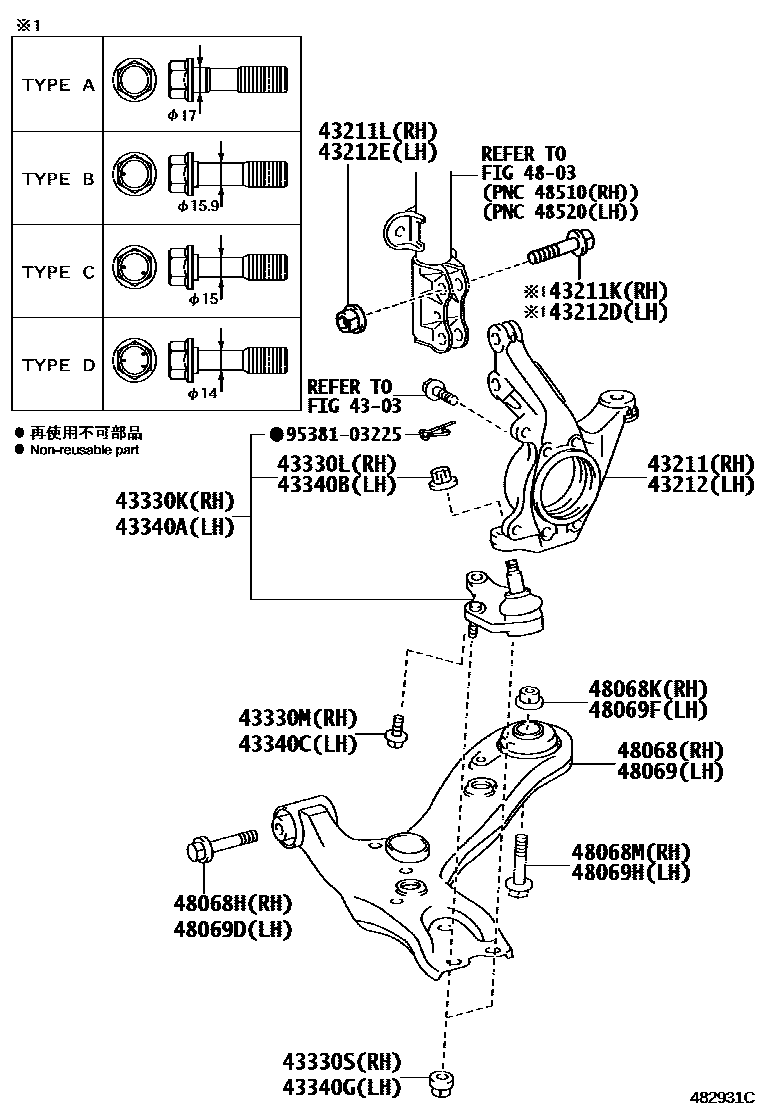

FRONT AXLE ARM & STEERING KNUCKLE
