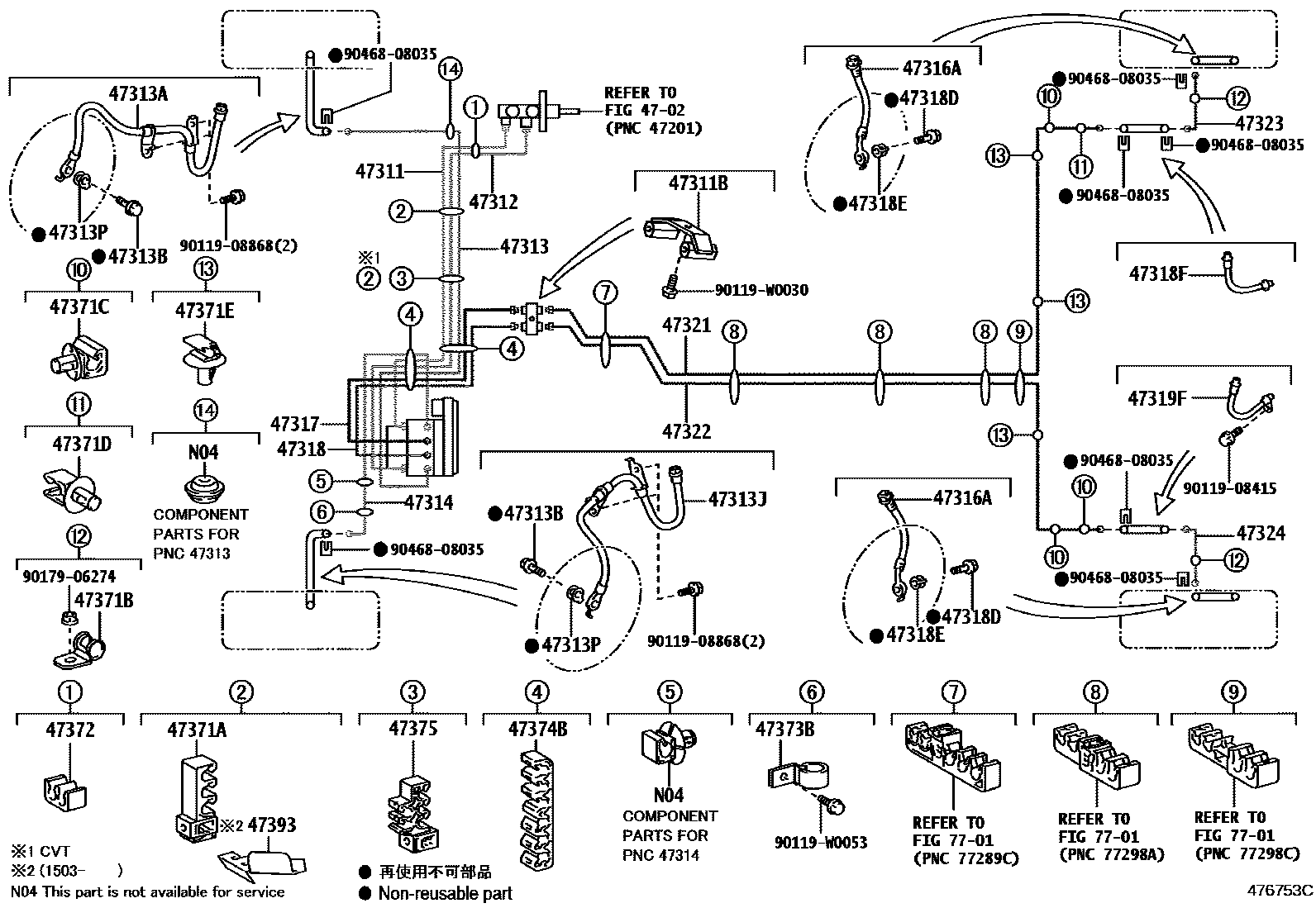

BRAKE TUBE & CLAMP

0001 1 0002 1W(VSC) 0003 1W(ABS) 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0F080iAUR2#,WAR20,ZGR2#..LHD..(6F,6FC)200902-201503

main47311-0F090iZGR21..LHD..CVT200902-201503

main47311-0F110iAUR2#,ZGR2#..RHD..(6F,6FC)200902-201503

main47311-0F120iZGR21..RHD..CVT200902-201503

main47311-0F150iWAR20,ZGR2#..LHD..6F201503

main47311-0F161iZGR21..LHD..CVT201503

main47311-0F170iWAR20,ZGR2#..RHD..6F201503

main47311-0F180iZGR21..RHD..CVT201503

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10255iAUR2#,ZGR2#200902-201211

main90412-10285iAUR2#,WAR20,ZGR2#201211-201503

47312TUBE, FRONT BRAKE, NO.2

main47312-02B20iWAR20,ZGR2#..LHD..6F201503

main47312-02B30iWAR20,ZGR2#..RHD..6F201503

main47312-0F080iAUR2#,WAR20,ZGR2#..LHD..(6F,6FC)200902-201503

main47312-0F090iZGR21..LHD..CVT200902-201503

main47312-0F110iAUR2#,ZGR2#..RHD..(6F,6FC)200902-201503

main47312-0F120iZGR21..RHD..CVT200902-201503

main47312-0F151iZGR21..LHD..CVT201503

main47312-0F160iZGR21..RHD..CVT201503

47313TUBE, FRONT BRAKE, NO.3

main47313-02C80iWAR20,ZGR2#..LHD..6F201503

main47313-02C90iWAR20,ZGR2#..RHD..6F201503

main47313-0F080iAUR2#,ZGR2#..LHD..(6F,6FC)200902-201211

main47313-0F081iAUR2#,WAR20,ZGR2#..LHD..(6F,6FC)201211-201503

main47313-0F090iZGR21..LHD..CVT200902-201211

main47313-0F091iZGR21..LHD..CVT201211-201503

main47313-0F110iAUR2#,ZGR2#..RHD..(6F,6FC)200902-201211

main47313-0F111iAUR2#,WAR20,ZGR2#..RHD..(6F,6FC)201211-201503

main47313-0F120iZGR21..RHD..CVT200902-201211

main47313-0F121iZGR21..RHD..CVT201211-201503

main47313-0F160iZGR21..LHD..CVT201503

main47313-0F170iZGR21..RHD..CVT201503

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-W2012iAUR2#,ZGR2#200902-201211

main90947-W2042iAUR2#,WAR20,ZGR2#201211-201503

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iWAR20,ZGR2#200902-201503

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-W2013iAUR2#,ZGR2#200902-201211

main90947-W2043iAUR2#,WAR20,ZGR2#201211-201503

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iAUR2#,ZGR2#200902-201608

47314TUBE, FRONT BRAKE, NO.4

main47314-02C30iWAR20,ZGR2#..LHD..6F201503

main47314-02C40iWAR20,ZGR2#..RHD..6F201503

main47314-0F080iAUR2#,ZGR2#..LHD..(6F,6FC)200902-201202

sub47314-0F081

main47314-0F081iAUR2#,ZGR2#..LHD..(6F,6FC)201203-201211

main47314-0F082iAUR2#,WAR20,ZGR2#..LHD..(6F,6FC)201211-201503

main47314-0F090iZGR21..LHD..CVT200902-201202

sub47314-0F091

main47314-0F091iZGR21..LHD..CVT201203-201211

main47314-0F092iZGR21..LHD..CVT201211-201503

main47314-0F110iAUR2#,ZGR2#..RHD..(6F,6FC)200902-201202

main47314-0F111iAUR2#,ZGR2#..RHD..(6F,6FC)201203-201211

main47314-0F112iAUR2#,WAR20,ZGR2#..RHD..(6F,6FC)201211-201503

main47314-0F120iZGR21..RHD..CVT200902-201202

main47314-0F121iZGR21..RHD..CVT201203-201211

main47314-0F122iZGR21..RHD..CVT201211-201503

main47314-0F151iZGR21..LHD..CVT201503

main47314-0F160iZGR21..RHD..CVT201503

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-W2016iAUR2#,ZGR2#200902-201211

main90947-W2044iAUR2#,WAR20,ZGR2#201211-201503

47317TUBE, FRONT BRAKE, NO.7

main47317-02B70iWAR20,ZGR2#..LHD..6F201503

main47317-02B80iWAR20,ZGR2#..RHD..6F201503

main47317-0F080iAUR2#,ZGR2#..LHD..(6F,6FC)200902-201211

main47317-0F081iAUR2#,WAR20,ZGR2#..LHD..(6F,6FC)201211-201503

main47317-0F090iZGR21..LHD..CVT200902-201211

main47317-0F091iZGR21..LHD..CVT201211-201503

main47317-0F110iAUR2#,ZGR2#..RHD..(6F,6FC)200902-201211

main47317-0F111iAUR2#,WAR20,ZGR2#..RHD..(6F,6FC)201211-201503

main47317-0F120iZGR21..RHD..CVT..E200902-201211

main47317-0F121iZGR21..RHD..CVT201211-201503

main47317-0F150iZGR21..LHD..CVT201503

main47317-0F160iZGR21..RHD..CVT201503

47318TUBE, FRONT BRAKE, NO.8

main47318-02B90iWAR20,ZGR2#..LHD..6F201503

main47318-02C00iWAR20,ZGR2#..RHD..6F201503

main47318-0F080iAUR2#,ZGR2#..LHD..(6F,6FC)200902-201211

main47318-0F081iAUR2#,WAR20,ZGR2#..LHD..(6F,6FC)201211-201503

main47318-0F090iZGR21..LHD..CVT200902-201211

main47318-0F091iZGR21..LHD..CVT201211-201503

main47318-0F110iAUR2#,ZGR2#..RHD..(6F,6FC)200902-201211

main47318-0F111iAUR2#,WAR20,ZGR2#..RHD..(6F,6FC)201211-201503

main47318-0F120iZGR21..RHD..CVT..ENTRY200902-201211

main47318-0F121iZGR21..RHD..CVT201211-201503

main47318-0F150iZGR21..LHD..CVT201503

main47318-0F160iZGR21..RHD..CVT201503

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iAUR2#,ZGR2#200902-201503

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iWAR20,ZGR2#201610

(J)

main47389-50020iAUR2#,ZGR2#200902-201610

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-W2015iZGR21..RHD..CVT..ENTRY200902-201211

main90947-W2045iWAR20,ZGR2#201211-201503

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-W2014iAUR2#,ZGR2#200902-201211

main90947-W2046iWAR20,ZGR2#201211-201503

47321TUBE, REAR BRAKE, NO.1

main47321-0F020iWAR20,ZGR2#201503-201710

main47321-0F030iAUR2#,ZGR2#200902-201211

main47321-0F031iAUR2#,WAR20,ZGR2#201211-201503

47322TUBE, REAR BRAKE, NO.2

main47322-0F020iWAR20,ZGR2#201503-201710

main47322-0F030iAUR2#,ZGR2#200902-201211

main47322-0F031iAUR2#,WAR20,ZGR2#201211-201503

47323TUBE, REAR BRAKE, NO.3

main47323-02080iAUR2#,ZGR2#200902-201211

main47323-0F020iAUR2#,WAR20,ZGR2#201211-201503

main47323-0F030iWAR20,ZGR2#201503

47324TUBE, REAR BRAKE, NO.4

main47324-02080iAUR2#,ZGR2#200902-201211

main47324-0F020iAUR2#,WAR20,ZGR2#201211-201503

main47324-0F030iWAR20,ZGR2#201503

47371ACLAMP, BRAKE TUBE, NO.1

main47371-12280iZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY200902-201503

main90464-00868iAUR2#,ZGR2#..LHD..05S200902-201503

main90949-01D92iWAR20,ZGR2#..LHD..6F201503

main90949-01E24iWAR20,ZGR2#..RHD201503

47371BCLAMP, BRAKE TUBE, NO.6

main90461-10837iAUR2#,ZGR2#200902-201211

main90461-10843iAUR2#,WAR20,ZGR2#201211-201503

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D17iAUR2#,ZGR2#200902-201710

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01D29iAUR2#,ZGR2#200902-201710

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01D46iAUR2#,WAR20,ZGR2#200902-201710

47372CLAMP, BRAKE TUBE, NO.2

main90464-00884iZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY200902-201503

main90464-00885iAUR2#,ZGR2#..LHD200902-201503

main90949-01E21iWAR20,ZGR2#..LHD201503

main90949-01E23iWAR20,ZGR2#..RHD201503

47373BCLAMP, BRAKE TUBE, NO.3

main90461-10781iAUR2#,ZGR2#200902-201503

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00895iZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY200902-201503

main90949-01E18iZGR21..LHD201503

main90949-01E22iWAR20,ZGR2#..RHD201503

47375CLAMP, BRAKE TUBE, NO.5

main90949-01C82iWAR20,ZGR20..LHD201503

main90949-01D42iAUR2#,WAR20,ZGR2#..RHD..(6F,6FC)200902-201503

main90949-01D70iZGR21..RHD..CVT..E200902-201503

main90949-01E19iZGR21..LHD201503

main90949-01E20iWAR20,ZGR2#..RHD201503

47393INSULATOR, BRAKE TUBE HEAT

main47393-12010iZGR21..RHD201503

main47393-12040iZGR21..LHD201503

main47393-20030iWAR20,ZGR20..RHD201503

7701

9011908415

main90119-08415

9011908868

main90119-08868

90119W0030

main90119-W0030

90119W0053

main90119-W0053

9017906274

main90179-06274

9046808035

main90468-08035

38 parts on this diagram · 11 diagrams in section
