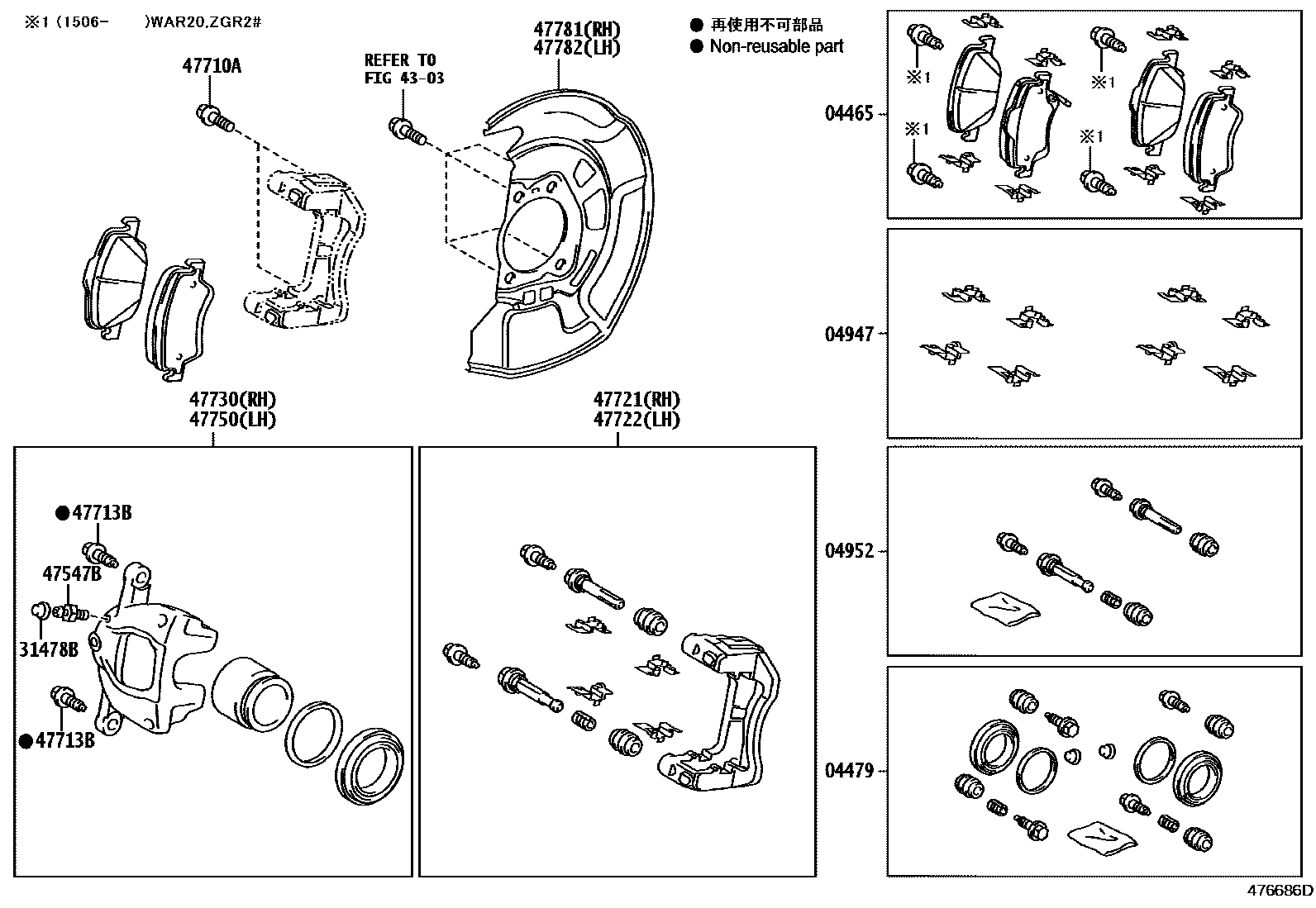

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-05260iAUR21¥0200902-201010

MARK JURID 672

sub04465-05300¥11,800

main04465-05300iAUR21¥11,800201011-201503

MARK TEXTAR T4146

sub04465-05301

main04465-0F010iZGR21..E;AUR20,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY¥12,600200902-201506

MARK AK NS378H

sub04465-0F011¥11,400

main04465-0F011iWAR20,ZGR2#¥11,400201506-201706

MARK AK NS378H

sub04465-0F012¥11,400

main04465-0F012iWAR20,ZGR2#¥11,400201706

MARK AK NS378H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02160iAUR2#,ZGR2#¥3,200200902-201503

main04478-02161iWAR20,ZGR2#¥3,200201503

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0F010iAUR2#,ZGR2#200902-201503

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02220iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY¥2,240200902-201503

main04952-02221iWAR20,ZGR2#¥2,030201503

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main90069-39001iAUR2#,ZGR2#¥170200902-201503

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main90069-39000iAUR2#,ZGR2#¥310200902-201503

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iAUR2#,ZGR2#¥160200902-201710

*12-1.25PX29.5-23

47713BBOLT(FOR FRONT DISC BRAKE CYLINDER)

main47715-05060iAUR2#,WAR20,ZGR2#¥750201211-201503

sub47715-28060¥620

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09430iAUR21200902-201503

sub47721-09431

main47721-09480iZGR21..RHD..CVT..ENTRY¥9,800200902-201503

main47721-09481iWAR20,ZGR2#¥8,100201503

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09150iAUR21200902-201503

sub47722-09151

main47722-09180iAUR20,WAR20,ZGR2#¥9,800200902-201503

main47722-09181iWAR20,ZGR2#201503

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02361iAUR20,ZGR2#¥37,000200902-201503

main47730-05110iAUR21200902-201503

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02361iZGR21..E;AUR20,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY¥37,000200902-201503

main47750-05110iAUR21200902-201503

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02150iAUR20,ZGR2#¥1,400200902-201710

main47781-05060iAUR21200902-201503

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02150iAUR20,ZGR2#¥1,400200902-201710

main47782-05060iAUR21200902-201503

15 parts on this diagram · 2 diagrams in section
