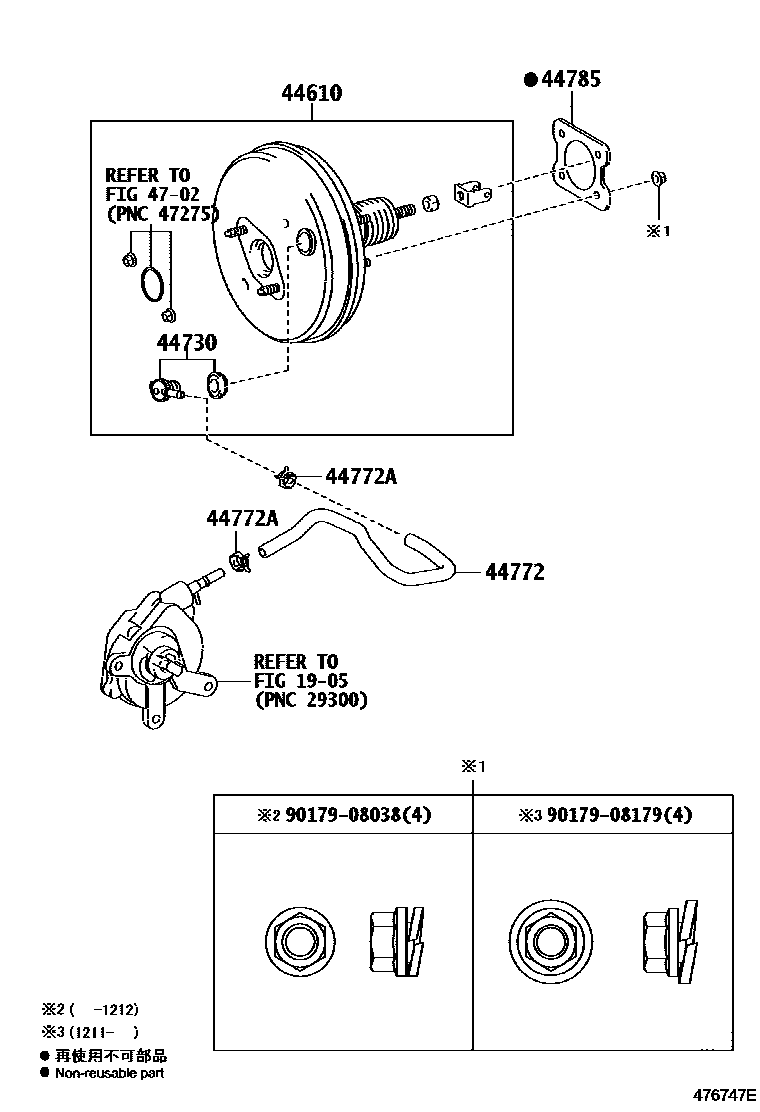

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1905

44610BOOSTER ASSY, BRAKE

main44610-09590iZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY200902-201208

main44610-09591iZGR2#..RHD201208-201506

sub44610-09D90

main44610-09600iAUR2#,ZGR2#..LHD200902-201208

sub44610-09601

main44610-09601iAUR2#,ZGR2#..LHD201208-201506

sub44610-09D70

main44610-09A00iWAR20..LHD201401-201506

sub44610-09D80

main44610-09B00iWAR20..RHD201401-201506

sub44610-09E00

main44610-09D70iZGR2#..LHD201506

main44610-09D80iWAR20..LHD201506

main44610-09D90iZGR2#..RHD201506

main44610-09E00iWAR20..RHD201506

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09020iAUR2#,ZGR2#¥1,430200902-201503

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12580iAUR2#,ZGR2#..LHD200902-201710

main44772-12620iZGR2#..RHD¥850200902-201710

main44772-12640iAUR2#..07S200902-201503

main44772-64010iWAR20..LHD201401-201710

main44772-64020iWAR20..RHD201401-201710

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-W0008iZGR21..RHD..CVT..ENTRY¥120200902-201503

main90467-16014iWAR20¥230201401-201503

44785GASKET, BRAKE BOOSTER

main44785-05020iAUR2#,ZGR2#¥640200902-201503

4702

9017908038

main90179-08038¥130

9017908179

main90179-08179¥200

9 parts on this diagram · 6 diagrams in section
