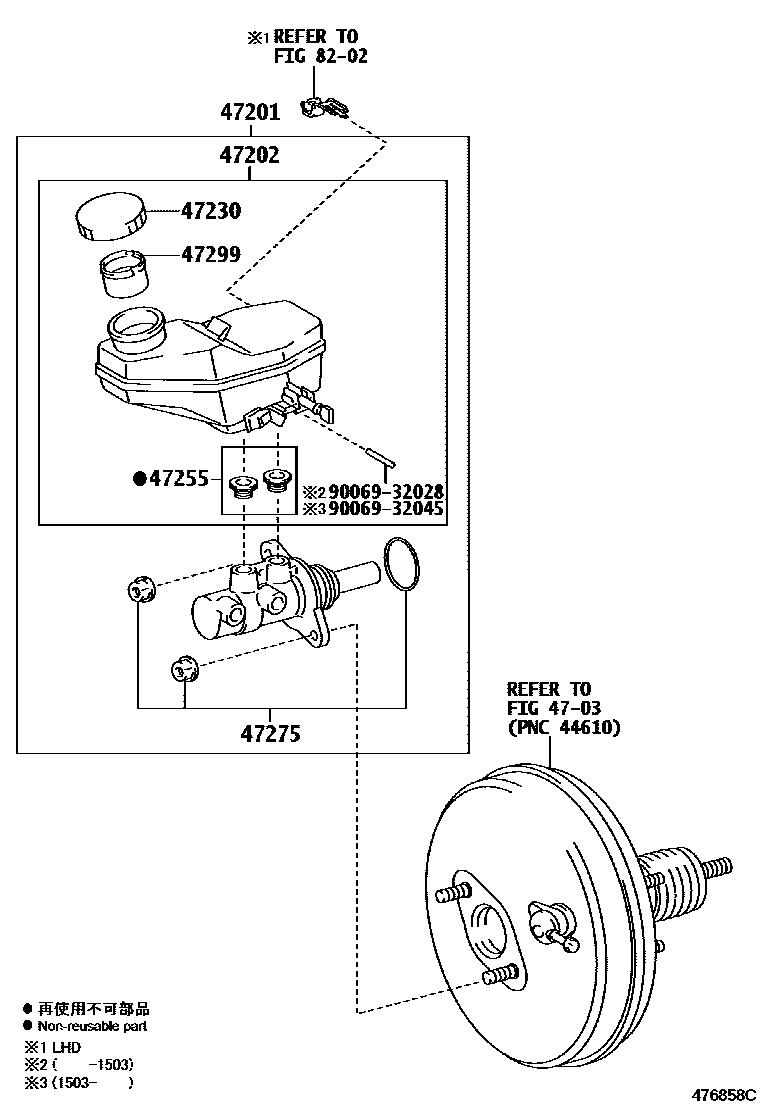

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09560iZGR21..RHD..CVT..ENTRY200902-201503

main47201-09570iAUR2#,WAR20,ZGR2#..LHD..(6F,6FC)200902-201503

main47201-09600iZGR21..LHD..CVT200902-201503

main47201-09810iWAR20,ZGR2#..LHD..6F201503

main47201-09820iZGR21..LHD..CVT201503

main47201-09830iWAR20,ZGR2#..RHD201503

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09090iAUR2#,ZGR2#..LHD..05S200902-201503

main47220-09100iZGR21..RHD..E;AUR2#,ZGR20..RHD;ZGR21..RHD..6F..ENTRY200902-201503

main47220-09120iZGR21..LHD..CVT200902-201503

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iAUR2#,ZGR2#200902-201503

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iAUR2#,WAR20,ZGR2#200902-201211

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iAUR2#,ZGR2#200902-201503

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iAUR2#,ZGR2#200902-201503

8202

9006932028

main90069-32028

9006932045

main90069-32045

10 parts on this diagram · 1 diagram in section
