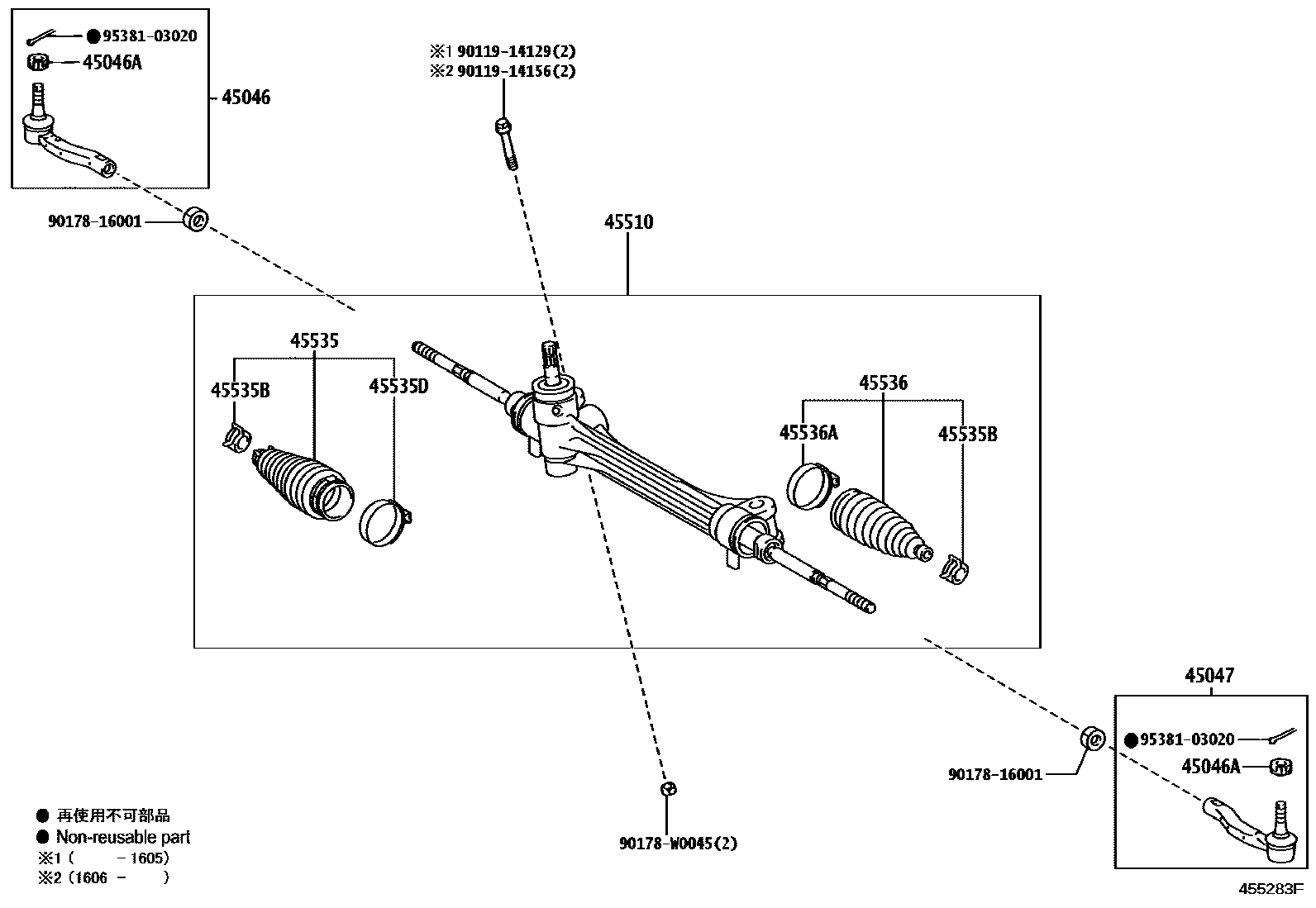

FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45510GEAR ASSY, STEERING
sub45510-0F060
TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD
sub45510-0F070
sub45510-0F080
TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD
sub45510-0F090
sub45510-0F061
TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD
sub45510-0F071
TIRE & DISK WHEEL-215/55R17 ALUMI
TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD
sub45510-0F081
TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD
sub45510-0F091
TIRE & DISK WHEEL-215/55R17 ALUMI
TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD
45535BOOT, STEERING RACK, NO.1
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536BOOT, STEERING RACK, NO.2
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
9011914129
main90119-14129
9011914156
main90119-14156
9017816001
main90178-16001
90178W0045
main90178-W0045
9538103020
main95381-03020
14 parts on this diagram · 2 diagrams in section
