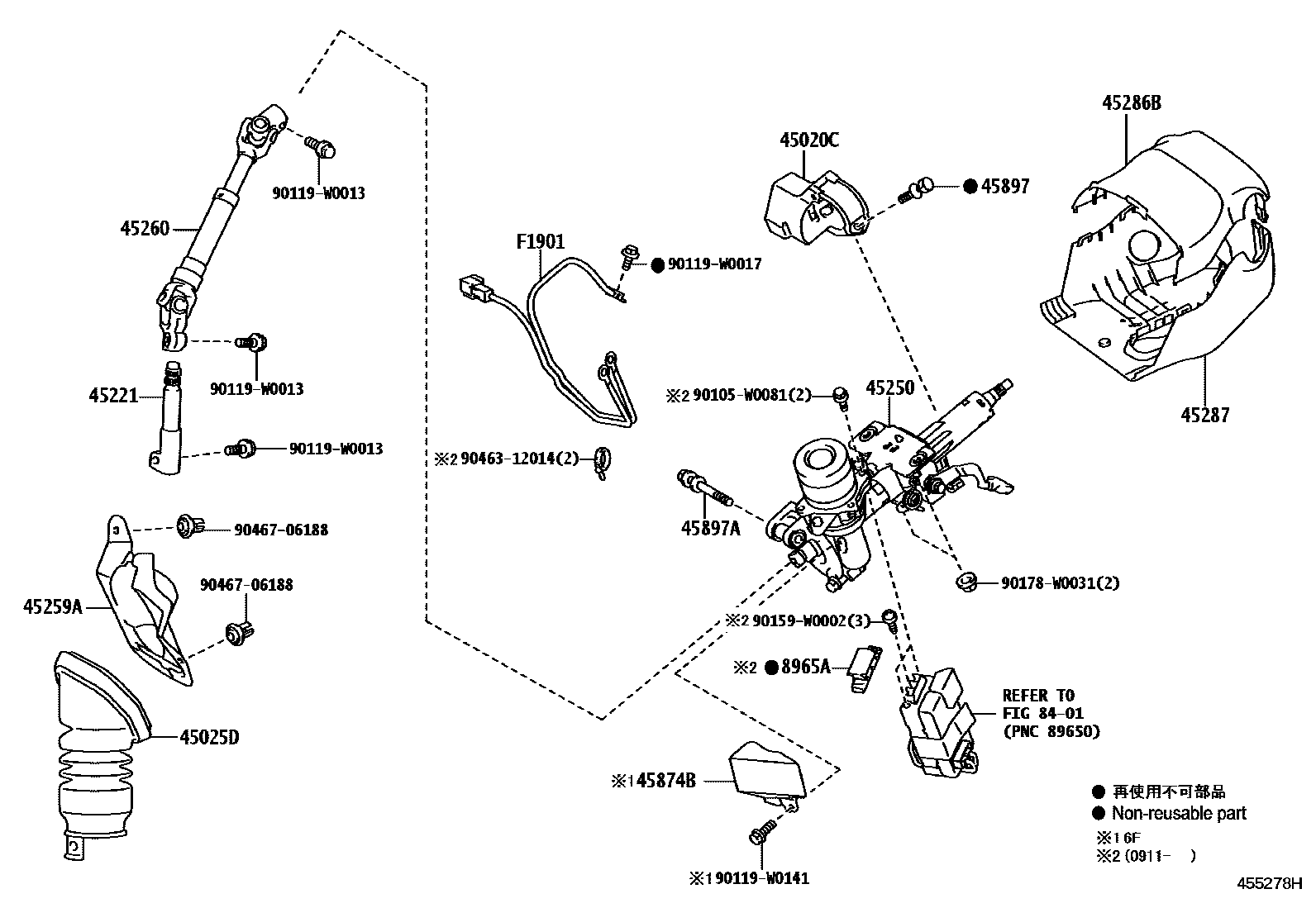

STEERING COLUMN & SHAFT

0001 1W(SMART ENTRY) 0002 1 0003 1W(SMART ENTRY) 0004 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02080iAUR2#,WAR20,ZGR2#..RHD200902-201503

main45025-02090iAUR2#,ZGR2#..LHD200902-201503

45221SHAFT, STEERING INTERMEDIATE

main45221-0F010iAUR2#,WAR20,ZGR2#200902-201503

45250COLUMN ASSY, STEERING

main45250-0F120iAUR2#,WAR20,ZGR2#..LHD200902-201502

sub45250-0F121

main45250-0F121iWAR20,ZGR2#..LHD201503

main45250-0F140iAUR2#,WAR20,ZGR2#..RHD200902-201502

sub45250-0F141

main45250-0F141iWAR20,ZGR2#..RHD201503

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02070iAUR2#,ZGR2#..RHD200902-201503

main45259-02080iAUR2#,ZGR2#..LHD200902-201503

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0F030iAUR2#,ZGR2#200902-201503

45286BCOVER, STEERING COLUMN, UPR

main45286-0F030-B0iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY200902-201601

DK.GRAY,TRIM1#

main45286-0F031-C0iWAR20,ZGR2#201601-201710

EU BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-0F030-B0iAUR2#,WAR20,ZGR2#200902-201601

DK.GRAY,TRIM1#

main45287-0F031-C0iWAR20,ZGR2#201601-201710

EU BLACK,TRIM1#

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-0F010iAUR2#,ZGR2#..RHD..6F200902-201503

45897BOLT, STEERING LOCK SET

main45897-12020iAUR2#,ZGR2#..LHD..6F200902-200911

main45897-12020iAUR21,ZGR21..LHD..(ATM,CVT)200902-201003

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main45897-12050iAUR2#,WAR20,ZGR2#200902-201503

45897ABOLT, TILT STEERING PAWL SET

main45897-20020iZGR21..RHD..CVT..ENTRY200902-201212

main90119-10981iAUR2#,WAR20,ZGR2#201301-201610

main90119-10981iWAR20,ZGR2#201610

(J)

main90119-W0215iWAR20,ZGR2#201610

(L)

8401

8965APROTECTOR, POWER STEERING COMPUTER

main8965A-0F010iAUR2#,WAR20,ZGR2#200911-201503

F1901WIRE SUB-ASSY, COMPUTER

mainF19010F010iAUR2#,WAR20,ZGR2#..LHD200902-201710

mainF19010F020iAUR2#,WAR20,ZGR2#..RHD200902-201710

90105W0081

main90105-W0081

90119W0013

main90119-W0013

90119W0017

main90119-W0017

90119W0141

main90119-W0141

90159W0002

main90159-W0002

90178W0031

main90178-W0031

9046312014

main90463-12014

9046706188

main90467-06188

22 parts on this diagram · 4 diagrams in section
