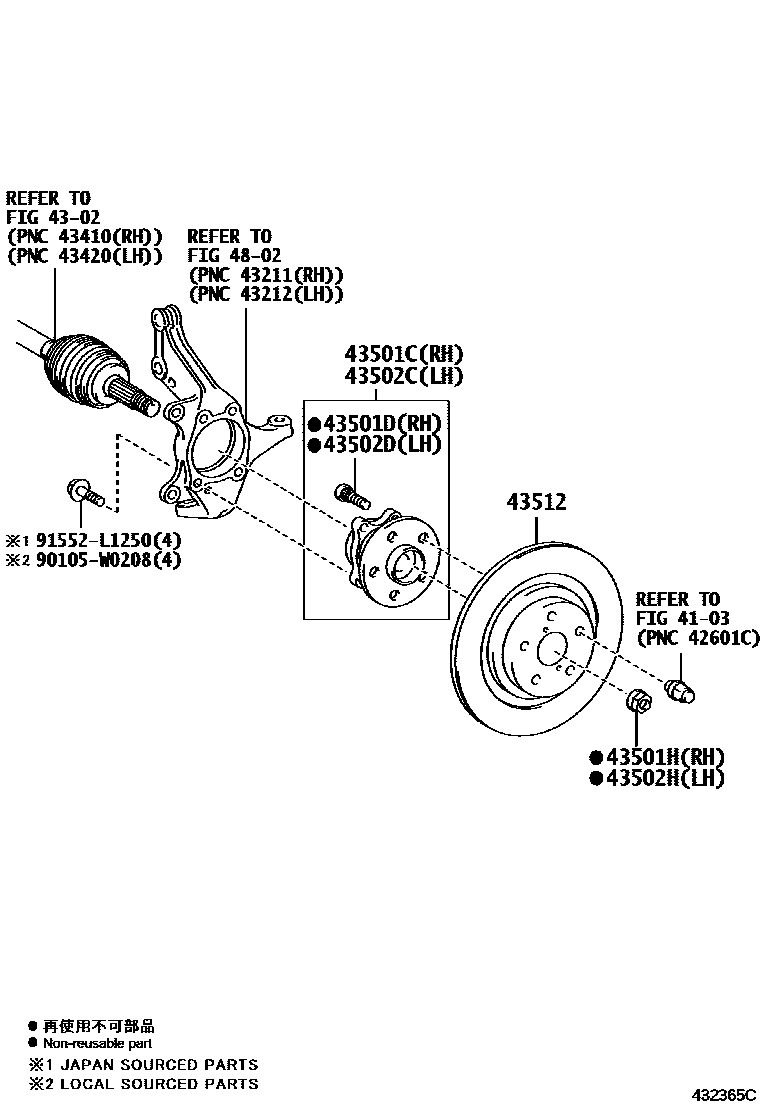

FRONT AXLE HUB

4103

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-02010iZGR2#201211-201503

main43550-02020iWAR20201503-201710

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iAUR2#,WAR20,ZGR2#201211-201503

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAUR2#,ZGR2#200902-201007

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-02010iZGR2#200902-201007

main43550-02020iAUR2#201007-201211

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iZGR21..RHD..CVT..ENTRY201007-201111

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iWAR20,ZGR2#201503

43512DISC, FRONT

main43512-05090×2iAUR21201211-201503

main43512-0F030×2iZGR21..E;AUR20,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211

4802

90105W0208

main90105-W0208

91552L1250

main91552-L1250

12 parts on this diagram · 1 diagram in section
