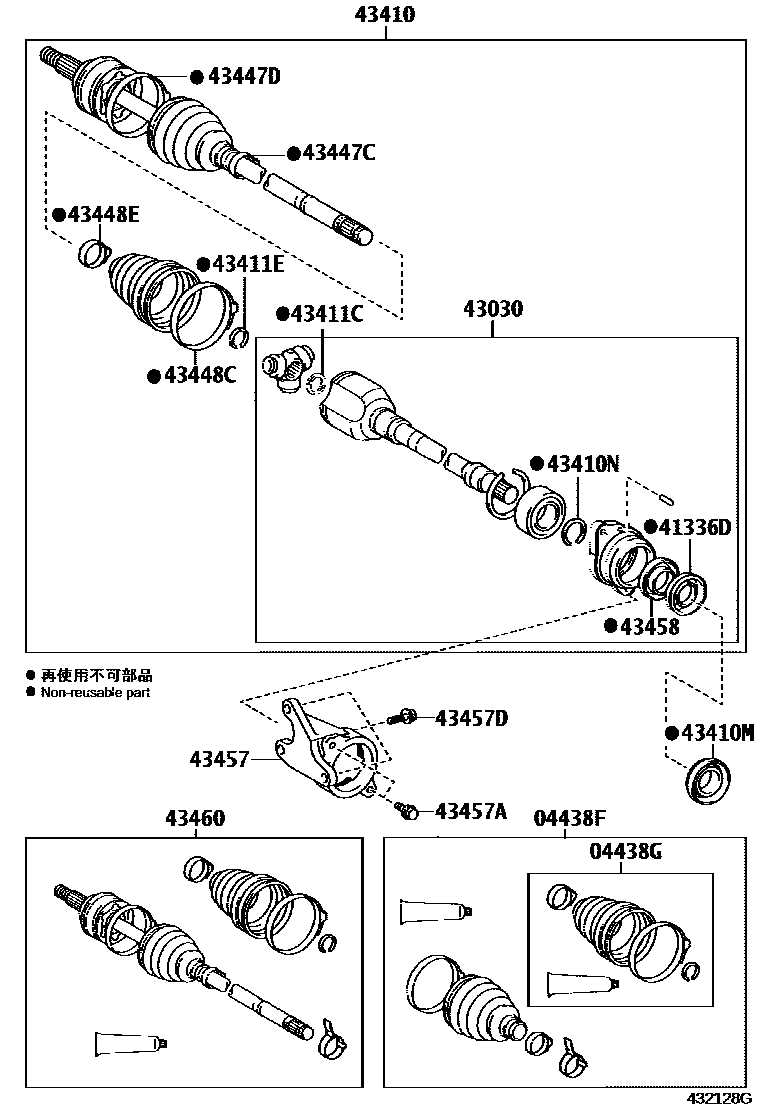

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1 0005 1LH 0006 1LH 0007 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0F010iAUR21200902-201007

main04427-0F011iAUR21201007-201503

main04428-0F040iAUR20200902-201503

main04428-0F050iWAR20201401-201503

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-05070iAUR21200902-201503

main04437-05110iZGR20;ZGR21..CVT200902-201503

main04437-05130iAUR20200902-201503

main04437-0F010iZGR21..6F200902-201503

main04438-0F050iWAR20201401-201503

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05080iAUR20,WAR20¥740200902-201710

main41336-05100iAUR21201007-201503

main41336-05140iZGR2#¥380200902-201710

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-05200iAUR21200902-201503

main43030-05230iAUR20200902-201503

main43030-0F020iWAR20201401-201710

main43040-05150iZGR20;ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY200902-201710

main43040-0F020iZGR21..6F200902-201710

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0F030iZGR20;ZGR21..CVT200902-201111

sub43410-0F031

main43410-0F031iZGR20;ZGR21..CVT201112-201710

main43410-0F040iZGR21..6F200902-201111

sub43410-0F041

main43410-0F041iZGR21..6F201112-201303

main43410-0F050iAUR21200902-201006

sub43410-0F051

main43410-0F051iAUR21201007-201503

main43410-0F070iAUR20200902-201111

sub43410-0F071

main43410-0F071iAUR20201112-201503

main43410-0F080iWAR20201401-201710

main43410-0F090iZGR21..6F201304-201710

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35055iZGR21..CVT¥400200902-201504

sub90311-35069¥400

main90311-35062iZGR2#..6F¥350200902-201011

sub90311-35065¥270

main90311-35065iZGR2#..6F¥270201011-201503

main90311-35069iZGR21..CVT¥400201505-201710

main90311-40029iAUR21..6FC¥400200905-201307

sub90311-40038¥400

main90311-40030iAUR2#..6F¥310200902-201102

sub90311-40036¥310

main90311-40036iAUR2#..6F¥310201102-201503

main90311-40038iAUR21..6FC¥400201307-201503

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52055iZGR2#¥90200902-201710

main90080-52106iAUR20¥160200902-201503

43411CRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER)

main43425-05110iAUR20200902-201503

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-05040iAUR21200902-201503

main43425-05080iZGR20;ZGR21..CVT¥60200902-201710

main43425-05120iZGR21..6F¥60200902-201710

main43425-0F050iWAR20201401-201710

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02110iAUR20¥310200902-201503

main42345-05230iWAR20¥320201401-201503

main42345-0F070iAUR21200902-201503

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02100iAUR20¥440200902-201503

main42345-05240iWAR20¥360201401-201503

main42345-08040iAUR21200902-201503

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02090iWAR20¥250200902-201710

main42345-05250iAUR21200902-201503

main42345-05340iZGR20;ZGR21..CVT¥270200902-201710

main42345-0F060iZGR21..6F200902-201710

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-05210iAUR21200902-201503

main42345-05300iAUR20,WAR20200902-201710

main42345-05320iZGR20;ZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY¥400200902-201710

main42345-0F050iZGR21..6F200902-201710

43457BRACKET, DRIVE SHAFT BEARING

main43457-05050iAUR2#..6F200902-201503

main43457-0F020iAUR21..6FC200905-201503

main43457-0F040iWAR20201401-201503

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361iAUR2#..6F¥110200902-201311

*10-1.25PX22-19.5

main90105-W0214iAUR2#¥100201311-201503

*10-1.25PX22-19.5

main90107-W0001iWAR20201401-201503

*10-1.5PX32.5-28

main90148-W0015iWAR20201503

L=39.0

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iAUR2#..6F¥100200902-201311

main90105-W0215iAUR2#201311-201503

43458COVER, FRONT DRIVE SHAFT DUST

main43458-05020iAUR20¥680200902-201503

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09U00iZGR20;ZGR21..CVT200902-201112

sub43460-09U01

main43460-09U01iZGR20;ZGR21..CVT201112-201710

main43460-09U10iZGR21..6F200902-201112

sub43460-09U11

main43460-09U11iZGR21..6F201112-201304

main43460-09X30iZGR21..6F201304-201710

sub43460-09U11

main43460-09X80iWAR20201401-201710

main43470-09Y00iAUR21200902-201007

sub43470-09Y01

main43470-09Y01iAUR21201007-201503

main43470-09Z90iAUR20200902-201112

sub43470-09Z91

main43470-09Z91iAUR20201112-201503

18 parts on this diagram · 7 diagrams in section
