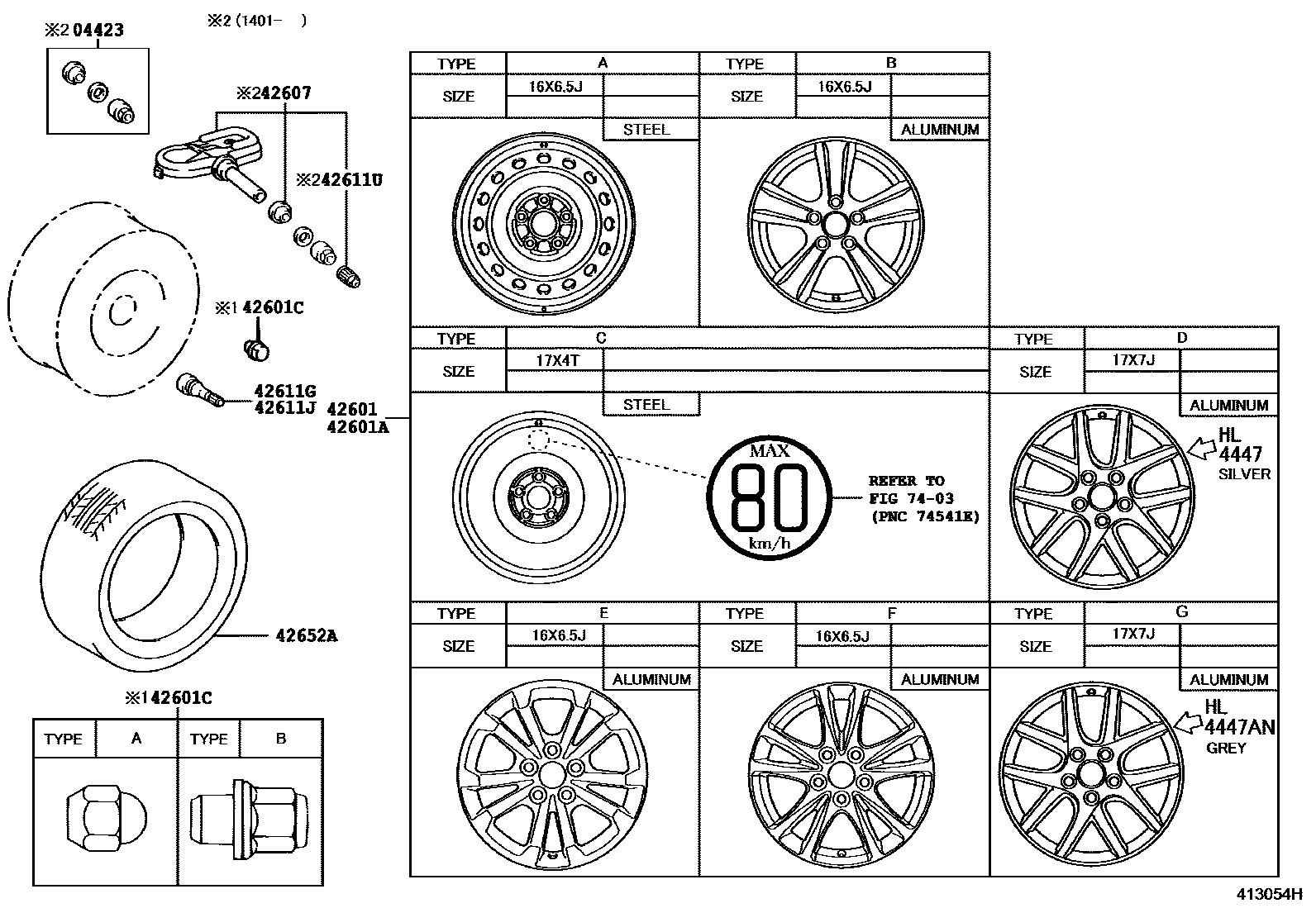

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
TIRE & DISK WHEEL-205/60R16 ALUMI
42601WHEEL, DISC
17X7J,#,TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD,TYPE D:REFER ILLUST.
17X7J,#,UKRAINE SPEC&TIRE & DISK WHEEL-215/55R17 ALUMI,TYPE I:REFER ILLUST.
16X6.5J,#,TIRE & DISK WHEEL-205/60R16 ALUMI ROUGH ROAD&SPARE TIRE-WITHOUT,TYPE B:REFER ILLUST.
17X7J,#,MOROCCO SPEC&TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD,TYPE G:REFER ILLUST.
16X6.5J, #,MOROCCO SPEC&TIRE & DISK WHEEL-205/60R16 ALUMI ROUGH ROAD,TYPE H:REFERILLUST.
17X7J,#,TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD,TYPE I:REFER ILLUST.
16X6.5J, #,UKRAINE SPEC&TIRE & DISK WHEEL-205/60R16 ALM RR AL1,TYPE M:REFER ILLUST.
17X7J,#,TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD,TYPE N:REFER ILLUST.
17X7J,#,TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD,TYPE N:REFER ILLUST.
main42611-YY380×4supersedes 42611-0F110iZGR21..E;AUR20,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211
16X6.5J,#,TIRE & DISK WHEEL-205/60R16 6.5J CSG-ALUMI,TYPE E:REFER ILLUST.
16X6.5J, #,TIRE & DISK WHEEL-205/60R16 ALUMI ROUGH ROAD,TYPE F:REFER ILLUST.
16X6.5J,#,TIRE & DISK WHEEL-205/60R16 CSG2,TYPE L:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE C:REFER ILLUST.
17X4T,TYPE C:REFER ILLUST.
16X6.5J,#,TURKEY SPEC&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
16X6.5J,#,TIRE & DISK WHEEL-205/60R16 6.5J ALUMI&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
WEST RUSSIA SPEC&TIRE & DISK WHEEL-205/60R16 ALUMI&WHEEL CAP-WITHOUT,TYPE B:REFERILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
TIRE & DISK WHEEL-215/55R17 ALUMI
42611GVALVE (FOR TUBELESS TIRE)
SLOVAKIA SPEC&TIRE & DISK WHEEL-215/55R17 7.0J ALUMI&SPARE TIRE-GROUND TIRE
42611JVALVE (FOR TUBELESS TIRE SPARE)
SLOVAKIA SPEC&TIRE & DISK WHEEL-215/55R17 7.0J ALUMI&SPARE TIRE-GROUND TIRE
42611UCAP, TIRE VALVE
TIRE & DISK WHEEL-215/55R17 ALUMI
42652ATIRE (FOR SPARE)
T145/70D17,*B/S,SPARE TIRE-T145/70D17
7403
10 parts on this diagram · 3 diagrams in section
