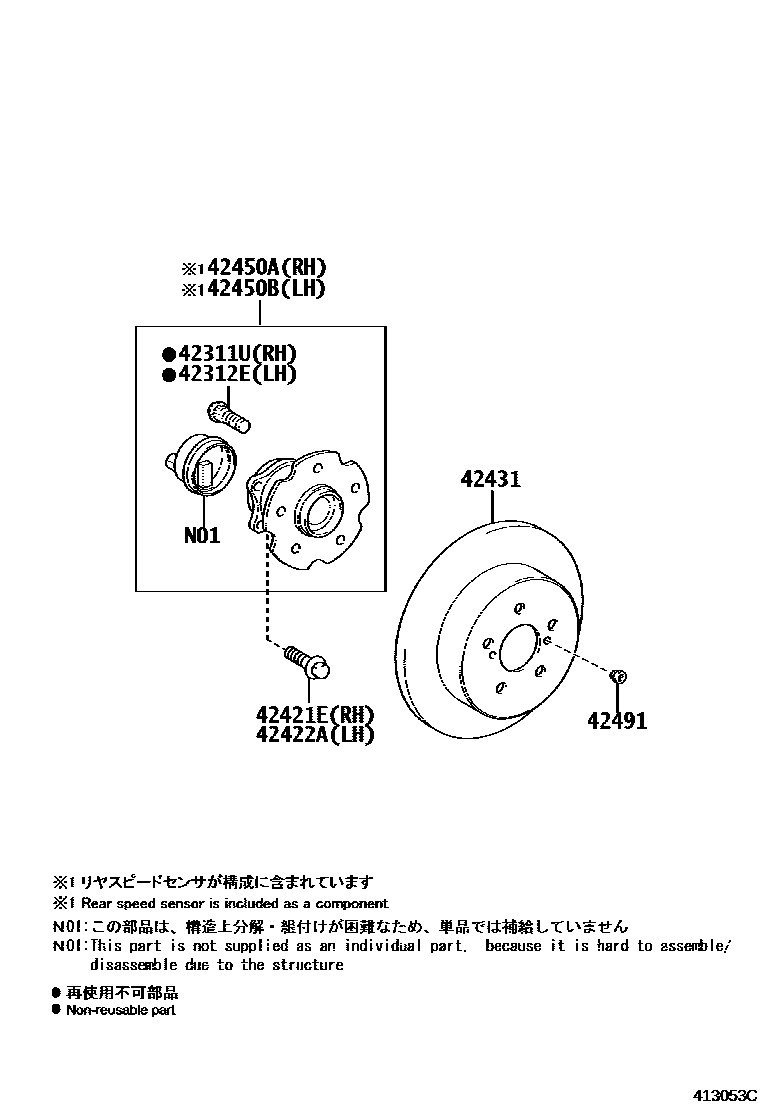

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iAUR2#,ZGR2#¥240200902-201503

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iAUR2#,ZGR2#¥240200902-201503

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iAUR2#,ZGR2#¥160200902-201503

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iAUR2#,ZGR2#¥160200902-201503

42431DISC, REAR

main42431-0F020iAUR2#,ZGR2#200902-201503

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-0F020iAUR2#,ZGR2#200902-201411

sub42450-0F021

main42450-0F021iAUR2#,WAR20,ZGR2#201412-201503

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-0F020iAUR2#,ZGR2#200902-201411

sub42450-0F021

main42450-0F021iAUR2#,WAR20,ZGR2#201412-201503

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-05010iAUR2#,ZGR2#¥140200902-201503

8 parts on this diagram · 1 diagram in section
