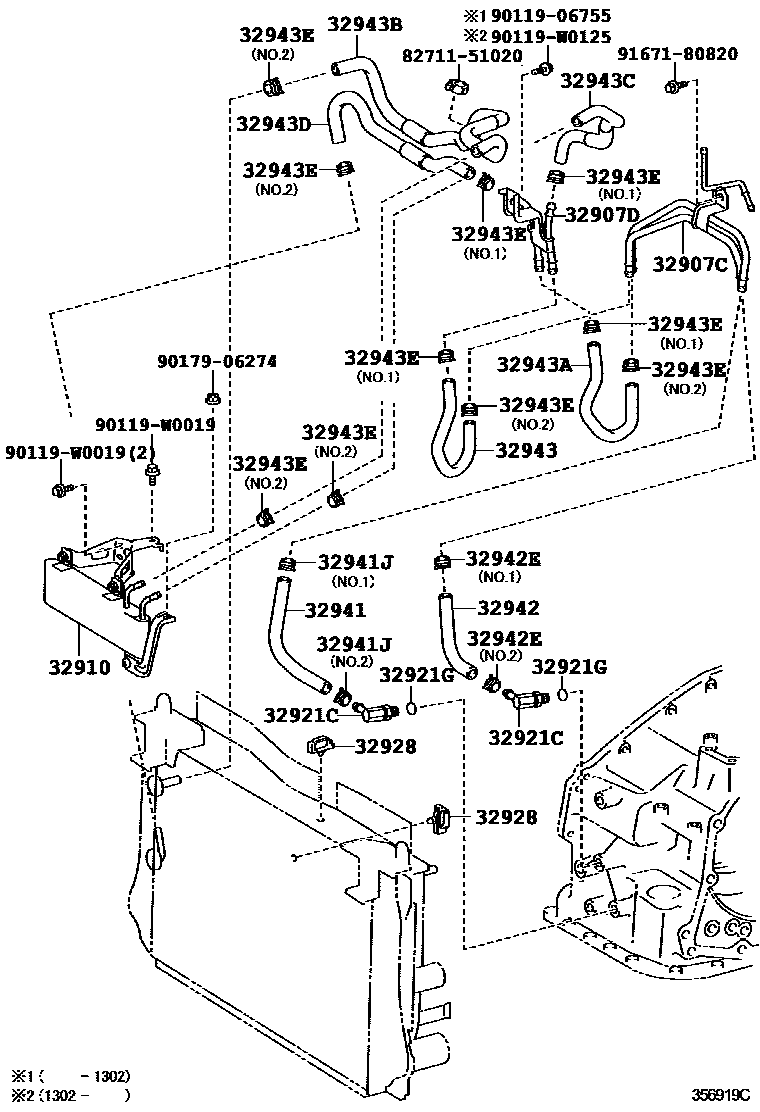

OIL COOLER & TUBE (ATM)

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-20090iAUR21..6FC201007-201211

32907DTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2

main32907-20100iAUR21..6FC200905-201007

32910COOLER ASSY, OIL

main32910-64010iAUR21..6FC200905-201007

main32910-64020iAUR21..6FC201211

32921CUNION(FOR OIL COOLER TUBE)

main90407-14032×2iAUR21..6FC200905-201007

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iAUR21..6FC201007-201108

main90301-11031×2iAUR21..6FC201212

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-34030×2iAUR21..6FC200905-201007

32941HOSE, OIL COOLER INLET, NO.1

main32941-20340iAUR21..6FC201007-201211

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAUR21..6FC200905-201007

NO.2

main90467-16022iAUR21..6FC200905-200912

NO.1

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-20170iAUR21..6FC200905-201007

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iAUR21..6FC200905-201007

NO.2

main90467-16022iAUR21..6FC200905-200912

NO.1

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-20200iAUR21..6FC200905-201007

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-20210iAUR21..6FC200905-201007

32943BHOSE, TRANSMISSION OIL COOLER

main32943-20240iAUR21..6FC201007-201211

32943CHOSE, TRANSMISSION OIL COOLER, NO.3

main32943-20220iAUR21..6FC201007-201211

32943DHOSE, TRANSMISSION OIL COOLER, NO.4

main32943-20230iAUR21..6FC201211

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×6iAUR21..6FC200905-201007

NO.2

main90467-16022×4iAUR21..6FC200905-200912

NO.1

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020

9011906755

main90119-06755

90119W0019

main90119-W0019

90119W0125

main90119-W0125

9017906274

main90179-06274

9167180820

main91671-80820

22 parts on this diagram · 1 diagram in section
