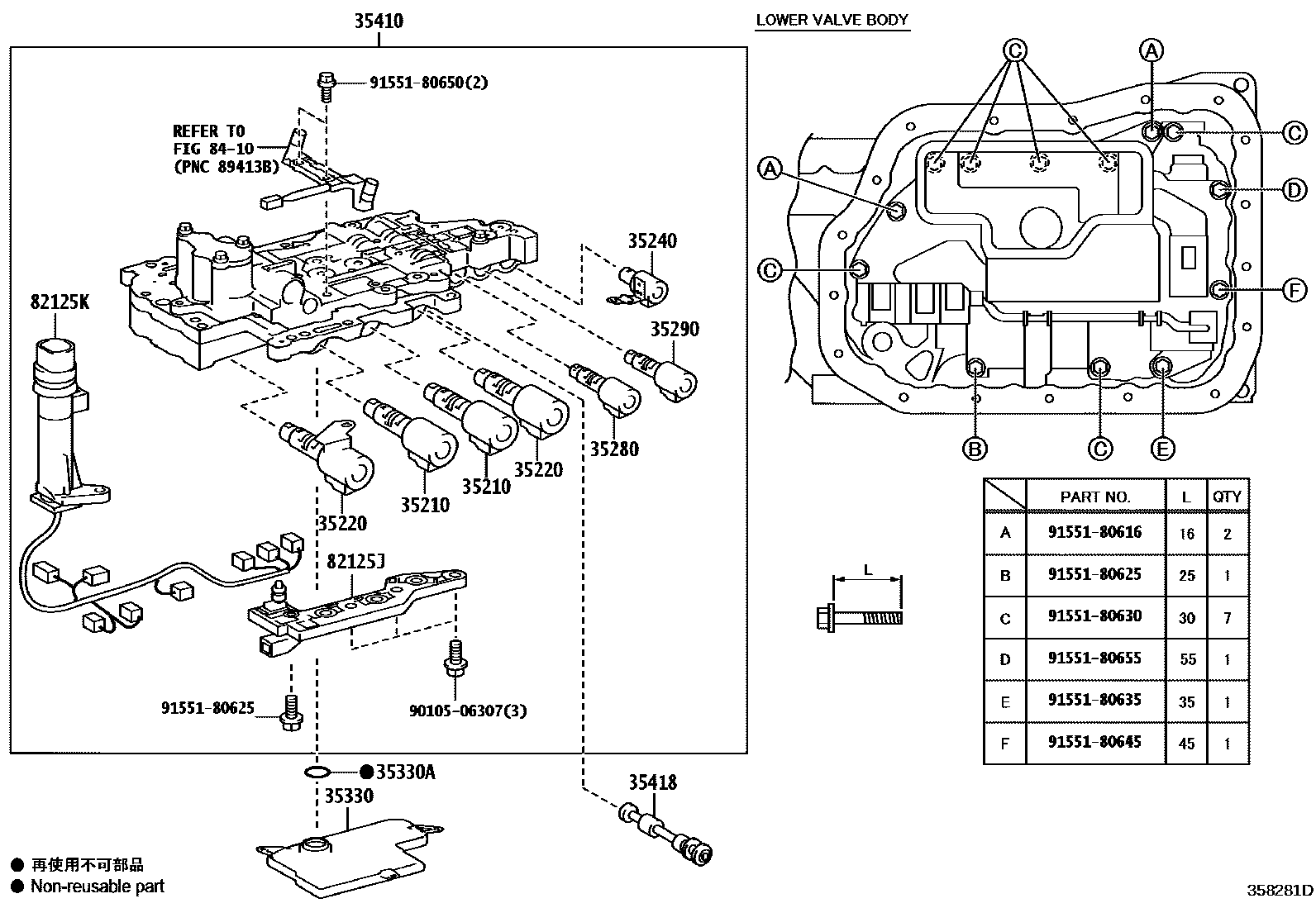

VALVE BODY & OIL STRAINER (ATM)

0001 1U660E 0002 1U660E

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030iAUR21..6FC¥7,000200905-201503

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-33040iAUR21..6FC¥7,000200905-201211

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-73010iAUR21..6FC¥11,100200905-201211

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-52040iAUR21..6FC¥7,700200905-201211

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040iAUR21..6FC¥7,400200905-201211

35330STRAINER ASSY, VALVE BODY OIL

main35330-33050iAUR21..6FC¥4,730200905-201308

sub35330-48020¥3,290

main35330-48020iAUR21..6FC¥3,290201308

35330ARING, O (FOR OIL STRAINER)

main90301-27010iAUR21..6FC¥170200905-201108

main90301-27015iAUR21..6FC¥190201108-201211

35410BODY ASSY, TRANSMISSION VALVE

main35410-33171iAUR21..6FC¥96,200200905-201307

main35410-33240iAUR21..6FC¥80,100201307

35418VALVE, MANUAL

main35418-73010iAUR21..6FC¥2,260200905-201503

82125JWIRE, TRANSMISSION

main82125-33090iAUR21..6FC¥2,830200905-201211

sub82125-33091¥2,830

main82125-33150iAUR21..6FC¥2,830201211

sub82125-33151¥2,360

82125KWIRE, TRANSMISSION

main82125-33100iAUR21..6FC¥3,550200905-201211

main82125-33160iAUR21..6FC¥3,540201211-201503

8410

9010506307

main90105-06307¥90

9155180616

main91551-80616¥60

9155180625

main91551-80625¥60

9155180630

main91551-80630¥60

9155180635

main91551-80635¥80

9155180645

main91551-80645¥130

9155180650

main91551-80650¥80

9155180655

main91551-80655¥80

20 parts on this diagram · 2 diagrams in section
