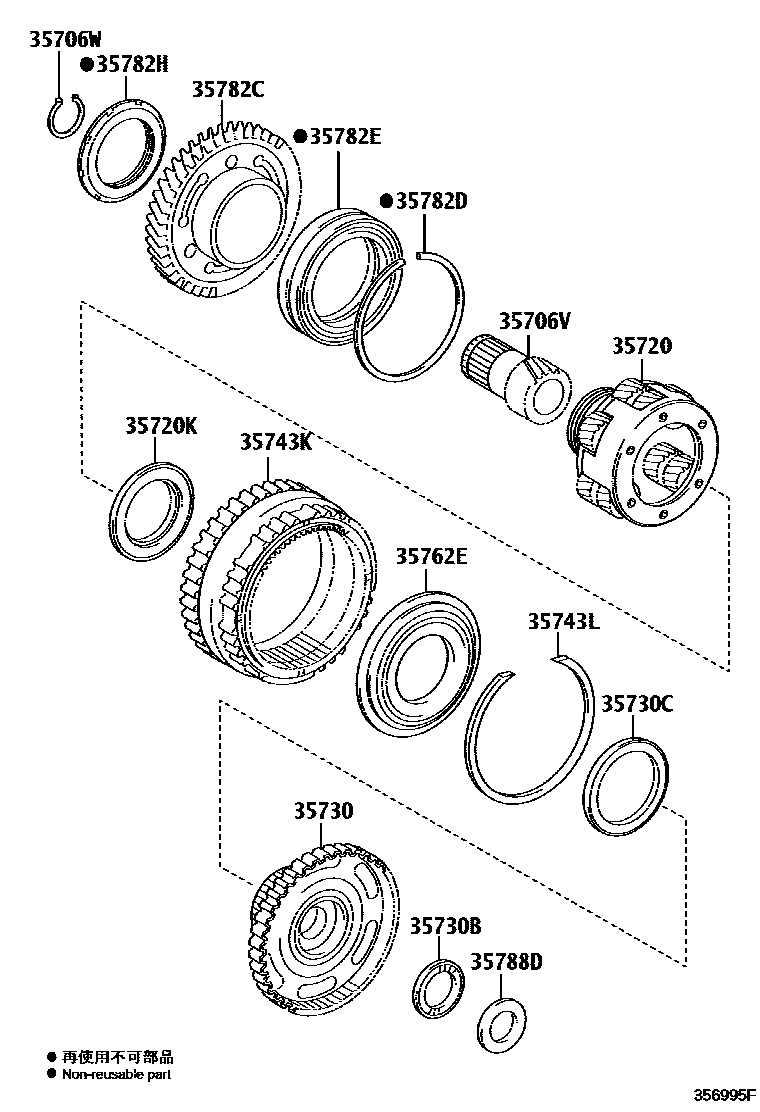

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-33020iAUR21..6FC200905-201211

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032iAUR21..6FC200905-201211

35720GEAR ASSY, FRONT PLANETARY

main35720-33061iAUR21..6FC200905-200909

sub35720-33062

main35720-33062iAUR21..6FC200909-201211

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62002iAUR21..6FC200905-201310

sub90374-62007

main90374-62007iAUR21..6FC201310

35730GEAR ASSY, REAR PLANETARY SUN

main35730-33021iAUR21..6FC200905-201211

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-28015iAUR21..6FC200905-201211

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001iAUR21..6FC200905-201211

35743KGEAR, PLANETARY RING

main35743-33030iAUR21..6FC200905-201211

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108iAUR21..6FC200905-201211

35762EFLANGE, PLANETARY RING GEAR

main35762-33020iAUR21..6FC200905-201211

35782CGEAR, COUNTER DRIVE

main35782-33030iAUR21..6FC200905-200908

sub35782-33031

main35782-33031iAUR21..6FC200908-201211

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-99110iAUR21..6FC200905-201402

main90520-99154iAUR21..6FC201402

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90369-72001iAUR21..6FC200905-201402

sub90369-72002

main90369-72002iAUR21..6FC201402

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001iAUR21..6FC200905-201211

35788DRACE, THRUST BEARING, NO.3

main35788-33020iAUR21..6FC200905-201211

15 parts on this diagram · 1 diagram in section
