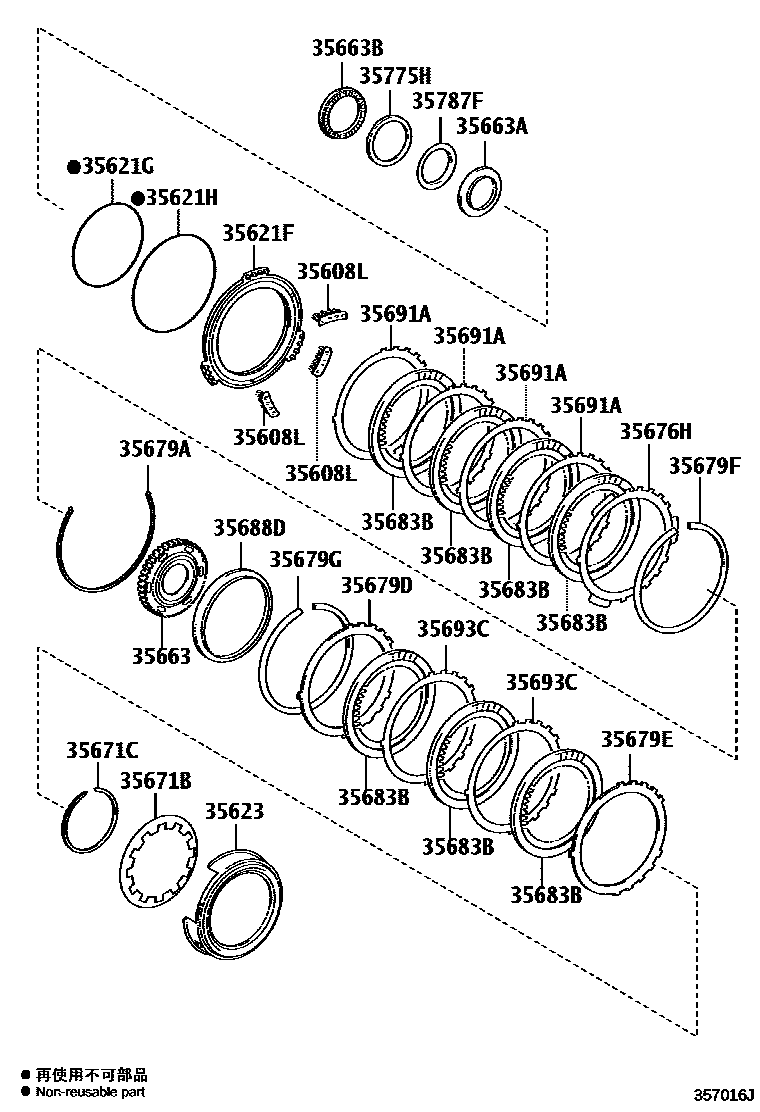

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35621FPISTON, BRAKE, NO.1
35621GRING, O (FOR BRAKE PISTON INNER)
35621HRING, O (FOR BRAKE PISTON OUTER)
35623PISTON, BRAKE, NO.3
35663HUB, BRAKE NO.3
35663ABEARING, THRUST NEEDLE ROLLER, NO.1
35663BBEARING, THRUST NEEDLE ROLLER, NO.2
35671BSPRING, BRAKE PISTON RETURN
35671CRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35676HFLANGE, BRAKE, NO.1
T=3.0,MARK 30
T=3.1,MARK 31
T=3.2,MARK 32
T=3.3,MARK 33
T=3.4,MARK 34
T=3.5,MARK 35
T=3.6,MARK 36
35679ARING, HOLE SNAP(FOR BRAKE FLANGE)
35679DFRANGE, BRAKE, NO.2
35679EFRANGE, BRAKE, NO.3
T=3.8,MARK 38
T=3.9,MARK 39
T=4.0,MARK 40
T=4.1,MARK 41
T=4.2,MARK 42
T=4.3,MARK 43
T=4.4,MARK 44
T=4.5,MARK 45
35679FRING, SNAP(FOR BRAKE FLANGE)
35679GRING, SNAP (FOR RAKE FLANGE NO.3)
35683BDISC, BRAKE, NO.3
35688DSTOPPER, BRAKE SNAP RING
35691APLATE, BRAKE, NO.1
35693CPLATE, BRAKE, NO.3
35775HRACE, THRUST BEARING, NO.5
35787FRACE, THRUST BEARING, NO.2
22 parts on this diagram · 1 diagram in section
