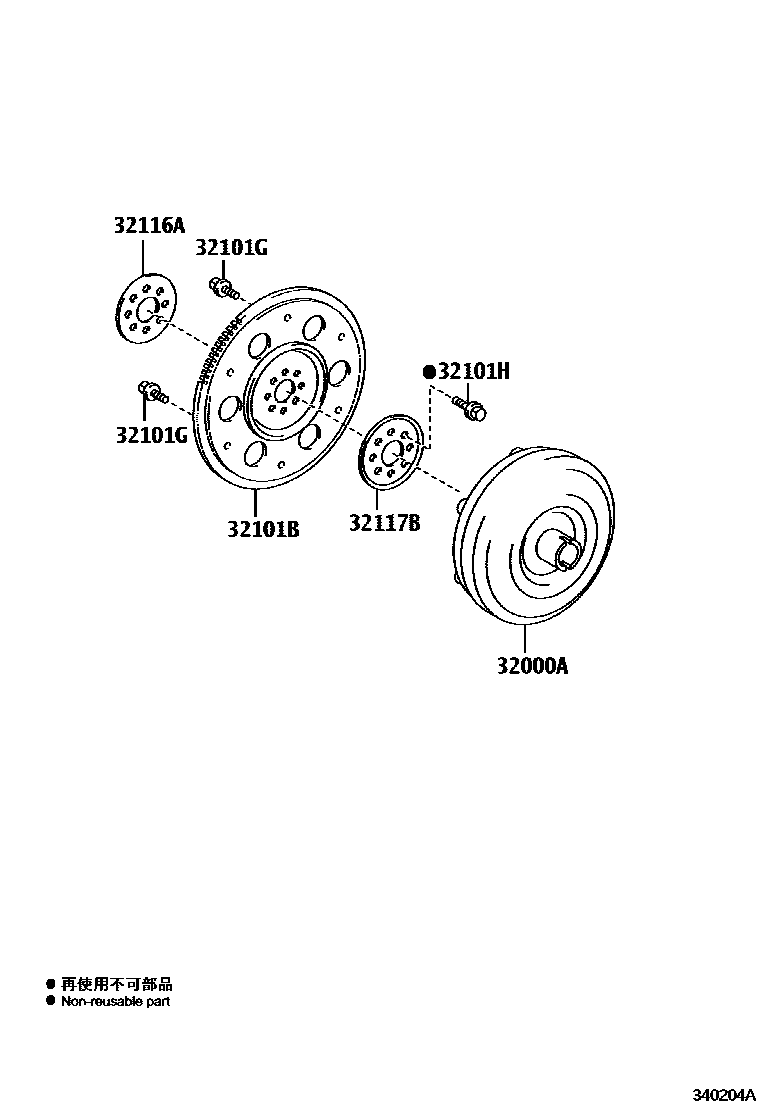

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12400iZGR21..RHD..CVT..ENTRY¥72,300200902-201503

main32000-12490iZGR21..CVT¥72,300201503-201710

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZGR21..CVT¥11,600200902-201503

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZGR21..CVT¥80200902-201503

*8-1.25PX12-8.4,BLACK

main90119-08498iZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY¥80200902-201503

*8-1.25PX12-8,YELLOW

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZGR21..CVT¥130201007-201503

main90105-10048iZGR21..CVT¥130200902-201007

(J)

main90105-A0022iZGR21..CVT200902-201003

(L)

sub90105-10048¥130

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZGR21..CVT¥610200902-201503

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZGR21..CVT¥800200902-201503

6 parts on this diagram · 1 diagram in section
