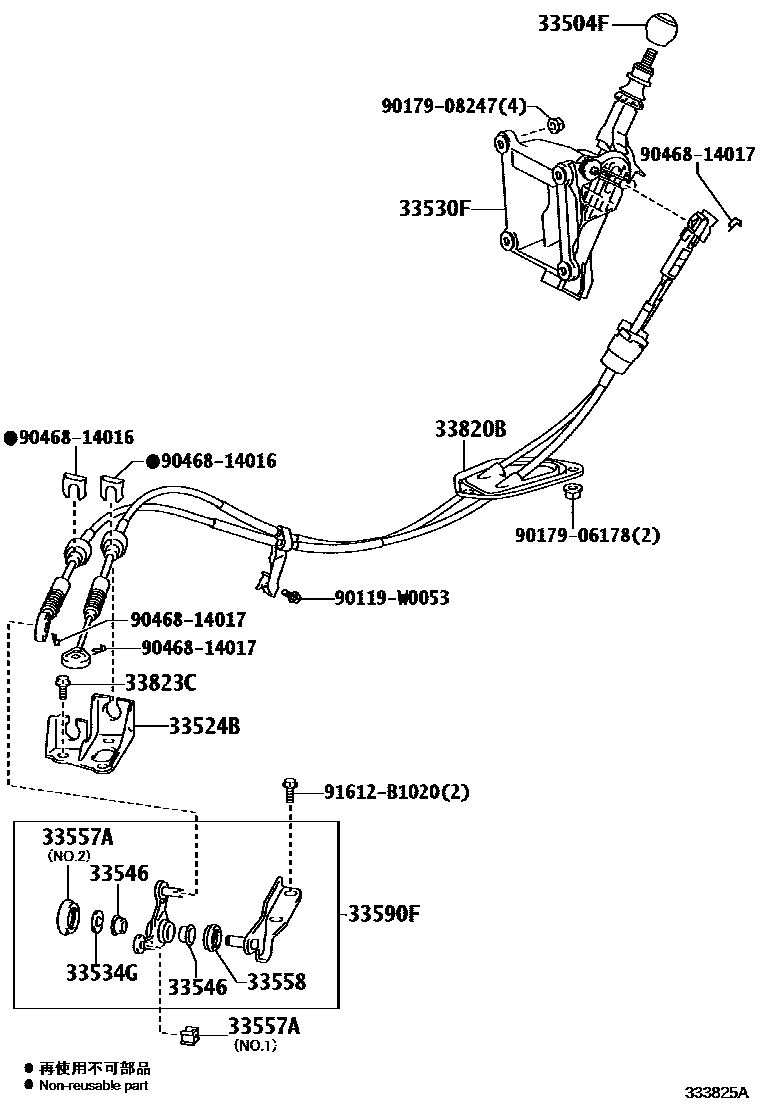

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02140-B1iAUR20,ZGR2#..6F..ENTRY200902-201001

DK.GRAY,TRIM1#

main33504-02141-B1iAUR20,ZGR2#..6F..ENTRY201007-201211

DK.GRAY,TRIM1#

main33504-02150-B1iAUR2#,ZGR2#..6F..E200902-201001

DK.GRAY,TRIM1#

main33504-02151-B1iAUR2#,ZGR2#..6F..E201002-201007

DK.GRAY,TRIM1#

main33504-05050iWAR20,ZGR2#..6F..E201601-201605

main33504-05051-C0iWAR20,ZGR2#..6F..E201605-201710

BLACK,TRIM1#

main33504-0F040-B0iAUR20,WAR20,ZGR20..ENTRY201211-201503

DK.GRAY,TRIM1#

main33504-0F050-B0iAUR2#,ZGR2#..6F..E201211-201401

DK.GRAY,TRIM1#

main33504-0F060-B0iZGR21..CVT..E201503-201601

DK.GRAY,TRIM1#

main33504-0F060-C0iZGR21..CVT..E201601-201710

BLACK,TRIM1#

main33504-0F070iAUR2#,WAR20,ZGR2#..6F..E201401-201503

main33504-12280-B0iZGR21..ENTRY201211-201503

DK.GRAY,TRIM1#

main33504-12290-B2iAUR21,ZGR21..(ATM,CVT)..E201007-201211

DK.GRAY & ORNAMENT SILVER,TRIM1#

main33504-12290-B3iAUR21,ZGR21..(ATM,CVT)..E201211-201401

DK.GRAY,TRIM1#

main33504-12510-C1iZGR21..ENTRY201601-201710

BLACK,TRIM1#

main33504-64010-B0iAUR21,ZGR21..(ATM,CVT)..E200902-201004

DK.GRAY,TRIM1#

33524BBRACKET, CONTROL CABLE

main33524-12090iAUR2#..6F200902-201007

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-02240iAUR2#,ZGR2#..6F201004-201007

main33530-0F020iWAR20,ZGR2#..6F201503-201601

main33530-0F021iWAR20,ZGR2#..6F201601

main33530-0F030iAUR2#,ZGR2#..6F200902-201004

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iAUR2#..6F200902-201007

33546BUSH(FOR CONTROL SHIFT LEVER RETAINER)

main33546-20020×2iAUR2#..6F200902-201007

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-20010iAUR2#..6F201007-201211

NO.2

main33557-33010iAUR2#,WAR20..6F201211-201503

NO.1

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iAUR2#..6F200902-201007

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-20040iAUR2#..6F200902-201007

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-02490iAUR2#..6F200902-201007

main33820-02680iZGR2#..6F200902-201007

main33820-0F080iWAR20201401-201503

main33820-12B40iZGR21..RHD..CVT..ENTRY201007-201111

main33820-12B41iZGR21..CVT201503

main33820-64010iAUR21..6FC200905-201007

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12190iZGR21..CVT200902-201007

main33823-12330iAUR21..6FC201211-201503

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079×2iAUR21,ZGR21..ATM,CVT201211-201503

(J)

main90119-W0016×2iZGR21..CVT201503

(L)

sub90119-08026

main90119-W0027×2iZGR21..LHD..CVT..ENTRY;AUR21,ZGR21..(ATM,CVT)..E201007-201211

main91611-G0820×3iAUR2#..6F200902-201007

90119W0053

main90119-W0053

9017906178

main90179-06178

9017908247

main90179-08247

9046814016

main90468-14016

9046814017

main90468-14017

91612B1020

main91612-B1020

17 parts on this diagram · 5 diagrams in section
