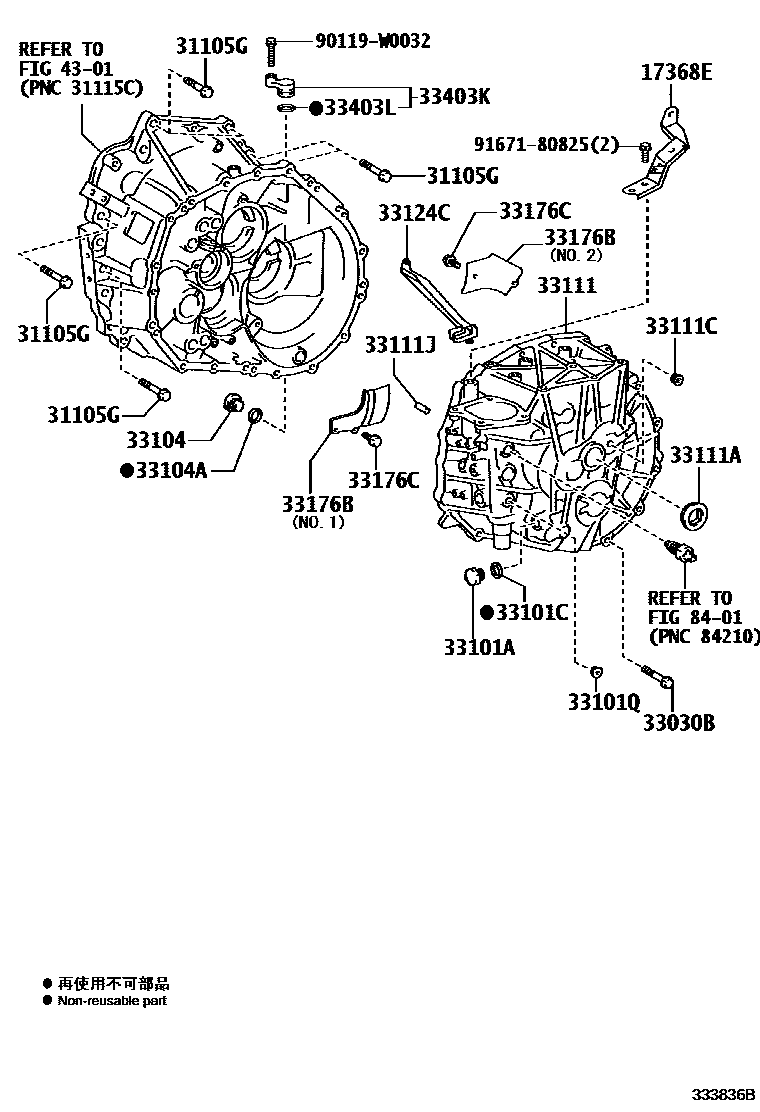

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1EA62,EA65 0002 1EC61,EC62 0003 1EA65

17368ESUPPORT, AIR TUBE

main17368-26030i1ADFTV,2ADFHV..AUR2#..6F200902-201503

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-W0133iWAR20201401-201503

*8-1.25PX40-22,NO.2

main90105-W0177iZGR2#..6F201310-201503

*10-1.25PX45-26,(L)

main90105-W0181iAUR2#..6F200902-201503

*10-1.25PX60-30

main90105-W0182iAUR2#..6F¥160200902-201503

*10-1.25PX65-30

main90107-WX001iWAR20201401-201503

*12-1.75PX100-40,NO.1

main90107-WX002iWAR20201401-201503

*12-1.75PX80-30,NO.3

main90119-W0162iAUR2#..6F200902-201503

*12-1.25PX75-30

main90119-W0163iAUR2#..6F200902-201503

*12-1.25PX60-30

main91552-81045iZGR2#..6F¥120201310-201503

*10-1.25PX45-26,(J)

main91552-81045iZGR2#..6F¥120200902-201310

*10-1.25PX45-26

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086iAUR2#..6F¥110200902-201503

*8-1.25PX45-27.5

main90105-W0209iZGR2#..6F201508

*8-1.25PX40-22,(L),*200

main91551-10840iZGR2#..6F¥80201508

*8-1.25PX40-22,(J),*200

main91551-10840iZGR2#..6F¥80200902-201508

*8-1.25PX40-22

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-14032iZGR2#..6F¥210200902-201710

NO.1

main90341-18033iAUR2#..6F¥190200902-201710

NO.2

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main12157-10010iZGR2#..6F¥100201210-201710

NO.2

main90430-14003iZGR2#..6F¥160200902-201710

NO.1

main90430-18008iWAR20¥110201007-201710

main90430-18008iAUR2#..6F¥110200902-201210

*199,NO.2

main90430-W0001iZGR2#..6F200902-201211

*200,NO.2

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-18019iAUR2#..6F¥210200902-201503

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAUR2#,WAR20..6F¥180200902-201503

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAUR2#..6F¥110200902-201503

33111CASE, MANUAL TRANSMISSION

main33111-02050iZGR2#..6F201210-201710

*202

sub33111-02052

sub33290-02020¥1,240

main33111-05040iZGR2#..6F200902-201003

*200

sub33111-05041

main33111-05041iZGR2#..6F201003-201210

*200

main33111-20220iZGR2#..6F200902-201003

*199

sub33111-20221¥43,700

main33111-20221iZGR2#..6F¥43,700201003-201307

*199

sub33111-12291¥36,300

main33111-42060iAUR2#..6F200902-201710

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iZGR2#..6F¥180200902-201307

main90341-42002iAUR2#..6F¥330200902-201503

33111CPLUG(FOR TRANSMISSION CASE)

main90341-12004iWAR20¥140200902-201503

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iAUR2#,WAR20..6F¥120200902-201503

L=23,OD=8

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-0D050iZGR2#..6F201103-201503

*202

main33124-20040iWAR20¥870200902-201503

main33124-20080iZGR2#..6F¥390200902-201007

*201,*202

main33124-20080iZGR2#..6F¥390201007-201307

*201

main33124-20080iZGR2#..6F¥390201007-201103

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-0D020iZGR2#..6F201008-201503

*202,NO.1

main33176-0D030iZGR2#..6F201008-201503

*202,NO.2

main33176-20010iAUR2#..6F¥280200902-201503

NO.1

main33176-20020iWAR20200902-201503

NO.2

main33176-20080iZGR2#..6F¥860201007-201307

*201,NO.1

main33176-20080iZGR2#..6F¥860201007-201008

*202,NO.1

main33176-20080iZGR2#..6F¥860200902-201007

*202,NO.1,*201,NO.1

main33176-20090iZGR2#..6F¥1,310201007-201307

*201,NO.2

main33176-20090iZGR2#..6F¥1,310201007-201008

*202,NO.2

main33176-20090iZGR2#..6F¥1,310200902-201007

*202,NO.2,*201,NO.2

33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)

main90105-W0035iZGR2#..6F¥130200902-201503

(L),*200

main91551-80816iZGR2#..6F¥80200902-201211

*199,(J),*200

main91551-80816iZGR21..6F¥80201211-201307

*199

main91551-80816iZGR2#..6F¥80201211-201503

(J),*200

main91611-B0616iAUR2#..6F¥110200902-201503

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iAUR2#,WAR20..6F¥1,180200902-201503

main33403-35230iZGR2#..6F¥1,180200902-201503

33403LRING, O

main96711-24018iAUR2#..6F¥160200902-201503

main96711-24030iZGR2#..6F¥170200902-201503

4301

8401

90119W0032

main90119-W0032¥100

9167180825

main91671-80825¥80

21 parts on this diagram · 3 diagrams in section
