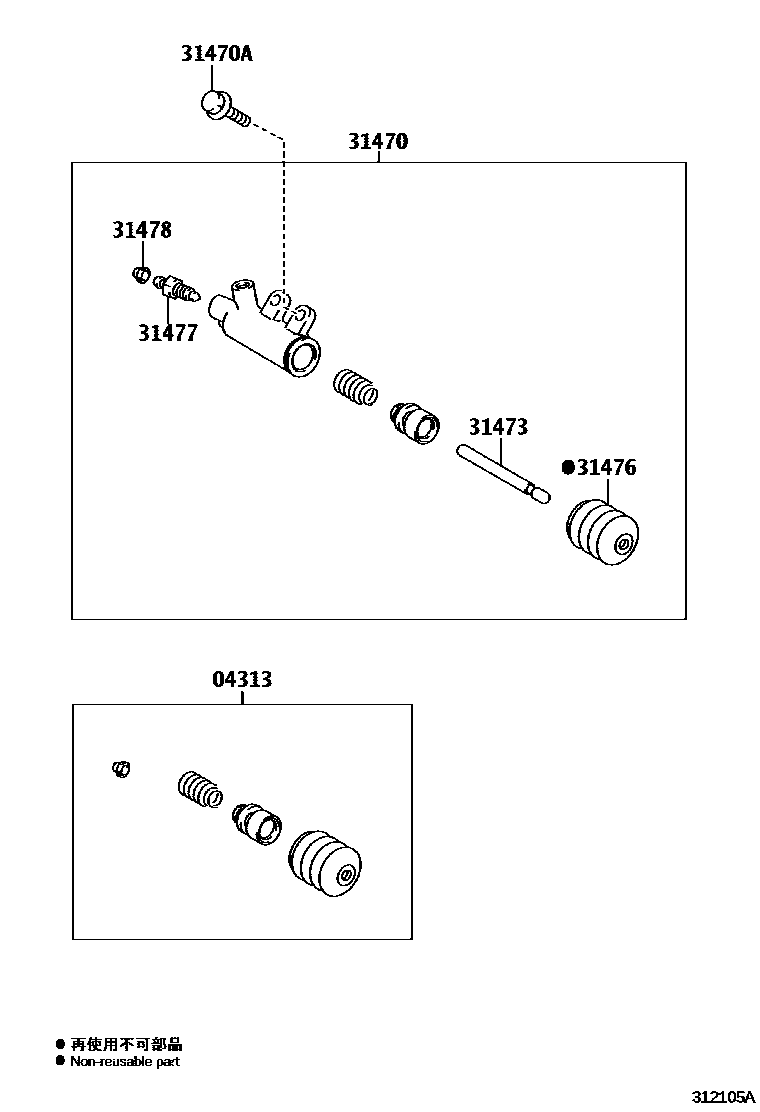

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-53010iAUR2#..6F200902-201503

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12190iAUR2#..6F200902-201503

main31470-64010iWAR20201401-201503

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAUR2#..6F200902-201503

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iAUR2#..6F200902-201503

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAUR2#..6F200902-201503

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAUR2#..6F200902-201503

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAUR2#,ZGR2#..6F200902-201503

7 parts on this diagram · 3 diagrams in section
