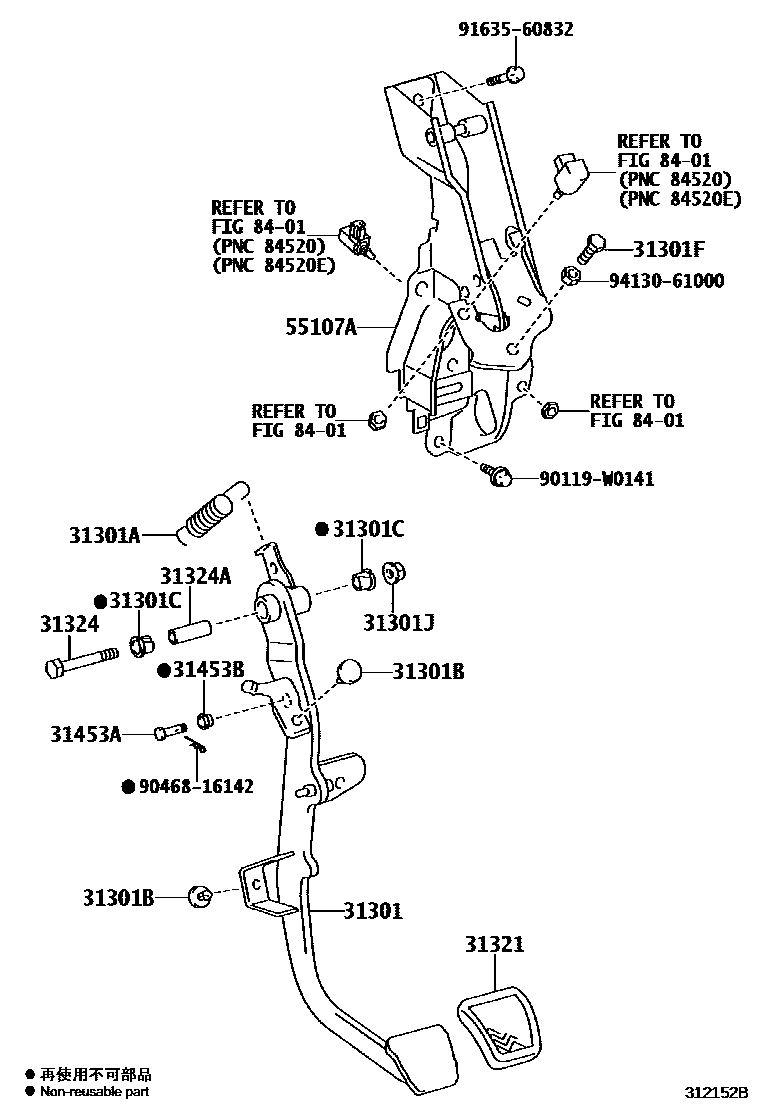

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0004 1 0005 1 0007 1 0009 1 0010 1 0012 1 0013 1 0014 1 0015 1 0016 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0F080iZGR20..LHD200902-201111

main31301-0F081iZGR20..LHD201111-201211

main31301-0F090iAUR2#..LHD..6F200902-201111

main31301-0F091iAUR21..6F201111-201503

main31301-0F140iZGR21..LHD..6F201105-201111

main31301-0F141iWAR20,ZGR2#..LHD..6F201111-201503

main31301-64010iAUR20..RHD200902-201310

main31301-64011iAUR20,WAR20..RHD201310-201503

main31301-64020iZGR20..RHD200902-201211

main31301-64030iZGR2#..RHD..6F201003-201310

main31301-64031iZGR2#..RHD..6F201310-201503

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iZGR20¥100200902-201211

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iAUR2#,ZGR2#..RHD..6F¥110200902-201503

main90541-W0002iWAR20,ZGR2#..LHD..6F200902-201503

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAUR2#,ZGR2#..6F¥120200902-201503

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAUR2#,ZGR2#..6F¥110200902-201503

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90179-10088iAUR2#,ZGR2#..6F¥100200902-201710

31321PAD, CLUTCH PEDAL

main31321-42010iAUR2#,ZGR2#..6F¥230200902-201503

31324SHAFT, CLUTCH PEDAL

main90101-10039iAUR2#,ZGR2#..RHD..6F¥160200902-201503

main90109-10167iAUR2#,ZGR2#..LHD..6F¥190200902-201503

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iAUR2#,ZGR2#..RHD..6F¥370200902-201503

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iWAR20,ZGR2#..6F¥130200902-201503

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iAUR2#,ZGR2#..6F¥110200902-201503

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0F060iZGR20..LHD200902-201111

main55107-0F061iZGR20..LHD201111-201211

main55107-0F070iAUR2#,ZGR21..LHD..6F200902-201111

main55107-0F071iAUR2#,WAR20,ZGR2#..LHD..6F201111-201503

main55107-64010iAUR2#,ZGR21..RHD..6F200902-201310

main55107-64011iWAR20,ZGR2#..RHD..6F201310-201503

main55107-64020iZGR20..RHD200902-201211

8401

90119W0141

main90119-W0141

9046816142

main90468-16142¥70

9163560832

main91635-60832¥80

9413061000

main94130-61000¥70

17 parts on this diagram · 12 diagrams in section
