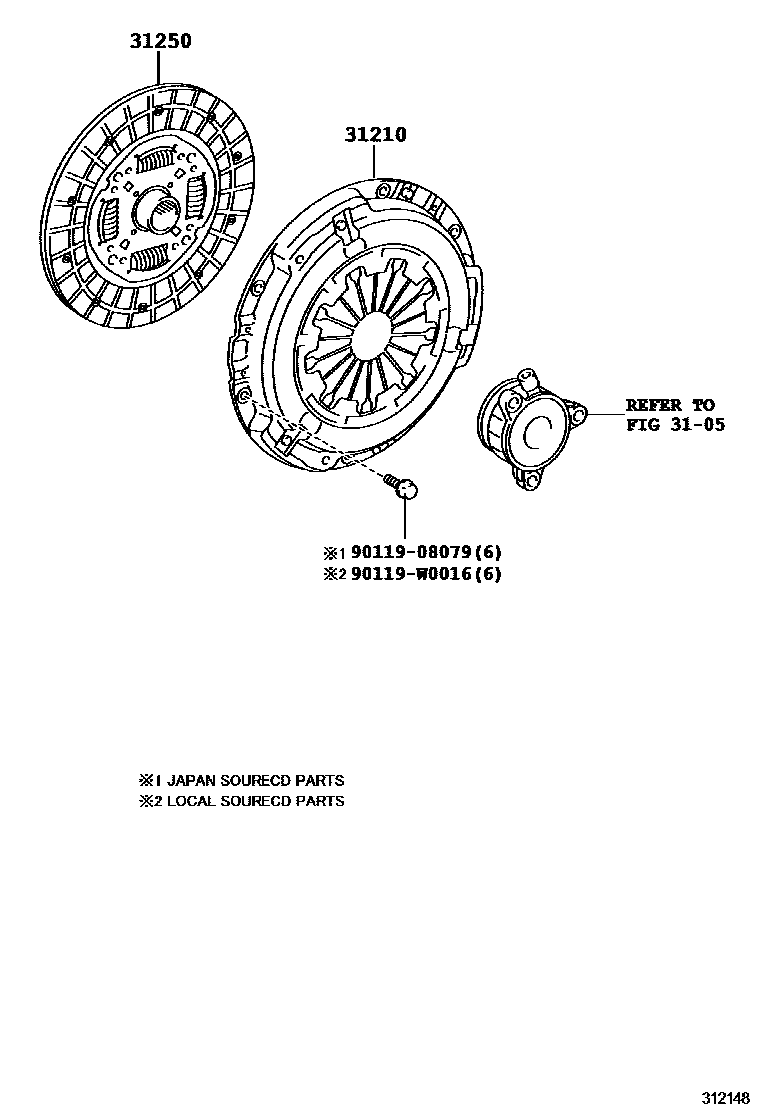

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

3105

31210COVER ASSY, CLUTCH

main31210-05120iZGR20200902-201210

sub31210-05121

main31210-05130iZGR21..6F200902-201504

sub31210-05131

main31210-05131iZGR2#..6F201502-201705

sub31210-05132

main31210-05132iZGR2#..6F201706

31250DISC ASSY, CLUTCH

main31250-05140iZGR2#..6F200902-201504

sub31250-05141

main31250-05141iZGR2#..6F201502-201710

9011908079

main90119-08079

90119W0016

main90119-W0016

5 parts on this diagram · 3 diagrams in section
