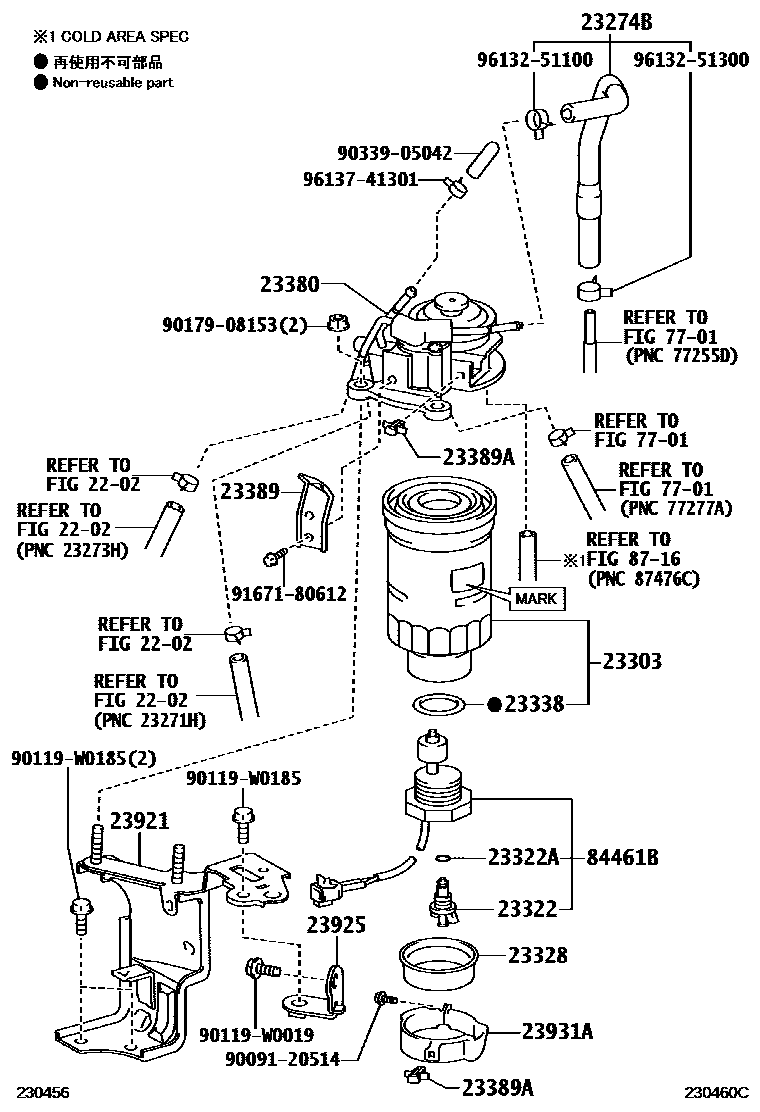

FUEL FILTER

0001 1 0002 1 0003 1 0004 1

2202

23274BHOSE, FUEL, NO.3

main23274-0T010i1ADFTV,2ADFHV..AUR2#201207-201503

main23274-0X010i1WW..WAR20201401-201708

main23274-0X011i1WW..WAR20201708

main23274-26060i1ADFTV,2ADFHV..AUR2#200902-201206

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-26160i1ADFTV,2ADFHV..AUR2#201003-201007

MARK 23390-26160

main23390-26160i1ADFTV,2ADFHV..AUR2#201007-201211

main23390-33060i1ADFTV,2ADFHV..AUR2#200902-201003

MARK 23390-33060

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1ADFTV,2ADFHV..AUR2#200902-201211

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1ADFTV,2ADFHV..AUR2#200902-201211

23328GASKET(FOR FUEL FILTER)

main23385-0X010i1WW..WAR20201401-201708

main23385-26020i1ADFTV,2ADFHV..AUR2#200902-201003

main23385-30160i1ADFTV,2ADFHV..AUR2#201003-201211

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1ADFTV,2ADFHV..AUR2#200902-201211

23380CAP ASSY, FUEL FILTER

main23380-0R051i1ADFTV,2ADFHV..AUR2#200902-201302

sub23380-0R052

sub23380-26170

main23380-0R052i1ADFTV,2ADFHV..AUR2#201302-201305

sub23380-26171

main23380-26171i1ADFTV,2ADFHV..AUR2#201305-201503

23389CLAMP, FUEL FILTER

main23389-17530i1WW..WAR20201708

main23389-26130i1ADFTV,2ADFHV..AUR2#200902-201211

23389ACLAMP, FUEL FILTER

main23389-27130i1ADFTV,2ADFHV..AUR2#200902-201211

23921SUPPORT, FUEL FILTER

main23921-0R010i1ADFTV,2ADFHV..AUR2#200902-201211

main23921-0X010i1WW..WAR20201401-201503

23925STAY, FUEL FILTER SUPPORT

main23925-0R010i1ADFTV,2ADFHV..AUR2#200902-201503

23931ACOVER, FUEL FILTER

main23931-26030i1ADFTV,2ADFHV..AUR2#201003-201302

sub23931-26031

main23931-26031i1ADFTV,2ADFHV..AUR2#201302

main23931-26040i1ADFTV,2ADFHV..AUR2#200902-201003

7701

84461BSWITCH, LEVEL WARNING

main84461-60080iAUR2#200902-201109

sub84461-60081

main84461-60081iAUR2#201110-201503

sub84461-60082

8716

9009120514

main90091-20514

90119W0019

main90119-W0019

90119W0185

main90119-W0185

9017908153

main90179-08153

9033905042

main90339-05042

9167180612

main91671-80612

9613251100

main96132-51100

9613251300

main96132-51300

9613741301

main96137-41301

25 parts on this diagram · 4 diagrams in section
