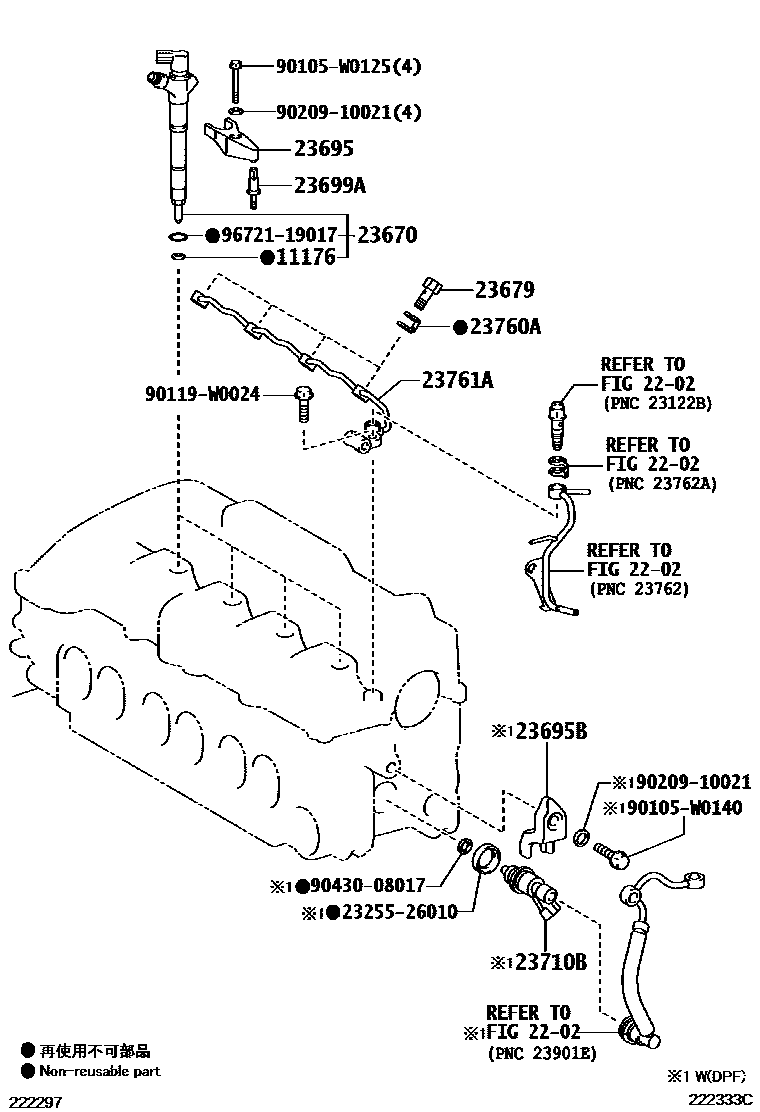

INJECTION NOZZLE

0001 1 0002 1 0003 1

11176SEAT, INJECTION NOZZLE

main11176-26020i1ADFTV,2ADFHV..AUR2#200902-201211

2202

23670INJECTOR ASSY

main23670-29115i1ADFTV..AUR20200902-201403

sub23670-29116

main23670-29116i1ADFTV..AUR20201403

main23670-29125i2ADFHV..AUR21..6FC200905-201403

sub23670-29126

main23670-29126i2ADFHV..AUR21..6FC201403

main23670-29135i2ADFHV..AUR21..6F200902-201403

sub23670-29136

main23670-29136i2ADFHV..AUR21..6F201403

main23670-WA010i1WW..WAR20201401

main23670-WA020i1WW..WAR20201503

23679SCREW, INJECTOR FOLLOW

main23679-26020i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F200902-201211

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0R021i1ADFTV,2ADFHV..AUR2#200902-201211

main23695-WA010i1WW..WAR20201401

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-26011i1ADFTV,2ADFHV..AUR2#200902-201211

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-0R021i1ADFTV,2ADFHV..AUR2#200902-201211

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-26011i1ADFTV,2ADFHV..AUR2#200902-201002

sub23710-26012

main23710-26012i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F201002-201211

23760PIPE ASSY, NOZZLE LEAKAGE

main23761-WA010i1WW..WAR20201401

main23761-WA021i1WW..WAR20201503

23760AGASKET

main90904-30008i1ADFTV,2ADFHV..AUR2#200902-201211

23761APIPE, NOZZLE LEAKAGE, NO.1

main23761-0R040i1ADFTV,2ADFHV..AUR2#200902-201211

(L)

main23761-26030i1ADFTV,2ADFHV..AUR2#200902-201211

(J)

2325526010VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1

main23255-26010

90105W0125

main90105-W0125

90105W0140

main90105-W0140

90119W0024

main90119-W0024

9020910021

main90209-10021

9043008017

main90430-08017

9672119017

main96721-19017
