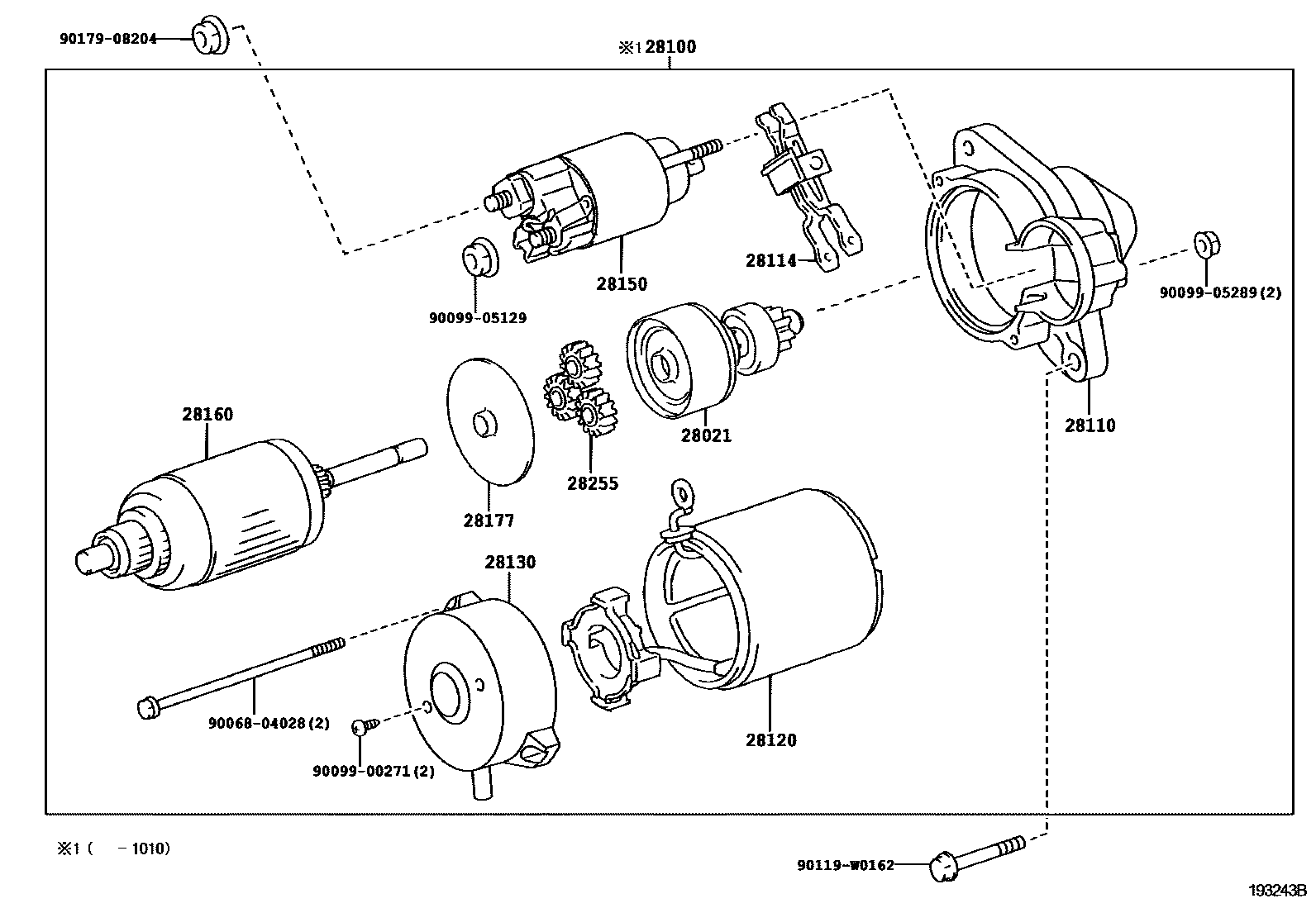

STARTER

0001 112V 2.0KW DENSO 0002 112V 2.0KW VALEO 0005 112V 1.1KW 0006 112V 1.1KW 0007 112V 2.0KW BOSCH

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0R010i1ADFTV,2ADFHV..AUR2#200902-201503

DENSO

28100STARTER ASSY

main28100-0R010i1ADFTV,2ADFHV..AUR2#200902-201010

12V 2.0KW,DENSO

sub28100-0R030

main28100-0R020i1ADFTV,2ADFHV..AUR2#..E200904-201009

12V 2.0KW,WIRELESS DOOR LOCK-WITH(SMART ENTRY),VALEO

sub28100-0R021

main28100-0R020i1ADFTV,2ADFHV..AUR2#200902-200904

12V 2.0KW,VALEO

sub28100-0R021

main28100-0R021i1ADFTV,2ADFHV..AUR2#201010-201503

12V 2.0KW,VALEO

main28100-0T030i1ZRFAE,2ZRFAE..ZGR2#200902-201503

12V 1.1KW

main28100-0X040i1WW..WAR20201401-201503

12V 2.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-0R010i1ADFTV,2ADFHV..AUR2#200902-201410

DENSO

main28110-0R020i1ADFTV,2ADFHV..AUR2#200902-200904

VALEO

sub28100-0R021

main28110-0R020i1ADFTV,2ADFHV..AUR2#..E200904-201010

WIRELESS DOOR LOCK-WITH(SMART ENTRY),VALEO

sub28100-0R021

main28110-0R021i1ADFTV,2ADFHV..AUR2#201010-201503

VALEO

main28110-0T030i1ZRFAE,2ZRFAE..ZGR2#200902-201503

main28110-0X040i1WW..WAR20201401-201503

28114PIN, STARTER DRIVE LEVER SET

main28114-0R010i1ADFTV,2ADFHV..AUR2#200902-201503

DENSO

28120YOKE ASSY, STARTER

main28120-0D130i1ZRFAE,2ZRFAE..ZGR2#200902-201503

main28120-0R020i1ADFTV,2ADFHV..AUR2#..E200904-201010

WIRELESS DOOR LOCK-WITH(SMART ENTRY),VALEO

sub28100-0R021

main28120-0R020i1ADFTV,2ADFHV..AUR2#200902-200904

VALEO

sub28100-0R021

main28120-0R021i1ADFTV,2ADFHV..AUR2#201010-201503

VALEO

main28120-0X040i1WW..WAR20201401-201503

main28120-38020i1ADFTV,2ADFHV..AUR2#200902-201410

DENSO

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0D130i1ZRFAE,2ZRFAE..ZGR2#200902-201503

main28130-0R010i1ADFTV,2ADFHV..AUR2#200902-201410

DENSO

main28130-0R020i1ADFTV,2ADFHV..AUR2#..E200904-201010

WIRELESS DOOR LOCK-WITH(SMART ENTRY),VALEO

sub28100-0R021

main28130-0R020i1ADFTV,2ADFHV..AUR2#200902-201503

VALEO

sub28100-0R021

main28130-0X040i1WW..WAR20201401-201503

28150SWITCH ASSY, MAGNET STARTER

main28150-0D130i1ZRFAE,2ZRFAE..ZGR2#200902-201503

main28150-0R020i1ADFTV,2ADFHV..AUR2#..E200904-201010

WIRELESS DOOR LOCK-WITH(SMART ENTRY),VALEO

sub28100-0R021

main28150-0R020i1ADFTV,2ADFHV..AUR2#200902-201503

VALEO

sub28100-0R021

main28150-0X040i1WW..WAR20201401-201503

main28150-37020i1ADFTV,2ADFHV..AUR2#200902-201410

DENSO

28160ARMATURE ASSY, STARTER

main28160-0D130i1ZRFAE,2ZRFAE..ZGR2#200902-201503

main28160-0G020i1ADFTV,2ADFHV..AUR2#200902-201410

DENSO

main28160-0R020i1ADFTV,2ADFHV..AUR2#200902-201503

VALEO

sub28100-0R021

main28160-0R020i1ADFTV,2ADFHV..AUR2#..E200904-201010

WIRELESS DOOR LOCK-WITH(SMART ENTRY),VALEO

sub28100-0R021

main28160-0X040i1WW..WAR20201401-201503

28177PLATE(FOR STARTER ARMATURE)

main28177-0G020i1ADFTV,2ADFHV..AUR2#200902-201503

DENSO

28255GEAR, PLANET

main28255-0G040i1ADFTV,2ADFHV..AUR2#200902-201503

DENSO

9006804028

main90068-04028

9009900271

main90099-00271

9009905129

main90099-05129

9009905289

main90099-05289

90119W0162

main90119-W0162

9017908204

main90179-08204

16 parts on this diagram · 5 diagrams in section
