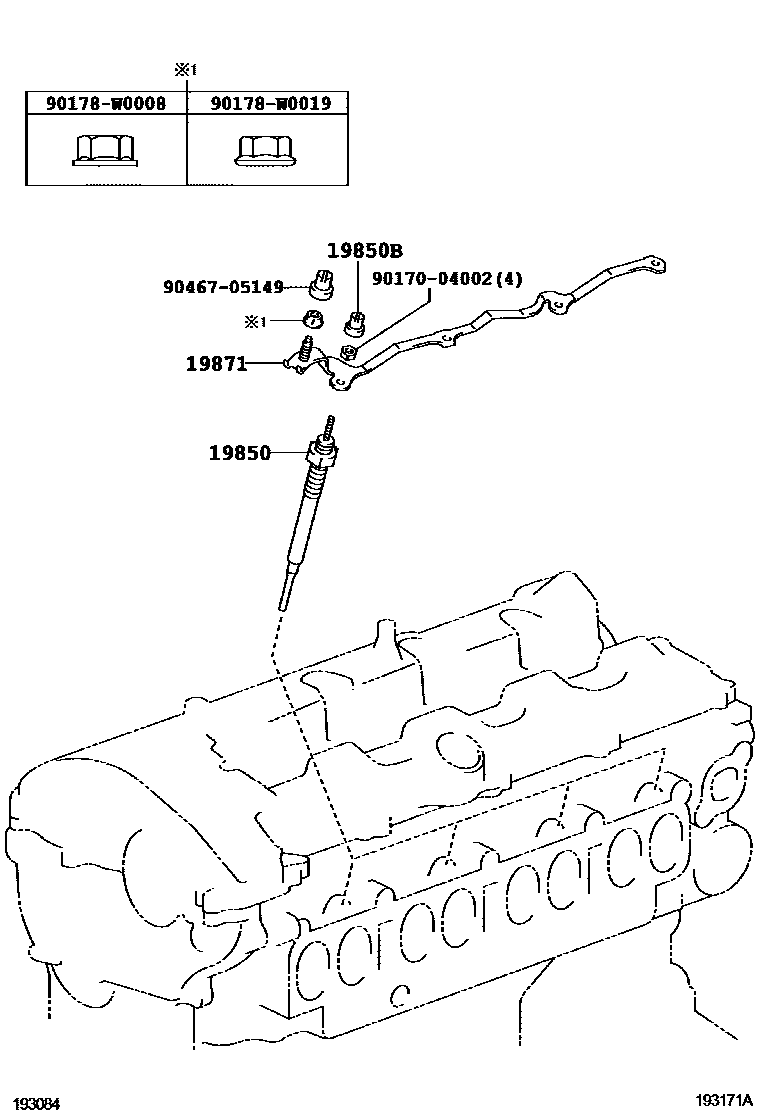

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0003 1EUROPE STEP4 0004 1EUROPE STEP5 0005 1 0006 1

19850PLUG ASSY, GLOW

main19850-0R022×4i1ADFTV,2ADFHV..AUR2#200902-201007

*BV-GV=12V-11V,(L)

main19850-26022×4supersedes 19850-26030i1ADFTV,2ADFHV..AUR2#200902-201007

*BV-GV=12V-11V,(J)

main19850-WA010×4i1WW..WAR20201401

main19850-WA020×4i1WW..WAR20201503

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4i1ADFTV,2ADFHV..AUR2#201007-201211

19871CONNECTOR, GLOW PLUG NO.1

main19871-26010supersedes 19871-0R010i1ADFTV,2ADFHV..AUR2#200902-201007

9017004002

main90170-04002

90178W0008

main90178-W0008

90178W0019

main90178-W0019

9046705149

main90467-05149

7 parts on this diagram · 5 diagrams in section
