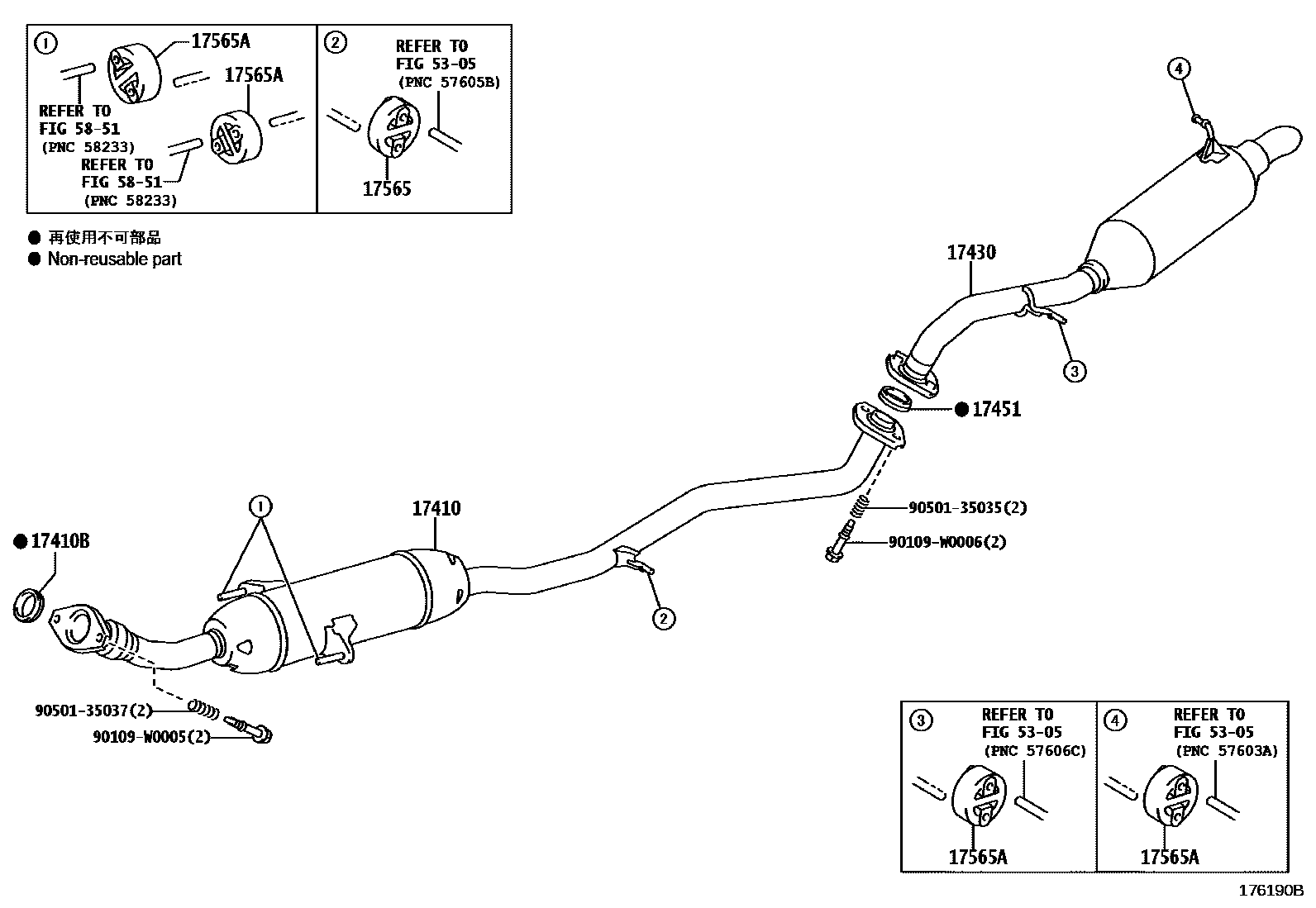

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0R170i1ADFTV..AUR20200902-201211

*114=TOYOTA/AC7/Y

main17410-0R180i2ADFHV..AUR21..6F200902-201503

*114=TOYOTA/AD8/Y

main17410-0R190i2ADFHV..AUR21..6FC200905-201503

*114=TOYOTA/AD8/Y

main17410-0R230i1ADFTV..AUR20201211-201503

*114=TOYOTA/AC7/Y

main17410-0T120i2ZRFAE..ZGR21..RHD..CVT..ENTRY200902-201503

*114=*387

main17410-0TA50i1ZRFAE..ZGR20201503

*114=*409

main17410-0TA60i2ZRFAE..ZGR21201503

*114=*410

main17410-0X030i1WW..WAR20201401-201503

main17410-0X050i1WW..WAR20201503

*114=TOYOTA/X86/Y

17410BGASKET, EXHAUST PIPE

main17451-0R010i1ADFTV,2ADFHV,1ZRFAE,2ZRFAE..AUR2#,ZGR2#200902-201503

17430PIPE ASSY, EXHAUST, TAIL

main17430-0R090i2ADFHV..AUR21200902-201503

main17430-0R100i1WW..WAR20200902-201503

main17430-0T110i2ZRFAE..ZGR21..RHD..CVT..ENTRY200902-201503

17451GASKET, EXHAUST PIPE

main17451-0B010i2ADFHV..AUR21200902-201503

main17451-0D111i1ADFTV,1ZRFAE,2ZRFAE..AUR20,ZGR2#200902-201102

sub17451-0D112

main17451-0D112i2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;1ADFTV,1ZRFAE..AUR20,ZGR20;2ZRFAE..ZGR21..LHD..CVT..ENTRY201103-201503

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D100i1ADFTV,2ADFHV,1WW,1ZRFAE,2ZRFAE..AUR2#,WAR20,ZGR2#200902-201503

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0J031i1ADFTV,2ADFHV,1ZRFAE,2ZRFAE..AUR2#,ZGR2#200902-201503

MADE IN EUROPE

main17565-22040i2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY;1ADFTV,2ADFHV,1ZRFAE..AUR2#,ZGR20200902-201503

MADE IN JAPAN

5305

5851

90109W0005

main90109-W0005

90109W0006

main90109-W0006

9050135035

main90501-35035

9050135037

main90501-35037

12 parts on this diagram · 2 diagrams in section
