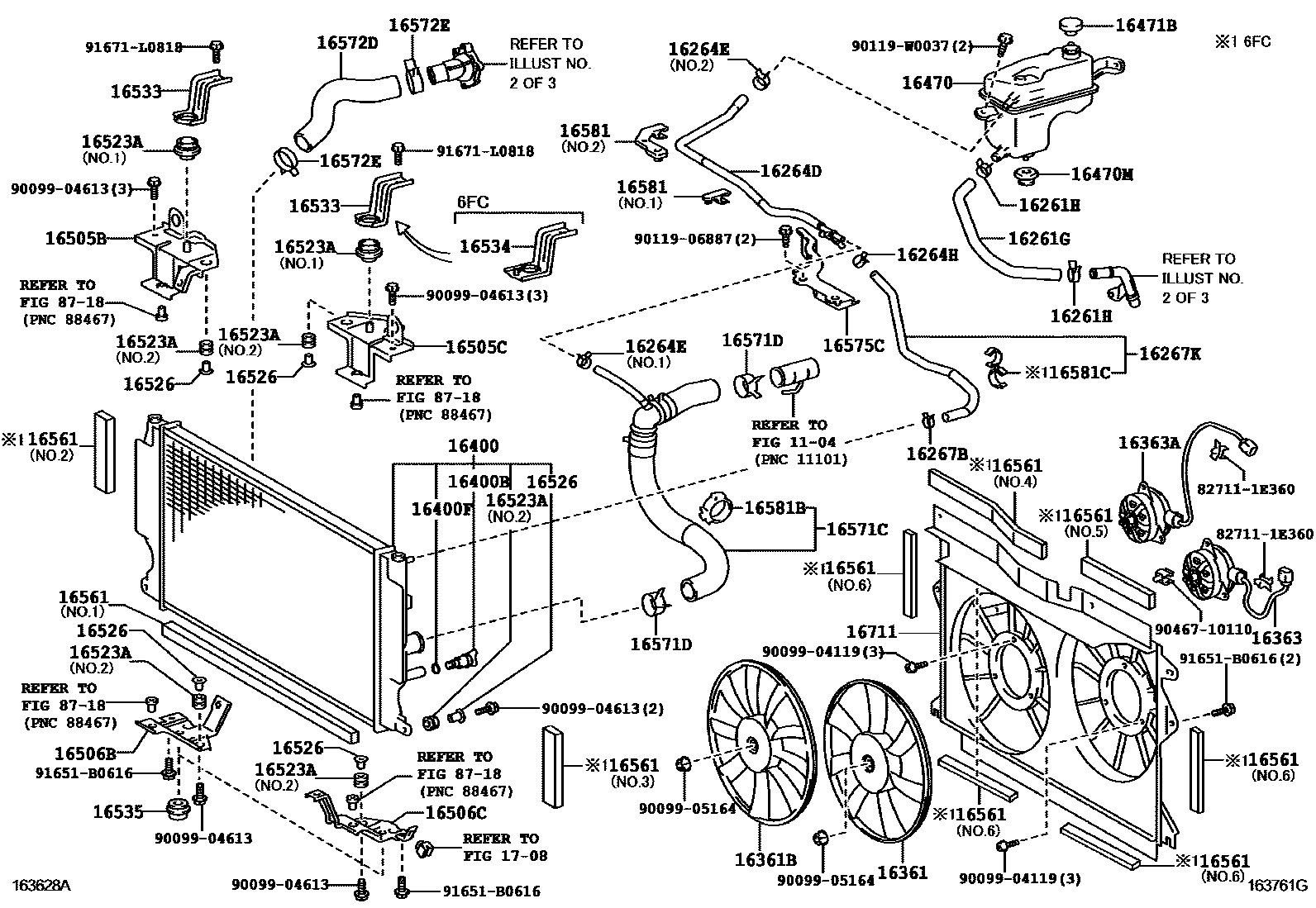

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0005 1EUROPE STEP4 0006 1EUROPE STEP5 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

1104

16261HOSE, WATER BY-PASS

main16261-0R081i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F201211

ENGINE-1AD-FTV(DPF)

main16261-0T240i1ZRFAE,2ZRFAE..ZGR2#201406-201503

(L)

main16261-37051i1ZRFAE,2ZRFAE..ZGR2#201007-201101

main16261-37052i1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY201101-201211

16261GHOSE, WATER BY-PASS, NO.1

main16261-0D240i2ZRFAE..ZGR21..RHD..CVT..ENTRY201007-201111

main16261-0R050i2ADFHV..AUR21..6FC200902-200906

16261HCLIP(FOR WATER BY-PASS HOSE NO.1)

main90466-W0007i1ADFTV,2ADFHV..AUR2#201206-201211

(L)

main96136-42201i1ZRFAE,2ZRFAE..ZGR2#201211-201503

NO.1

main96136-42501i1ZRFAE,2ZRFAE..ZGR2#201211-201503

(J),NO.2

main96136-52201i1ZRFAE,2ZRFAE..ZGR2#200902-201007

NO.1

main96136-52501i1ADFTV,2ADFHV..AUR2#201007-201107

NO.2

16264HOSE, WATER BY-PASS, NO.2

main16264-26080supersedes 16264-0R030i2ADFHV..AUR21..6FC201211

ENGINE-1AD-FTV(DPF)

main16264-37041i1ZRFAE,2ZRFAE..ZGR2#201007-201101

main16264-37042i1ZRFAE,2ZRFAE..ZGR2#201211-201503

16264DHOSE, WATER BY-PASS, NO.2

main16264-0D140i1ADFTV,2ADFHV..AUR2#200902-200905

16264ECLIP(FOR WATER BY-PASS HOSE NO.2)

main96136-41901i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F201211

NO.1

main96136-42101i1ZRFAE,2ZRFAE..ZGR2#201503

main96136-51901i1ADFTV,2ADFHV..AUR2#201007-201107

NO.1

main96136-52101i1ADFTV,2ADFHV..AUR2#201007-201107

NO.2

16264HCLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-15022i1ADFTV,2ADFHV..AUR2#200902-201007

16267HOSE, WATER BY-PASS, NO.3

main16267-26021supersedes 16267-0R070i1ADFTV,2ADFHV..AUR2#201007-201211

main16267-37010i1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY201007-201211

16267BCLIP(FOR WATER BY-PASS HOSE)

main90467-15022i1ADFTV..AUR20..ENTRY201211

TOWING PACKAGE-1500KG

16267KHOSE, WATER BY-PASS, NO.3

main16267-0D020supersedes 16267-0D020i1ZRFAE..ZGR20..LHD..ENTRY200902-201007

AIR CONDITIONER-MANUAL AIR CONDITIONER

main16267-0R010supersedes 16267-0R010i2ADFHV..AUR21..6FC200905-201007

main16267-0R040supersedes 16267-0R040i1ADFTV..AUR20..ENTRY200902-201007

AIR CONDITIONER-MANUAL AIR CONDITIONER

16361FAN

main16361-0D150i1ZRFAE,2ZRFAE..ZGR2#..6F201007-201211

main16361-0N040i2ZRFAE..ZGR21..CVT201007-201109

CYPRUS SPEC

main16361-0N070i2ZRFAE..ZGR21..RHD..CVT..ENTRY201110-201111

main16361-0R060i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F201211

16361BFAN, NO.2

main16361-0R070i1ADFTV,2ADFHV..AUR2#..6F201007-201211

main16361-0R100i1ADFTV..AUR20..ENTRY201211

TOWING PACKAGE-1500KG

main16361-0X010i1WW..WAR20201706

16363MOTOR, COOLING FAN

main16363-0D120i1ZRFAE,2ZRFAE..ZGR2#..6F200902-201007

main16363-0D130i2ZRFAE..ZGR21..CVT200902-201007

CYPRUS SPEC

main16363-0R040i1ADFTV,2ADFHV..AUR2#200902-201007

16363AMOTOR, COOLING FAN, NO.2

main16363-0R030i1ADFTV,2ADFHV..AUR2#..6F201007-201211

main16363-0R050i2ADFHV..AUR21..6FC200905-201007

16400RADIATOR ASSY

main16400-0D400i1ZRFAE,2ZRFAE..ZGR2#..6F201211-201503

main16400-0R030i1ADFTV..AUR20;2ADFHV..AUR21..LHD..6F201211

main16400-0R100i2ADFHV..AUR21..6FC201211

main16400-0T160i2ZRFAE..ZGR21..CVT200902-201007

CYPRUS SPEC

main16400-0T150i1ZRFAE,2ZRFAE..ZGR2#..LHD..6F..E201007-201211

WEST RUSSIA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER

main16400-0T180i2ZRFAE..ZGR21..ENTRY201503-201601

WEST RUSSIA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER

16400BPLUG, RADIATOR DRAIN COCK

main16417-0Q040i1ZRFAE..ZGR20..LHD;2ZRFAE..ZGR21..LHD..E200902-201007

WEST RUSSIA SPEC&AIR CONDITIONER-MANUAL AIR CONDITIONER

main16417-21280i1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY201007-201211

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1ZRFAE,2ZRFAE..ZGR2#201503

16470TANK ASSY, RADIATOR RESERVE

main16480-0D030i1ZRFAE,2ZRFAE..ZGR2#201503

main16480-26030i1ADFTV,2ADFHV..AUR2#200902-201007

16470MGROMMET

main90480-18010i1ADFTV,2ADFHV..AUR2#201007-201211

16471BCAP, RESERVE TANK

main16475-28140i1ZRFAE,2ZRFAE..ZGR2#201610

main16475-37010i1ADFTV,2ADFHV..AUR2#201204-201211

main16475-37011i1ZRFAE,2ZRFAE..ZGR2#201503-201609

main16475-51010i1ADFTV,2ADFHV..AUR2#201007-201203

main16475-53020i1WW..WAR20201401-201406

main16475-53021i1WW..WAR20201407-201410

main16475-53022i1WW..WAR20201411-201503

16505BSUPPORT SUB-ASSY, RADIATOR, UPPER RH

main16505-0R020i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F201211

16505CSUPPORT SUB-ASSY, RADIATOR, UPPER LH

main16505-0R010i1WW..WAR20201401-201503

16506BSUPPORT SUB-ASSY, RADIATOR, LOWER RH

main16506-0R070i1WW..WAR20201401-201503

16506CSUPPORT SUB-ASSY, RADIATOR, LOWER LH

main16506-0R010i1ADFTV,2ADFHV..AUR2#200902-201007

16523ACUSHION, RADIATOR SUPPORT

main16523-0D040×2i1ZRFAE,2ZRFAE..ZGR2#200902-201007

main16523-0R010×2i1WW..WAR20201503

main16523-0R020×6i1WW..WAR20201503

NO.2

16526HOLDER, RADIATOR SUPPORT

main16526-0R010×6i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F201211

16533SUPPORT, RADIATOR, UPPER

main16533-0R020×2i2ADFHV..AUR21..6FC201211

16534SUPPORT, RADIATOR, NO.2

main16534-0R020i2ADFHV..AUR21..6FC200905-201007

16535SUPPORT, RADIATOR, LOWER

main16535-0D080×2i1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY201007-201211

main16535-0R050×2i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F201211

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-0R010i2ADFHV..AUR21..6FC201007-201211

NO.1

main16561-0R020i2ADFHV..AUR21..6FC200905-201007

NO.2

main16561-0R030i2ADFHV..AUR21..6FC201007-201211

NO.3

main16561-0R040i2ADFHV..AUR21..6FC201007-201211

NO.4

main16561-0R050i2ADFHV..AUR21..6FC201211

NO.5

main16561-0R060×4i2ADFHV..AUR21..6FC200905-201007

NO.6

main16561-22030i1ZRFAE,2ZRFAE..ZGR2#200902-201007

16571CHOSE, RADIATOR, NO.1

main16571-0D200i1ZRFAE,2ZRFAE..ZGR2#..6F201211-201305

main16571-0T050i2ZRFAE..ZGR21..CVT201211-201305

main16571-0T140i1ZRFAE,2ZRFAE..ZGR2#..6F201503

main16571-0T150i2ZRFAE..ZGR21..CVT201503

main16571-0X020i1WW..WAR20201401-201503

main16571-26151i1ADFTV,2ADFHV..AUR2#..6F200902-201007

main16571-26160i2ADFHV..AUR21..6FC201007-201211

16571DCLIP, RADIATOR HOSE, NO.1

main90466-W0016i1ZRFAE,2ZRFAE..ZGR2#201503

(L),NO.2

main96136-43901i1ZRFAE,2ZRFAE..ZGR2#200902-201007

NO.1

main96136-44301i1ZRFAE,2ZRFAE..ZGR2#201206-201211

(J),NO.2

main96136-44801×2i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F201211

main96136-54801×2i1ADFTV,2ADFHV..AUR2#200902-201007

16572DHOSE, RADIATOR, NO.2

main16572-0D170i1ZRFAE,2ZRFAE..ZGR2#200902-200905

main16572-0R040i1ADFTV,2ADFHV..AUR2#..6F200906-201007

main16572-0R050i2ADFHV..AUR21..6FC200905-201007

main16572-0R080i1ADFTV,2ADFHV..AUR2#..6F201211

main16572-0X020i1WW..WAR20201401-201503

16572ECLIP, RADIATOR HOSE, NO.2

main90466-W0016×2i1ZRFAE,2ZRFAE..ZGR2#201211-201503

(L)

main96136-44301×2i1ZRFAE,2ZRFAE..ZGR2#200902-201007

main96136-44801×2i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F201211

main96136-54801×2i1ADFTV,2ADFHV..AUR2#200902-201007

16575CBRACKET, WATER HOSE CLAMP, NO.1

main16575-22020i1ADFTV,2ADFHV..AUR2#200902-200908

main16575-37020i1ADFTV,2ADFHV..AUR2#200909-201007

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-21030i2ZRFAE..ZGR21..CVT200902-201007

NO.1

main16581-21060i2ZRFAE..ZGR21..CVT201503

NO.2,TYPE A

main16581-22110i1ADFTV,2ADFHV..AUR2#200902-201007

NO.1

main16581-22120i1ADFTV,2ADFHV..AUR2#200902-201007

NO.2

main90464-00763i2ZRFAE..ZGR21..CVT201503

NO.2,TYPE B

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main16581-22110i1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY201007-201211

NO.1

main16581-22120i2ZRFAE..ZGR21..RHD..CVT..ENTRY201007-201111

NO.2

main16581-28070i1ADFTV,2ADFHV..AUR2#200902-201007

16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)

main16581-26060i2ADFHV..AUR21..6FC200905-201007

16711SHROUD, FAN

main16711-0D190i1ZRFAE,2ZRFAE..ZGR2#..6F201503

sub16711-0D191

main16711-0D200i2ZRFAE..ZGR21..RHD..CVT..ENTRY201007-201111

main16711-0D201i1ZRFAE,2ZRFAE..ZGR2#..RHD..ENTRY201206-201211

CYPRUS SPEC

main16711-0R080i1ADFTV,2ADFHV..AUR2#..6F200902-201007

main16711-0R100i1WW..WAR20201503-201706

main16711-0X020i1WW..WAR20201706

1708

8718

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009904119

main90099-04119

9009904613

main90099-04613

9009905164

main90099-05164

9011906887

main90119-06887

90119W0037

main90119-W0037

9046710110

main90467-10110

91651B0616

main91651-B0616

91671L0818

main91671-L0818

51 parts on this diagram · 15 diagrams in section
