WATER PUMP

0001 1 0002 1 0003 1 0005 1

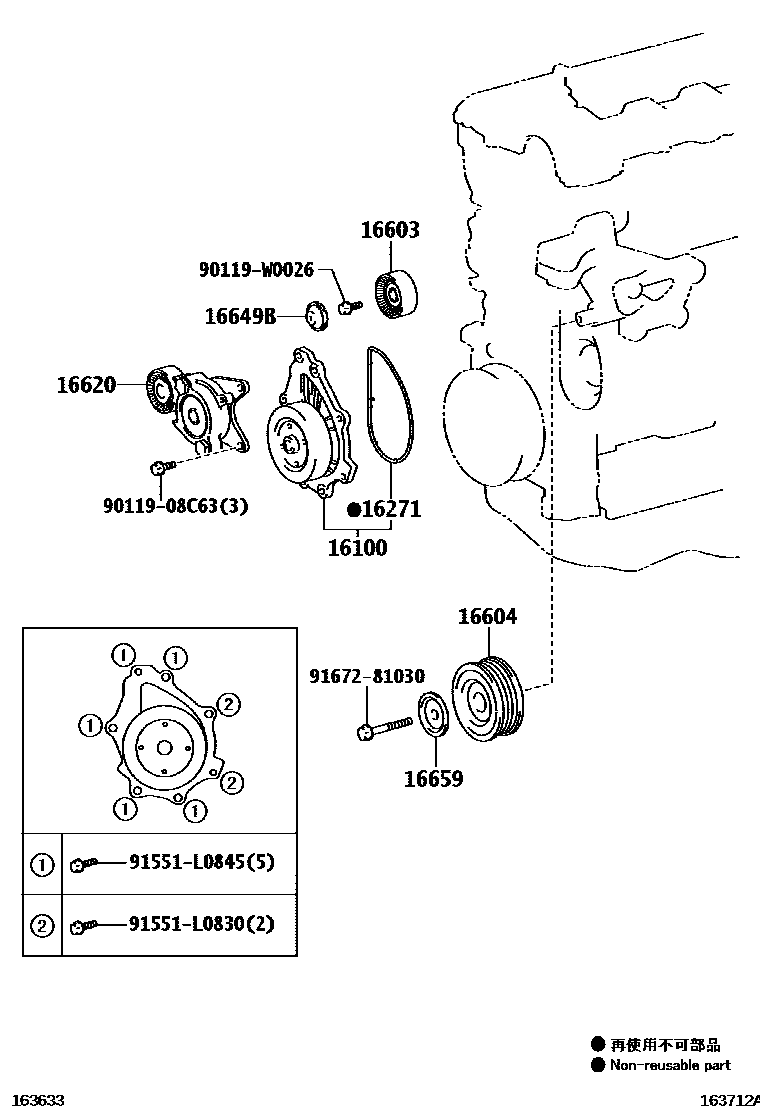

16100PUMP ASSY, ENGINE WATER

main16100-09340i2ADFHV..AUR21201211-201409

ENGINE-1AD-FTV(DPF)

main16100-09341supersedes 16100-09581i2ADFHV..AUR21201409

ENGINE-1AD-FTV(DPF)

main16100-09500i1ZRFAE,2ZRFAE..ZGR2#200902-200909

(L)

sub91551-80825

main16100-09501i1ZRFAE,2ZRFAE..ZGR2#201211-201503

(L)

sub16100-09502

main16100-09670i2ZRFAE..ZGR21201503

(L)

main16100-39465i1ZRFAE,2ZRFAE..ZGR2#200902-200906

(J)

sub91551-80825

main16100-39466i1ZRFAE,2ZRFAE..ZGR2#201211-201503

(J)

main16100-39565i2ZRFAE..ZGR21201503

(J)

main16100-WA010i1WW..WAR20201503

16271GASKET, WATER PUMP

main16271-26010i1ADFTV,2ADFHV..AUR2#201007-201211

main16271-37010i1ZRFAE,2ZRFAE..ZGR2#200902-201007

main16271-37030i2ZRFAE..ZGR21201503

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0R010i1ADFTV,2ADFHV..AUR2#201007-201211

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-26011i1ADFTV,2ADFHV..AUR2#201211-201408

main16604-26012i1ADFTV,2ADFHV..AUR2#201409

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0R010i1ADFTV,2ADFHV..AUR2#200902-201007

main16620-37020i2ZRFAE..ZGR21201503-201504

main16620-37030i2ZRFAE..ZGR21201504

main16620-WA010i1WW..WAR20201401

16649BPLATE, IDLER PULLEY COVER

main16649-0R010i1ADFTV,2ADFHV..AUR2#200902-201007

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-26010i1ADFTV,2ADFHV..AUR2#200902-201007

9011908C63

main90119-08C63

90119W0026

main90119-W0026

91551L0830

main91551-L0830

91551L0845

main91551-L0845

9167281030

main91672-81030

12 parts on this diagram · 4 diagrams in section
