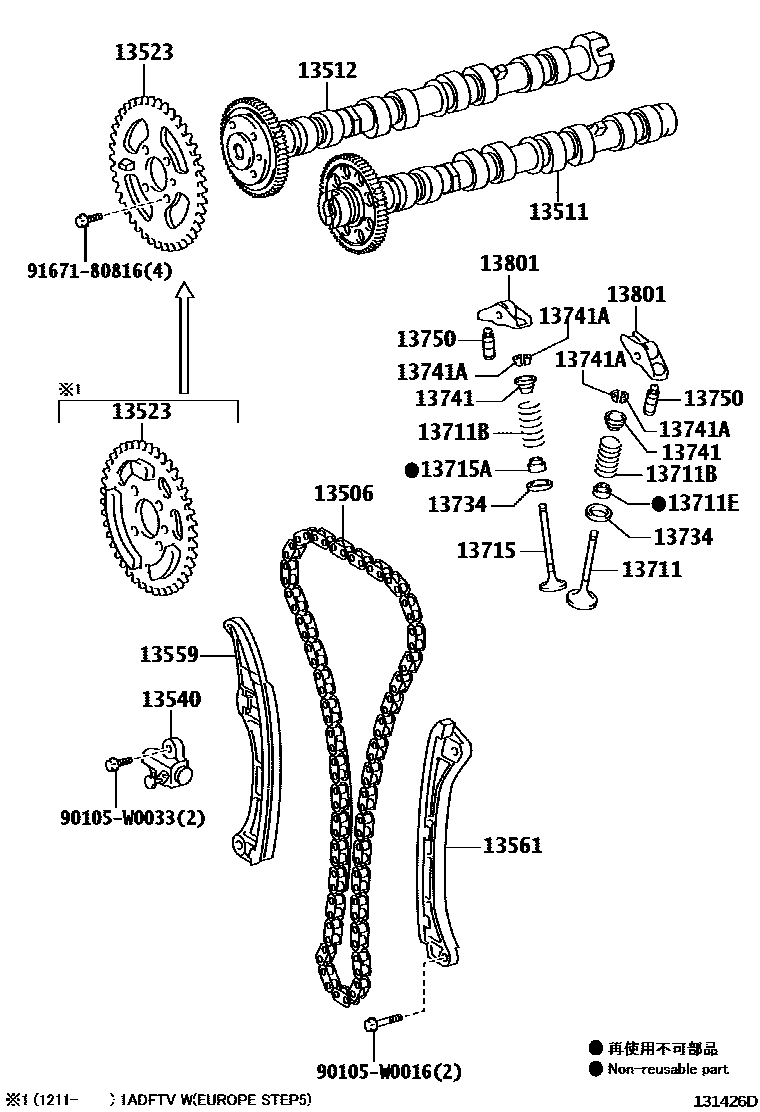

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

13506CHAIN SUB-ASSY

main13506-0R010i1ADFTV,2ADFHV..AUR2#200902-201211

main13506-0R010i1ADFTV..AUR20201211

ENGINE-1AD-FTV(DPF)

main13506-0R020i1ADFTV..AUR20201211

main13506-0T100i1ZRFAE,2ZRFAE..ZGR2#201406-201503

(L)

main13506-37040i1ZRFAE,2ZRFAE..ZGR2#200902-201405

main13506-37050i1ZRFAE,2ZRFAE..ZGR2#201406-201503

(J)

main13506-WA010i1WW..WAR20201401-201508

sub13506-WA011

main13506-WA011i1WW..WAR20201508

13511CAMSHAFT

main13501-0R010i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F200902-201211

main13501-WA010i1WW..WAR20201401

13512CAMSHAFT, NO.2

main13502-0R010i1ADFTV,2ADFHV..AUR2#200902-201110

sub13502-0R011

main13502-0R011i1ADFTV,2ADFHV..AUR2#201110-201211

main13502-WA010i1WW..WAR20201401

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-0R010i1ADFTV,2ADFHV..AUR2#200902-200912

sub13523-0R011

main13523-0R011i1ADFTV,2ADFHV..AUR2#200912-201211

main13523-0R011i2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F201211

ENGINE-1AD-FTV(DPF)

main13523-26011i1ADFTV..AUR20201211

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0R010i1ADFTV,2ADFHV..AUR2#200902-201211

main13540-0T030i1ZRFAE,2ZRFAE..ZGR2#200902-201503

(L)

main13540-37030i1ZRFAE,2ZRFAE..ZGR2#200902-201503

(J)

main13540-WA010i1WW..WAR20201401

13559SLIPPER, CHAIN TENSIONER

main13559-0R010i1ADFTV,2ADFHV..AUR2#200902-201110

sub13559-0R020

main13559-0R020i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F201110-201211

main13559-0T030i1ZRFAE,2ZRFAE..ZGR2#200902-201605

(L)

sub13559-0T080

main13559-0T080i1ZRFAE,2ZRFAE..ZGR2#201606

(L)

main13559-37010i1ZRFAE,2ZRFAE..ZGR2#200902-201501

(J)

sub13559-37050

main13559-37050i1ZRFAE,2ZRFAE..ZGR2#201502-201503

(J)

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-0R010i1ADFTV,2ADFHV..AUR2#200902-201110

sub13561-0R020

main13561-0R020i1ADFTV,2ADFHV..AUR2#201110-201211

main13561-0T050i2ZRFAE..ZGR21..RHD..CVT..ENTRY200902-201503

(L)

sub13561-37060

main13561-37010i1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY200902-201306

(J)

sub13561-37040

main13561-37040i1ZRFAE,2ZRFAE..ZGR2#201306-201503

(J)

sub13561-37060

13711VALVE, INTAKE

main13711-0R010i1ADFTV,2ADFHV..AUR2#200902-201211

main13711-0T040i1ZRFAE,2ZRFAE..ZGR2#201105-201503

(L)

main13711-37020i1ZRFAE,2ZRFAE..ZGR2#200902-201105

main13711-37020i2ZRFAE..ZGR21..RHD..CVT..ENTRY201105-201503

(J)

main13711-WA010i1WW..WAR20201401

13711BSPRING, COMPRESSION(FOR INNER)

main90069-51022i1WW..WAR20201401-201503

main90501-28039i1ADFTV,2ADFHV..AUR2#200902-201211

main90501-31024i1ZRFAE,2ZRFAE..ZGR2#200902-201110

sub90501-31027

main90501-31027i1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY201110-201405

main90501-31028i1ZRFAE,2ZRFAE..ZGR2#201405-201408

TYPE A:REFER ILLUST.

main90501-32071i1ZRFAE,2ZRFAE..ZGR2#201405-201408

TYPE B:REFER ILLUST.

sub90501-32072

main90501-32072i1ZRFAE,2ZRFAE..ZGR2#201408-201503

L=51.88

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02124i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F200902-201211

(J)

main90913-W2001i1ADFTV,2ADFHV..AUR2#200902-201211

(L)

13715VALVE, EXHAUST

main13715-0R010i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F200902-201211

main13715-0T040i2ZRFAE..ZGR21..RHD..CVT..ENTRY201105-201503

(L)

main13715-37030i1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY201105-201503

(J)

main13715-37030i1ZRFAE,2ZRFAE..ZGR2#200902-201105

main13715-WA010i1WW..WAR20201401

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02124i1ADFTV,2ADFHV..AUR2#200902-201211

(J)

main90913-W2001i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F200902-201211

(L)

13734SEAT, VALVE SPRING

main13734-0P010i1ZRFAE,2ZRFAE..ZGR2#201402-201503

(L)

main13734-33020i1ADFTV,2ADFHV..AUR2#200902-201211

main13734-62020i1ZRFAE,2ZRFAE..ZGR2#200902-201402

main13734-62020i1ZRFAE,2ZRFAE..ZGR2#201402-201503

(J)

13741RETAINER, VALVE SPRING

main13741-20021i1ZRFAE,2ZRFAE..ZGR2#200902-201405

main13741-20021i1ZRFAE,2ZRFAE..ZGR2#201405-201408

TYPE A:REFER ILLUST.

main13741-33020i1ADFTV..AUR20;2ADFHV..AUR21..6FC;2ADFHV..AUR21..LHD..6F200902-201211

main13741-36010i1ZRFAE,2ZRFAE..ZGR2#201408-201503

main13741-36010i1ZRFAE,2ZRFAE..ZGR2#201405-201408

TYPE B:REFER ILLUST.

main13741-WA010i1WW..WAR20201401

13741ALOCK, VALVE SPRING RETAINER

main90913-03021i1ADFTV,2ADFHV..AUR2#200902-201211

main90913-03028i1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY200902-201406

main90913-03028i1ZRFAE,2ZRFAE..ZGR2#201406-201503

(J)

main90913-W3001i1ZRFAE,2ZRFAE..ZGR2#201406-201503

(L)

mainSU00400001i1WW..WAR20201401-201503

13750ADJUSTER ASSY, VALVE LASH

main13750-0R010i1ADFTV,2ADFHV..AUR2#200902-201211

main13750-0T010i1ZRFAE,2ZRFAE..ZGR2#200902-201501

(L)

main13750-0T040i1ZRFAE,2ZRFAE..ZGR2#201501-201503

(L)

main13750-21010i1ZRFAE,2ZRFAE..ZGR2#201501-201503

(J)

main13750-75020i1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY200902-201501

(J)

main13750-WA011i1WW..WAR20201401-201612

sub13750-WA012

main13750-WA012i1WW..WAR20201612

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-0R010i1ADFTV,2ADFHV..AUR2#200902-201211

main13801-0T020i1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY200902-201412

(L)

main13801-0T030i1ZRFAE,2ZRFAE..ZGR2#201501-201503

(L)

main13801-23011i1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY200902-201404

(J)

main13801-36020i1ZRFAE,2ZRFAE..ZGR2#201405-201503

(J)

main13801-WA010i1WW..WAR20201401-201503

sub13801-WA011

main13801-WA011i1WW..WAR20201503

90105W0016

main90105-W0016

90105W0033

main90105-W0033

9167180816

main91671-80816

20 parts on this diagram · 3 diagrams in section
