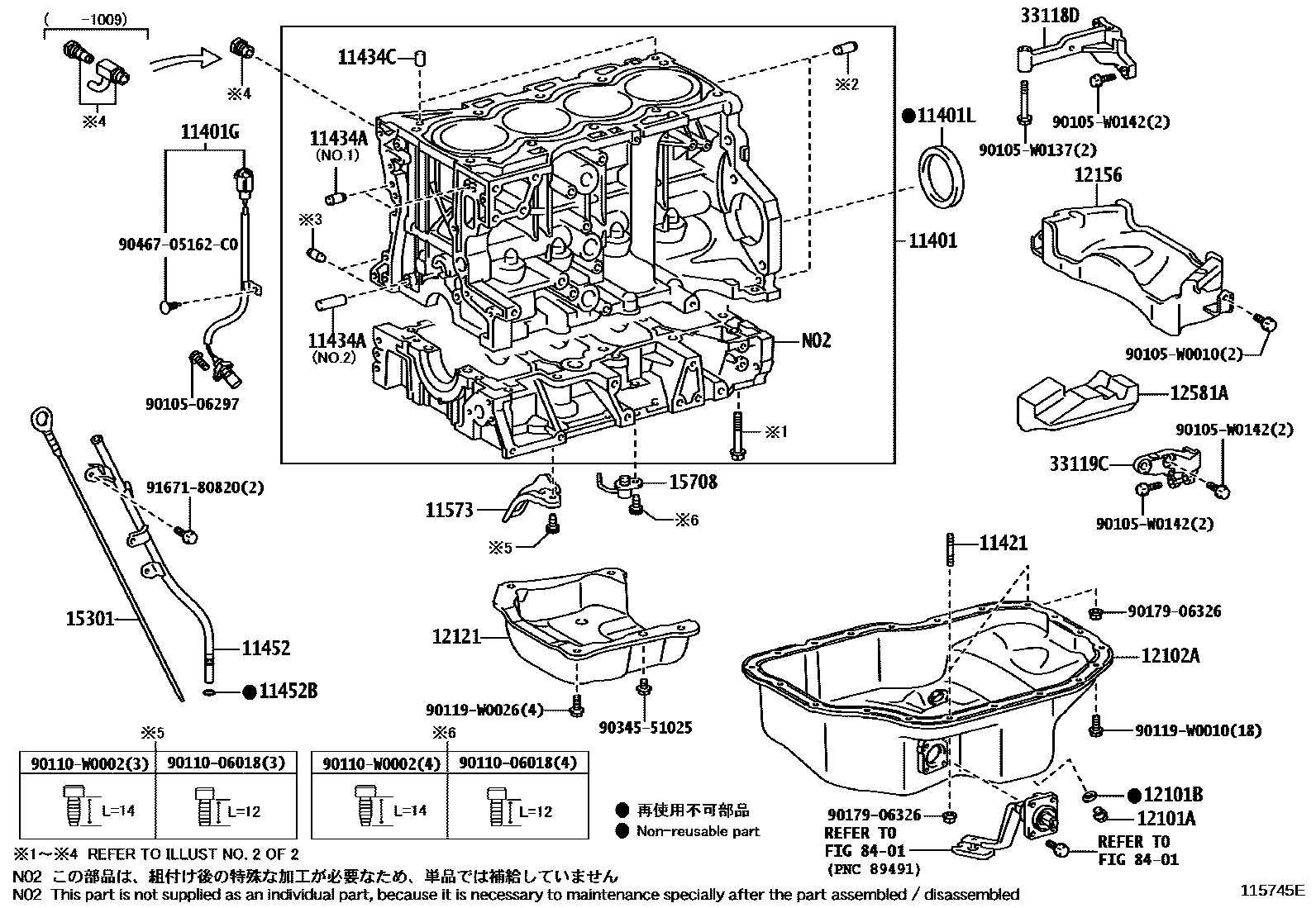

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
(L)
(L)
(L)
(L)
(L)
(L)
(L)
(L)
(L)
(L)
(L)
(L)
(J)
(J)
(J)
(J)
(J)
(J)
(J)
(J)
(J)
(J)
11401GSENSOR, CRANK POSITION
11401LSEAL, ENGINE REAR OIL
main90311-76002i1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY201007-201211
(J)
(J)
sub90311-W0020
(L)
11421BOLT, STUD(FOR OIL PAN)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=18,OD=8,NO.1
L=36,OD=10,NO.2
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=4.0
L=15,OD=8
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
11573PLATE, OIL REFLECTOR
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
ENGINE-1AD-FTV(DPF)
(L)
(J)
12121PLATE, OIL PAN BAFFLE, NO.1
12156INSULATOR, OIL PAN
12581AINSULATOR, CYLINDER BLOCK, NO.1
15301GAGE SUB-ASSY, OIL LEVEL
main15301-37010i1ZRFAE..ZGR20;2ZRFAE..ZGR21..E;2ZRFAE..ZGR21..6F..ENTRY;2ZRFAE..ZGR21..LHD..CVT..ENTRY201007-201208
15708NOZZLE SUB-ASSY, OIL, NO.1
33118DPLATE, STIFFENER, RH
33119CPLATE, STIFFENER, LH
8401
9010506297
main90105-06297
90105W0010
main90105-W0010
90105W0137
main90105-W0137
90105W0142
main90105-W0142
9011006018
main90110-06018
90110W0002
main90110-W0002
90119W0010
main90119-W0010
90119W0026
main90119-W0026
9017906326
main90179-06326
9034551025
main90345-51025
9046705162C0
main90467-05162C0
9167180820
main91671-80820
33 parts on this diagram · 6 diagrams in section
