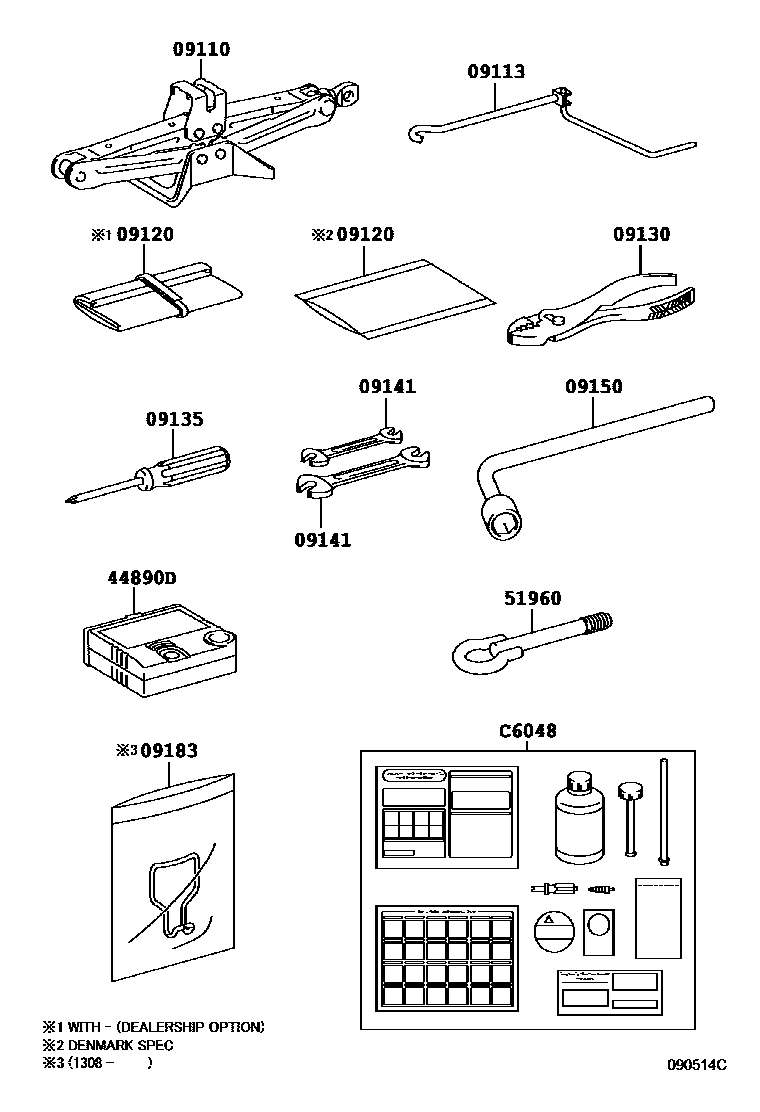

STANDARD TOOL
09110JACK ASSY
main09111-05050supersedes 09111-05050iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201103-201211
sub09111-05052
09113HANDLE, JACK
main09113-0F010supersedes 09113-0F010iZGR21..E;AUR2#,ZGR20;ZGR21..6F..ENTRY;ZGR21..LHD..CVT..ENTRY201007-201211
09120BAG, TOOL
DENMARK SPEC
09130PLIERS
TOOL (DEALERSHIP OPTION)-WITH
09135DRIVER, SCREW
TOOL (DEALERSHIP OPTION)-WITH
09141SPANNER
8 X 10,TOOL(DEALERSHIP OPTION)-WITH
12 X 14,TOOL(DEALERSHIP OPTION)-WITH
09150WRENCH, HUB NUT BOX
TIRE & DISK WHEEL-205/60R16 ALUMI ROUGH ROAD&WHEEL CAP-CTR ORNAMENT(FOR 16 INCH ALUMI),CSG&SPARE TIRE-WITHOUT(WITH/REPAIR KIT)
sub09150-05011
09183WRENCH, WHEEL CAP
SPARE TIRE-WITHOUT(WITH/REPAIR KIT)
44890DCOMPRESSOR ASSY, AIR
SPARE TIRE-WITHOUT(WITH/REPAIR KIT)
TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD&SPARE TIRE-WITHOUT(WITH/REPAIR KIT)
sub44890-47010
51960HOOK ASSY, FRONT
C6048REPAIR SET, TIRE
TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD&SPARE TIRE-WITHOUT
TIRE & DISK WHEEL-215/55R17 ALUMI ROUGH ROAD&SPARE TIRE-WITHOUT(WITH/REPAIR KIT)
subC6048-42031
11 parts on this diagram · 2 diagrams in section
