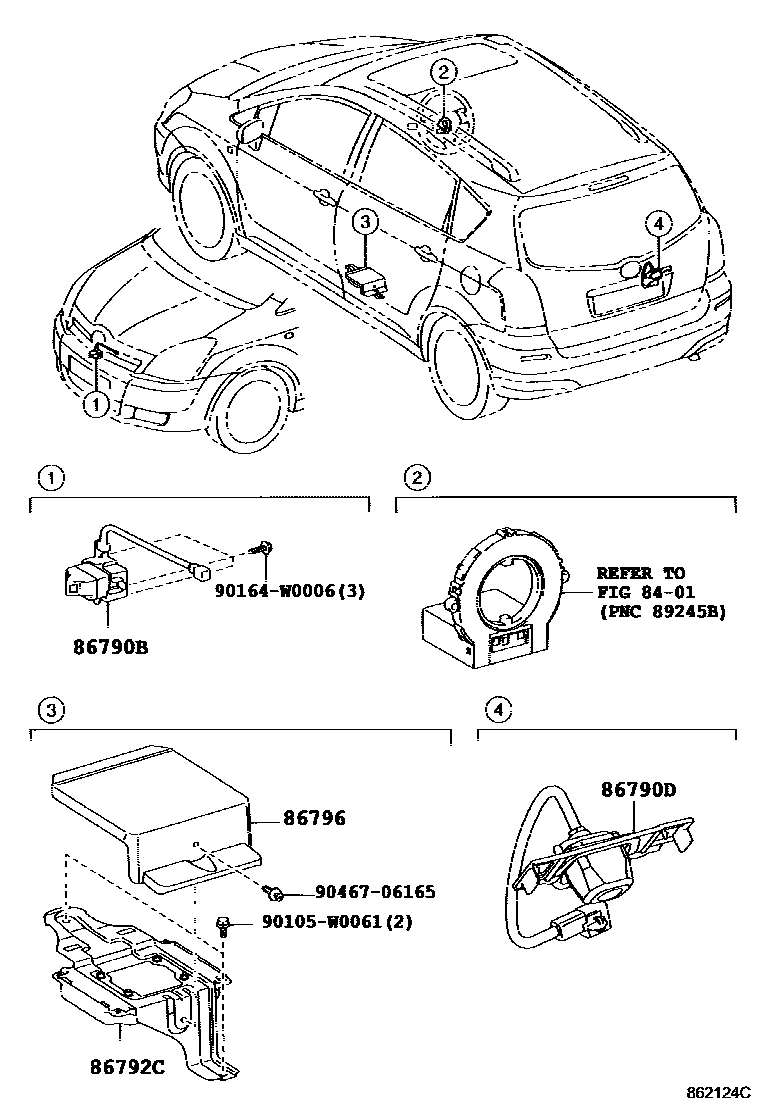

CAMERA & REAR MONITOR DISPLAY

8401

86790BCAMERA ASSY, TELEVISION, FR

main86790-64040iAUR10,ZNR1#..SOL200803-200902

AUDIO-AM/FM/CD

main86790-64040iAUR10,ZNR1#..SOL200803-200902

AUDIO-AM/FM/CD CHANGER

86790DCAMERA ASSY, TELEVISION, RR

main86790-64030iAUR10,ZNR1#..SOL200803

AUDIO-AM/FM/CD

sub86790-64031

main86790-64030iAUR10,ZNR1#..SOL200803

AUDIO-AM/FM/CD CHANGER

sub86790-64031

86792CCOMPUTER, PARKING ASSIST

main86792-64030iAUR10,ZNR1#..SOL200803

AUDIO-AM/FM/CD

main86792-64030iAUR10,ZNR1#..SOL200803

AUDIO-AM/FM/CD CHANGER

86796COVER, COMPUTER PARKING ASSIST

main86796-21010iAUR10,ZNR1#..SOL¥3,180200803

AUDIO-AM/FM/CD

main86796-21010iAUR10,ZNR1#..SOL¥3,180200803

AUDIO-AM/FM/CD CHANGER

90105W0061

main90105-W0061

90164W0006

main90164-W0006

9046706165

main90467-06165¥160

8 parts on this diagram · 1 diagram in section
