HEADLAMP CLEANER
8401
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
WITH(HEADLAMP CLEANER),SUPER WHITE 2,040
WITH(HEADLAMP CLEANER),SILVER ME.,1C0
WITH(HEADLAMP CLEANER),GRAY M.M.,1C3
WITH(HEADLAMP CLEANER),BLACK MC.,209
WITH(HEADLAMP CLEANER),DK. RED M.M.,3Q3
WITH(HEADLAMP CLEANER),BEIGE M.M.,4S0
WITH(HEADLAMP CLEANER),DK.GREEN M.M.,6S3
WITH(HEADLAMP CLEANER),DK.BLUE M.M.,8P4
WITH(HEADLAMP CLEANER),DK.BLUE,8Q4
WITH(HEADLAMP CLEANER),LT.BLUE M.M.,8S1
WITH(HEADLAMP CLEANER)
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
WITH(HEADLAMP CLEANER),SUPER WHITE 2,040
WITH(HEADLAMP CLEANER),SILVER ME.,1C0
WITH(HEADLAMP CLEANER),GRAY M.M.,1C3
WITH(HEADLAMP CLEANER),BLACK MC.,209
WITH(HEADLAMP CLEANER),DK. RED M.M.,3Q3
WITH(HEADLAMP CLEANER),BEIGE M.M.,4S0
WITH(HEADLAMP CLEANER),DK.GREEN M.M.,6S3
WITH(HEADLAMP CLEANER),DK.BLUE M.M.,8P4
WITH(HEADLAMP CLEANER),DK.BLUE,8Q4
WITH(HEADLAMP CLEANER),LT.BLUE M.M.,8S1
WITH(HEADLAMP CLEANER)
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
WITH(HEADLAMP CLEANER)
WITH(HEADLAMP CLEANER)
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
WITH(HEADLAMP CLEANER)
WITH(HEADLAMP CLEANER)
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
85271CHOSE, HEADLAMP CLEANER, NO.4
85271DHOSE, HEADLAMP CLEANER, NO.5
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
WITH(HEADLAMP CLEANER)
85285BJOINT, HEADLAMP CLEANER NOZZLE NO.1
WITH(HEADLAMP CLEANER)
85336CPACKING, HEADLAMP CLEANER MOTOR
WITH(HEADLAMP CLEANER)
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
WITH(HEADLAMP CLEANER)
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
WITH(HEADLAMP CLEANER)
WITH(HEADLAMP CLEANER)
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
WITH(HEADLAMP CLEANER)
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
WITH(HEADLAMP CLEANER)
WITH(HEADLAMP CLEANER)
8527205020CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-05020
8527905040RELAY ASSY, HEADLAMP CLEANER WASHER
main85279-05040
9011906536
main90119-06536

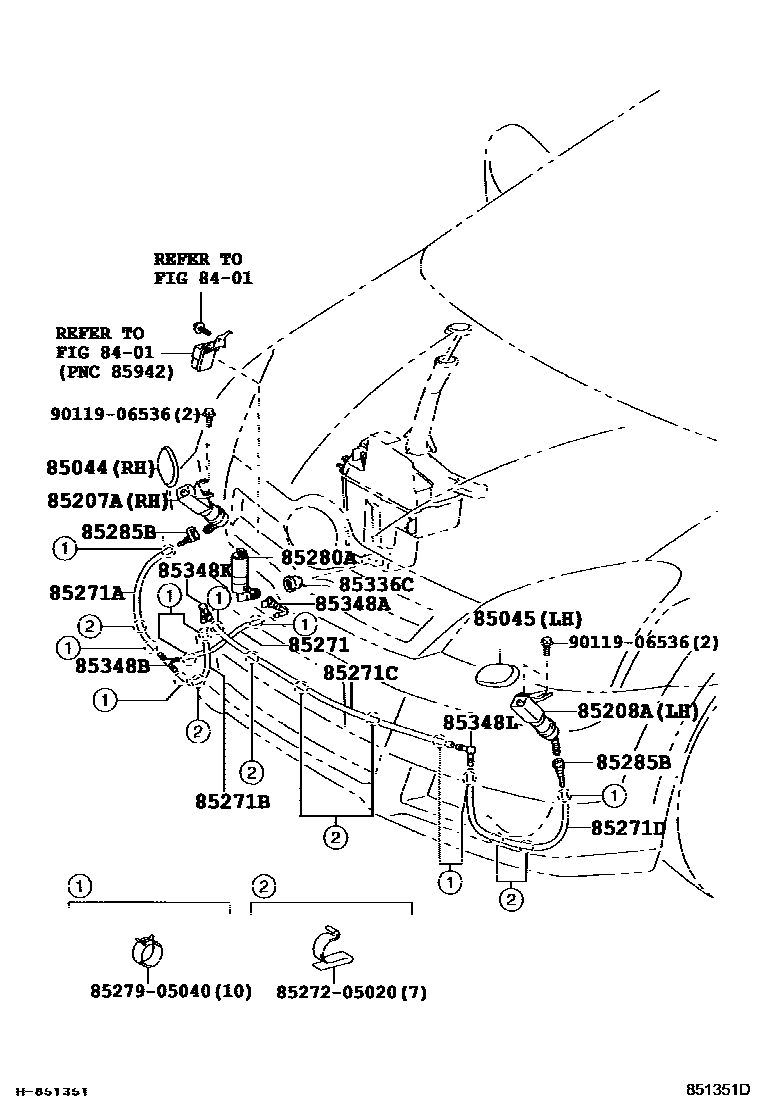

20 parts on this diagram · 2 diagrams in section
