ABS & VSC

4708

8401

86650KBUZZER ASSY, SKID CONTROL

main86650-13010iAUR10,ZNR1#¥2,950200402-200705

89183ASENSOR, YAWRATE

main89183-02020iAUR10,ZNR1#¥120,000200402-200705

89189BBRACKET, YAWRATE SENSOR

main89189-20040iCUR10¥1,410200402-200705

NO.1

main89189-20050iCUR10¥1,550200402-200705

NO.2

89516WIRE, SKID CONTROL SENSOR

main89516-0F010iCUR10200402-200705

RH

main89516-0F020iCUR10200402-200705

LH

89541COMPUTER, SKID CONTROL

main89541-0F010iCUR10,ZNR1#200402-200902

89542SENSOR, SPEED, FRONT RH

main89542-02040iAUR10,CUR10,ZNR1#¥21,700200402-200902

89543SENSOR, SPEED, FRONT LH

main89543-02040iCUR10¥21,700200402-200705

89544SENSOR, SKID CONTROL

main89544-02010iAUR10,CUR10,ZNR1#¥8,400200402-200902

90105W0012

main90105-W0012¥100

90105W0061

main90105-W0061

90119W0053

main90119-W0053¥100

90119W0054

main90119-W0054¥170

90119W0151

main90119-W0151¥100

9015960547

main90159-60547¥90

90178W0019

main90178-W0019¥110

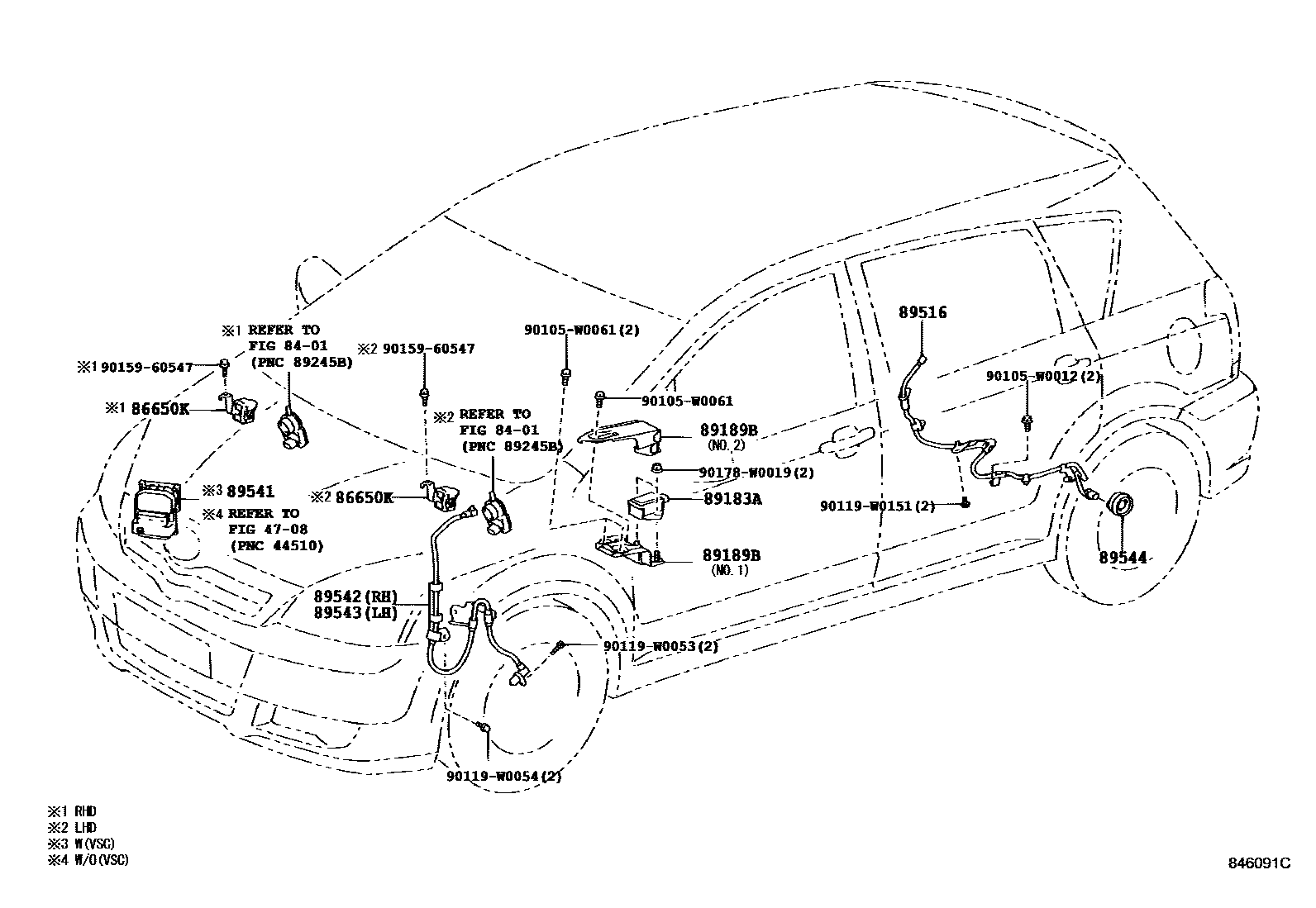

17 parts on this diagram · 1 diagram in section
