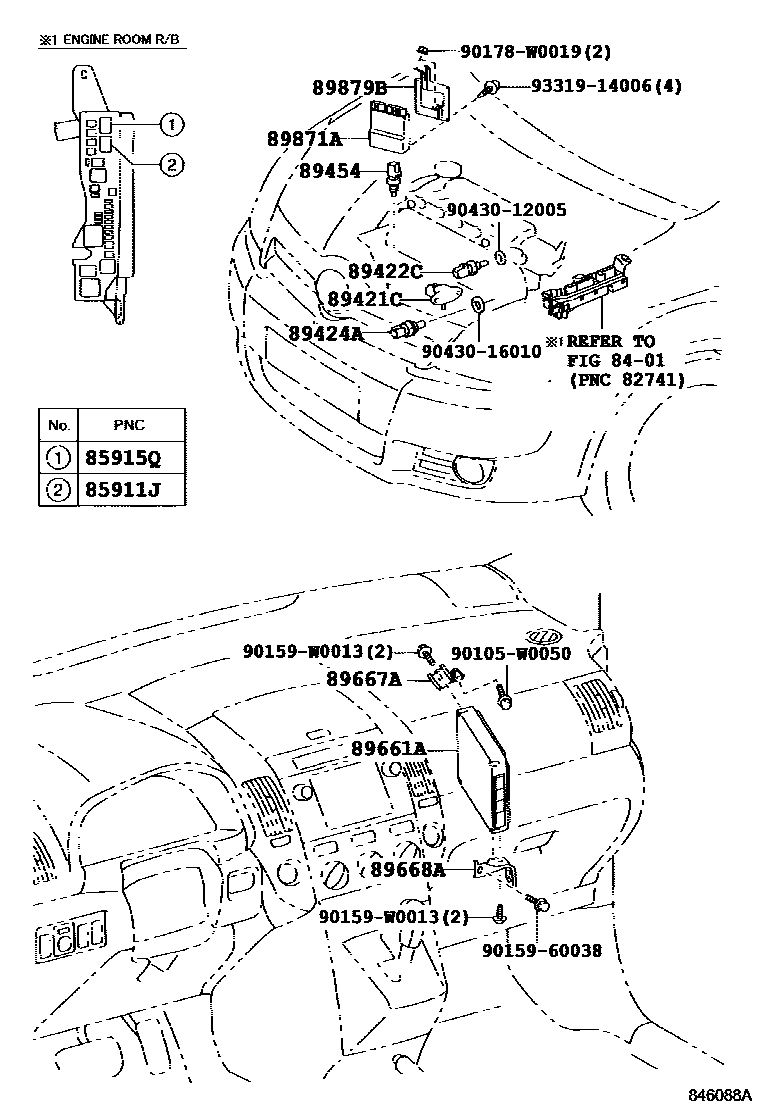

ELECTRONIC CONTROLED DIESEL (ECD)
8401
85911JRELAY ASSY, CIRCUIT OPENING (FOR ECD)
sub90080-87021
85915QRELAY, COMPUTER (FOR DIESEL)
sub90080-87021
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89454SENSOR, FUEL TEMPERATURE
89661ACOMPUTER, ENGINE CONTROL
sub89661-0F011
sub89661-0F091
sub89661-0F092
sub89661-0F101
sub89661-0F102
sub89661-0F111
sub89661-0F112
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
89871ADRIVER, INJECTOR
89879BBRACKET, INJECTOR DRIVER
NO.1
NO.1
NO.2
90105W0050
main90105-W0050
9015960038
main90159-60038
90159W0013
main90159-W0013
90178W0019
main90178-W0019
9043012005
main90430-12005
9043016010
main90430-16010
9331914006
main93319-14006
19 parts on this diagram · 4 diagrams in section
