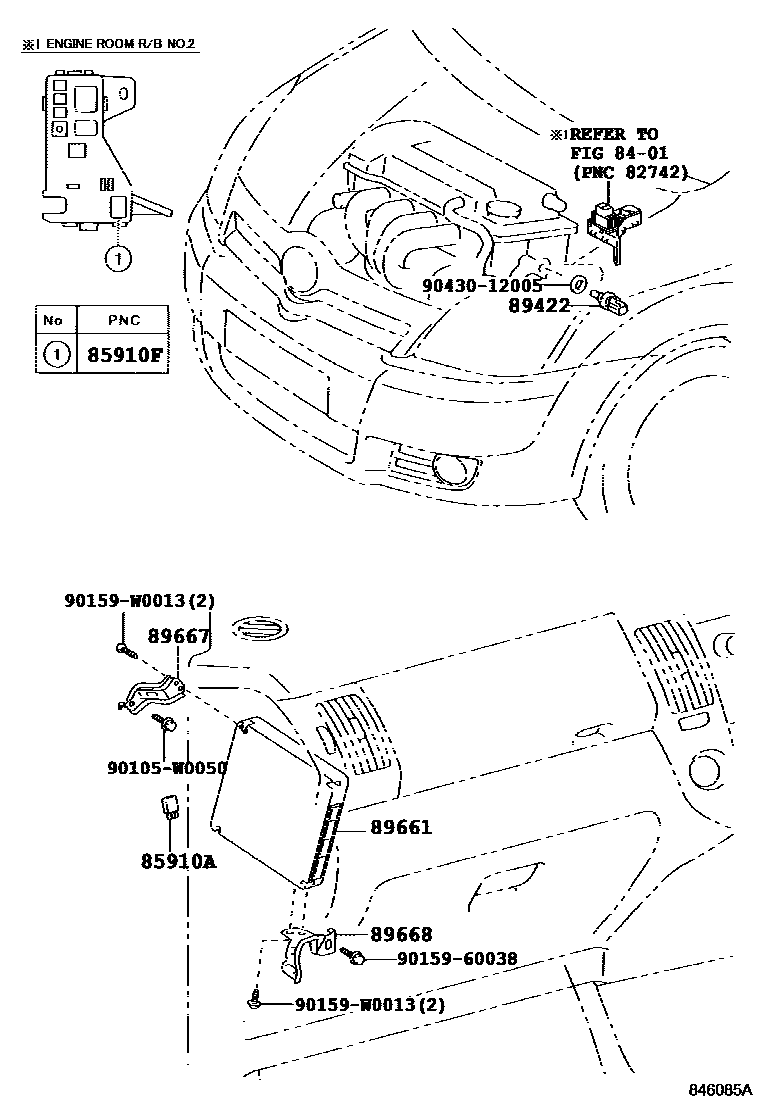

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87019iZNR1#200402-200902

sub90080-87021

85910FRELAY, COMPUTER (FOR EFI)

main90080-87019iZNR1#200402-200902

sub90080-87021

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iZNR1#200402-200705

89661COMPUTER, ENGINE CONTROL

main89661-0F030iZNR11..5F200402-200902

main89661-0F040iZNR11..5F200402-200705

EXH.EMISSION CONTROL-ECE STEP4

main89661-0F040iZNR11..5F200705-200902

EXHAUST EMISSION CONTROL-EURO4 WITHOUT(OBD)

main89661-0F050iZNR11..5FS200402-200902

main89661-0F060iZNR11..5FS200402-200705

EXH.EMISSION CONTROL-ECE STEP4

main89661-0F060iZNR11..5FS200705-200902

EXHAUST EMISSION CONTROL-EURO4 WITHOUT(OBD)

main89661-0F070iZNR10200402-200902

main89661-0F080iZNR10200402-200705

EXH.EMISSION CONTROL-ECE STEP4

main89661-0F080iZNR10200705-200902

EXHAUST EMISSION CONTROL-EURO4 WITHOUT(OBD)

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-0F010iZNR1#..LHD200402-200705

main89667-0F020iZNR1#..RHD200402-200705

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0F030iZNR1#..LHD200402-200705

main89668-0F040iZNR1#..RHD200402-200705

90105W0050

main90105-W0050

9015960038

main90159-60038

90159W0013

main90159-W0013

9043012005

main90430-12005

11 parts on this diagram · 2 diagrams in section
