METER

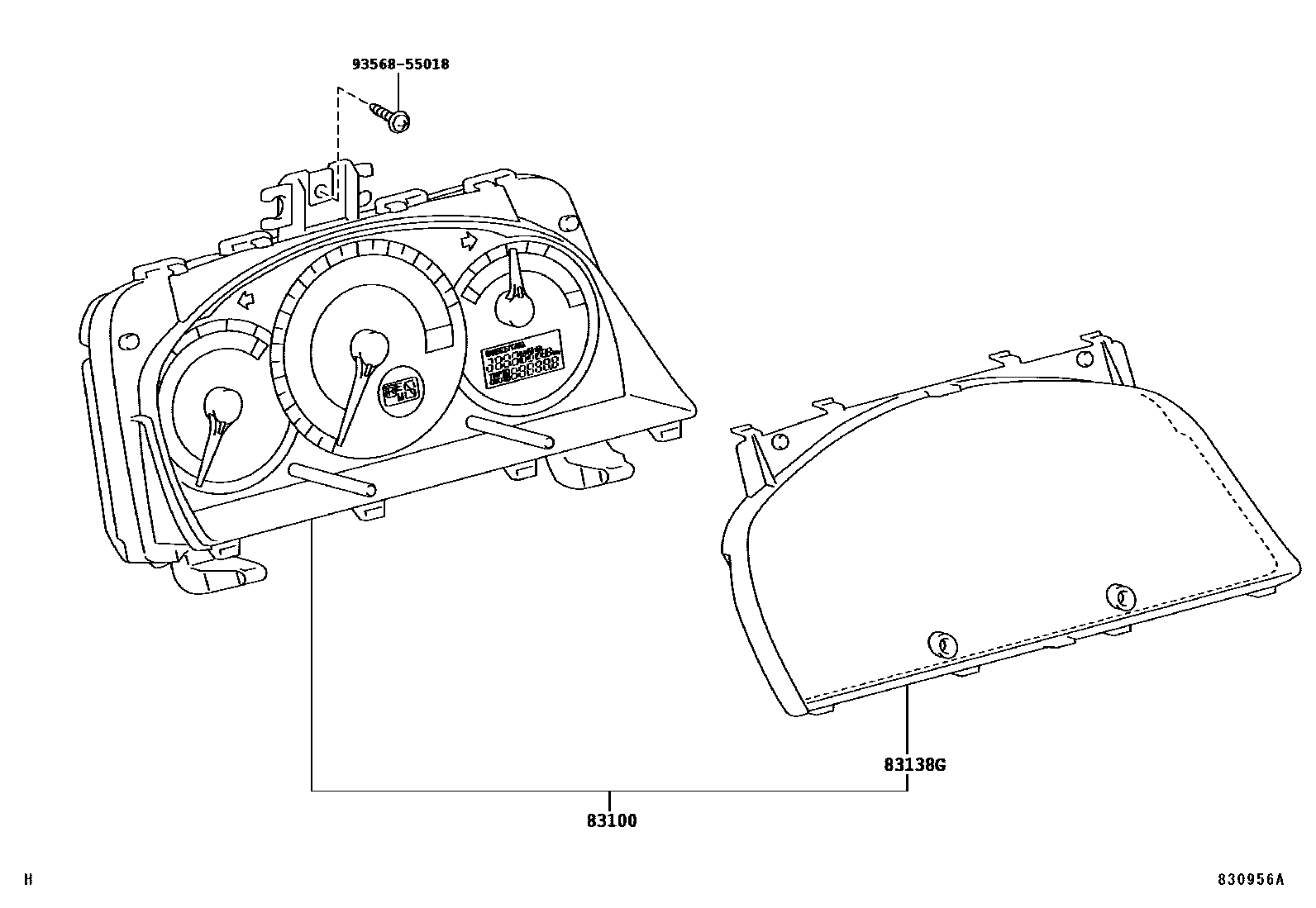

83100METER ASSY, COMBINATION

main83800-0F010iZNR1#..RHD..5F200402-200705

main83800-0F011iZNR1#..RHD..5F200705

main83800-0F020iZNR1#..LHD..5F200402-200705

SPEED METER-OPTITRON KM/H

main83800-0F021iZNR1#..RHD..5F200705

SPEEDOMETER-OPTITRON KM/H

main83800-0F030iZNR11..RHD..5FS200402-200705

main83800-0F031iZNR11..RHD..5FS200705

main83800-0F040iZNR11..RHD..5FS200402-200705

SPEED METER-OPTITRON KM/H

main83800-0F041iZNR11..LHD..5FS200705

SPEEDOMETER-OPTITRON KM/H

main83800-0F050iCUR10..RHD200402-200508

main83800-0F060iCUR10..LHD200402-200508

SPEED METER-OPTITRON KM/H

main83800-0F080iAUR10..RHD200508-200512

main83800-0F081iAUR10..RHD200601-200705

main83800-0F082iAUR10..RHD200705

main83800-0F090iAUR10..LHD..(DCR,DCRL)200508-200512

SPEED METER-OPTITRON KM/H

main83800-0F091iAUR10..LHD200601-200705

SPEED METER-OPTITRON KM/H

main83800-0F092iAUR10..LHD200705

SPEEDOMETER-OPTITRON KM/H

83138GGLASS, COMBINATION METER

main83852-0F010iAUR10..RHD200402-200705

9356855018

main93568-55018

3 parts on this diagram · 1 diagram in section
