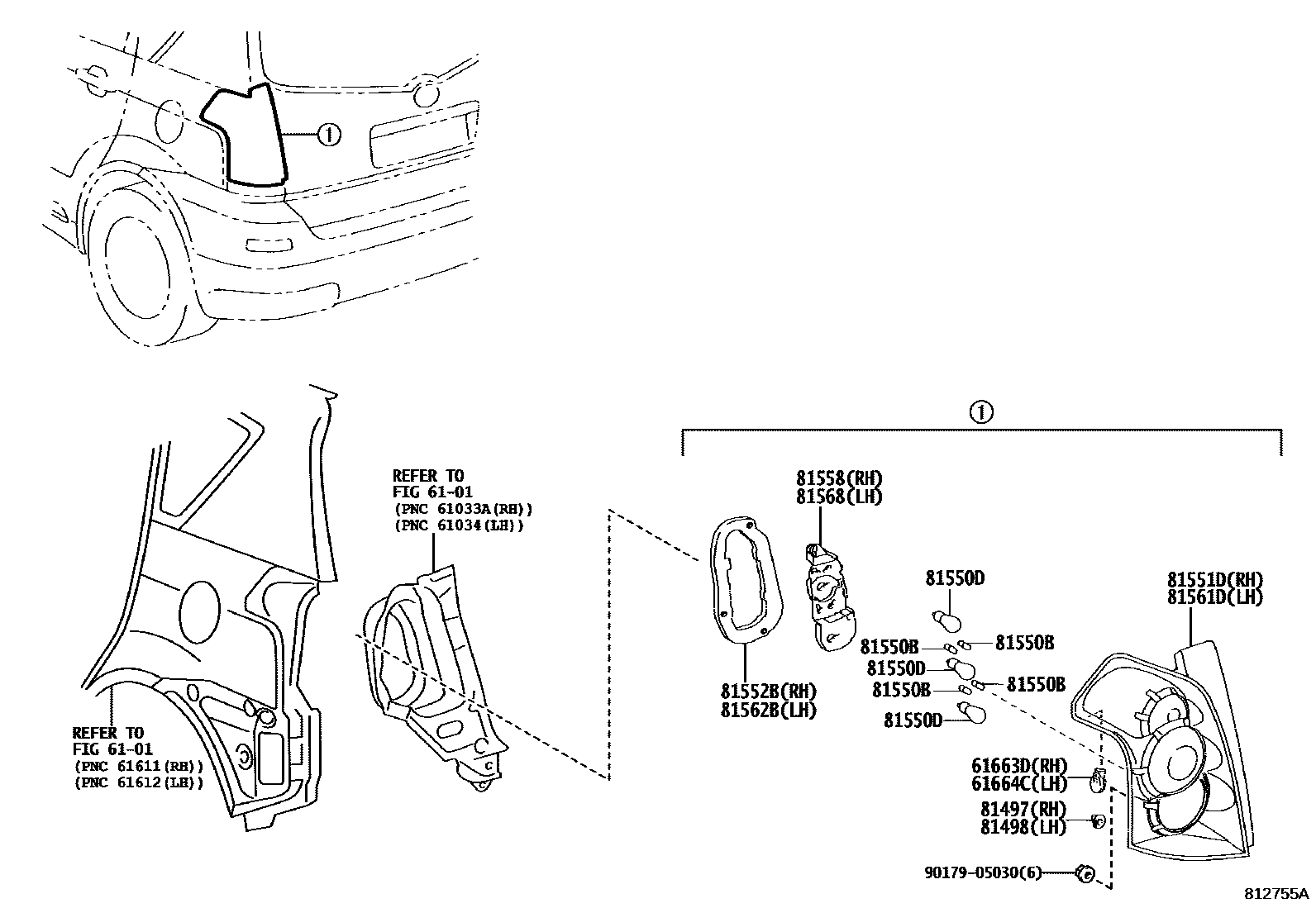

REAR COMBINATION LAMP

0001 1 0002 1

6101

61663DSUPPORT, REAR COMBINATION LAMP, RH

main61663-0F020iCUR10200402-200508

main61663-0F020iAUR10,ZNR1#200402-200705

main61663-0F020iAUR10,ZNR1#200705

61664CSUPPORT, REAR COMBINATION LAMP, LH

main61664-0F020iCUR10200402-200508

main61664-0F020iAUR10,ZNR1#200402-200705

main61664-0F020iAUR10,ZNR1#200705

81497COVER, REAR COMBINATION LAMP, RH

main81497-0F010iAUR10,ZNR1#200402-200705

main81497-0F010iCUR10200402-200508

main81497-0F010iAUR10,ZNR1#200705

81498COVER, REAR COMBINATION LAMP, LH

main81497-0F010iCUR10200402-200508

main81497-0F010iAUR10,ZNR1#200402-200705

main81497-0F010iAUR10,ZNR1#200705

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-WB016iAUR10,ZNR1#200408-200705

12V 4W,OSRAM

main90981-WB016iCUR10200408-200508

12V 4W,OSRAM

main90981-WB018iAUR10,ZNR1#200412-200705

12V 4W,PHILIPS

sub90981-WB016

main90981-WB018iCUR10200412-200508

12V 4W,PHILIPS

sub90981-WB016

main90981-WC002iCUR10,ZNR1#200402-200407

12V 4W

sub90981-WB016

81550DBULB(FOR REAR COMBINATION LAMP)

main90080-81108iCUR10,ZNR1#200402-200407

12V 21W,OSRAM,LH

sub99132-11210¥170

main90981-WC007iCUR10200408-200508

12V 21W

main90981-WC007iAUR10,ZNR1#200408-200705

12V 21W

main90981-WD003iCUR10,ZNR1#200402-200407

12V 21W,GE,RH

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0F010iCUR10,ZNR1#..RHD200402-200407

main81551-0F010iAUR10,ZNR1#..RHD200408-200705

main81551-0F010iCUR10..RHD200408-200508

main81551-0F020iCUR10..LHD200408-200508

main81551-0F020iCUR10,ZNR1#..LHD200402-200407

main81551-0F020iAUR10,ZNR1#..LHD200408-200705

main81551-0F050iAUR10,ZNR1#..RHD..(DCR,HTWC)200705

main81551-0F060iAUR10,ZNR1#..LHD..(DCR,DCRE,HTWC)200705

main81551-0F070iAUR10..RHD..DCRL200705

main81551-0F080iAUR10..LHD..DCRL200705

81552BPACKING, REAR COMBINATION LAMP BODY, RH

main81552-0F010iCUR10,ZNR1#200402-200407

main81552-0F010iCUR10200408-200508

main81552-0F010iAUR10,ZNR1#200408-200705

main81552-0F050iAUR10,ZNR1#200705

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-0F010iCUR10,ZNR1#200402-200407

main81557-0F010iCUR10200408-200508

main81557-0F010iAUR10,ZNR1#200408-200705

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0F010iCUR10,ZNR1#..RHD200402-200407

main81561-0F010iAUR10,ZNR1#..RHD200408-200705

main81561-0F010iCUR10..RHD200408-200508

main81561-0F020iCUR10..LHD200408-200508

main81561-0F020iCUR10,ZNR1#..LHD200402-200407

main81561-0F020iAUR10,ZNR1#..LHD200408-200705

main81561-0F050iAUR10,ZNR1#..RHD..(DCR,HTWC)200705

main81561-0F060iAUR10,ZNR1#..LHD..(DCR,DCRE,HTWC)200705

main81561-0F070iAUR10..RHD..DCRL200705

main81561-0F080iAUR10..LHD..DCRL200705

81562BPACKING, REAR COMBINATION LAMP BODY, LH

main81552-0F010iCUR10,ZNR1#200402-200407

main81552-0F010iCUR10200408-200508

main81552-0F010iAUR10,ZNR1#200408-200705

main81552-0F050iAUR10,ZNR1#200705

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81567-0F010iCUR10,ZNR1#200402-200407

main81567-0F010iCUR10200408-200508

main81567-0F010iAUR10,ZNR1#200408-200705

9017905030

main90179-05030¥120

14 parts on this diagram · 2 diagrams in section
