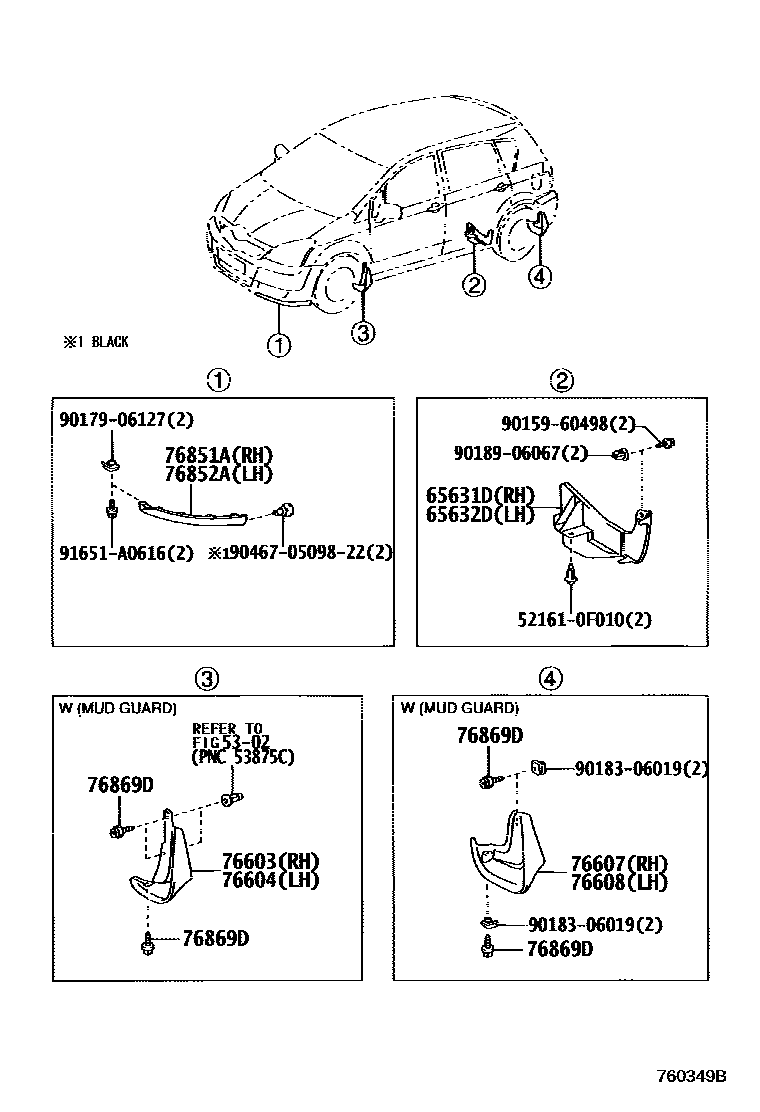

MUDGUARD & SPOILER

0001 1 0002 1

5302

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-0F010iCUR10200402-200705

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-0F010iCUR10200402-200705

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-0F010

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-0F010

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-0F010

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-0F010

76851ACOVER, FRONT SPOILER, RH

main76851-0F901iAUR10,CUR10,ZNR1#200402-200705

main76851-0F902iAUR10,ZNR1#200705-200902

76852ACOVER, FRONT SPOILER, LH

main76852-0F901iAUR10,CUR10,ZNR1#200402-200705

main76852-0F902iAUR10,ZNR1#200705-200902

76869DSCREW, NO.2

521610F010CUSHION, REAR BUMPER GUARD, NO.1

main52161-0F010

9015960498

main90159-60498

9017906127

main90179-06127

9018306019

main90183-06019

9018906067

main90189-06067

904670509822

main90467-0509822

91651A0616

main91651-A0616

17 parts on this diagram · 2 diagrams in section
