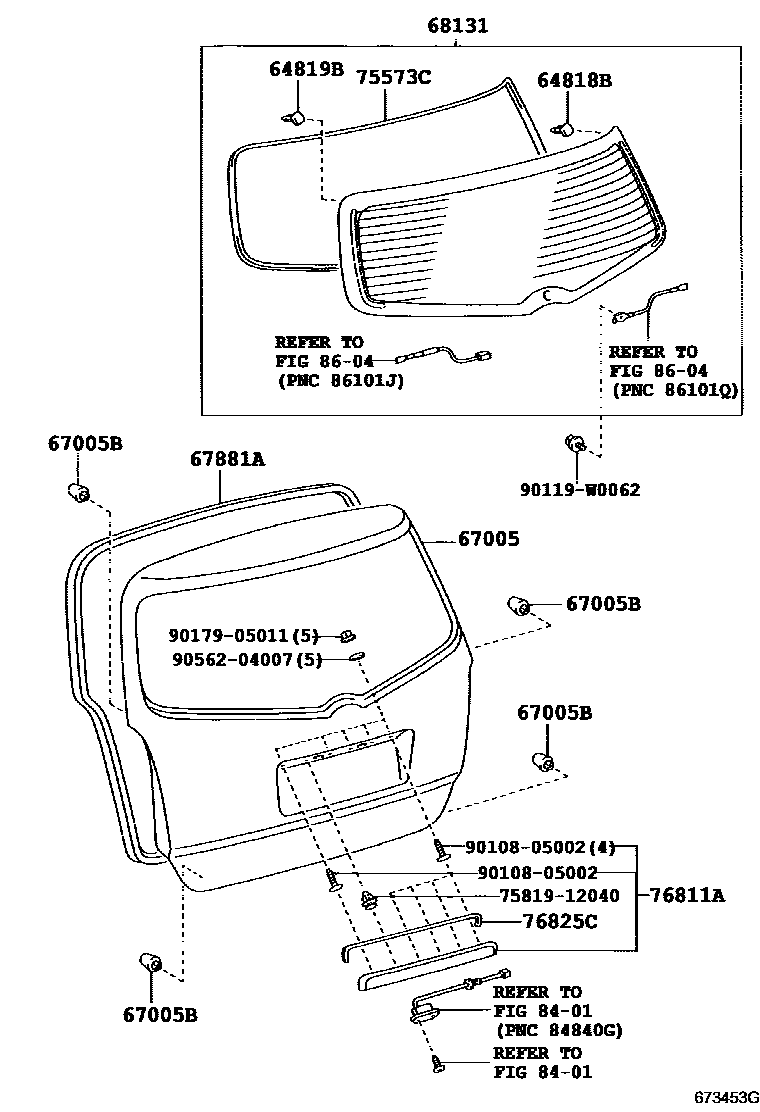

BACK DOOR PANEL & GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005BCUSHION(FOR BACK DOOR PANEL)
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*EHT,T=3.1,GREEN
*EHT,T=3.1,DK.GRAY
75573CMOULDING, BACK WINDOW, OUTSIDE
76811AGARNISH, BACK DOOR, OUTSIDE
PAINT REQ.
PAINT REQ.
PAINT REQ.
76825CPROTECTOR, BACK DOOR OUTSIDE GARNISH
8401
8604
7581912040CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
9010805002
90119W0062
9017905011
9056204007
16 parts on this diagram · 3 diagrams in section
