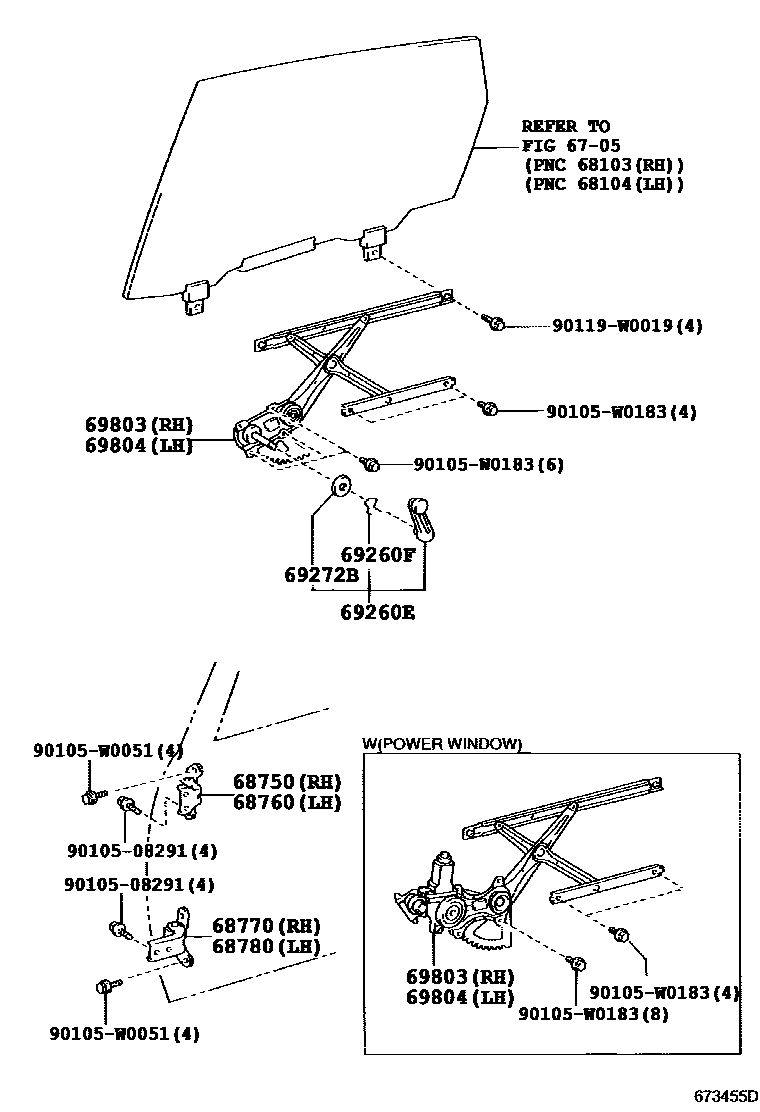

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0F010iAUR10,ZNR1#200705-200902

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0F010iAUR10,CUR10,ZNR1#200402-200705

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02060iAUR10,CUR10,ZNR1#200402-200705

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02060iAUR10,CUR10,ZNR1#200402-200705

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-0F010-B0×2iAUR10,CUR10,ZNR1#..TERRA200402-200705

DK.GRAY,TRIM1#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90524-15005×2iCUR10..TERRA200402-200508

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-0F010×2iAUR10,ZNR1#..TERRA200402-200705

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-0F010iCUR10..TERRA200402-200508

main69830-0F020iCUR10..SOL200402-200508

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-0F010iCUR10..TERRA200402-200508

main69840-0F020iAUR10,ZNR1#..SOL200402-200705

9010508291

main90105-08291

90105W0051

main90105-W0051

90105W0183

main90105-W0183

90119W0019

main90119-W0019

14 parts on this diagram · 1 diagram in section
