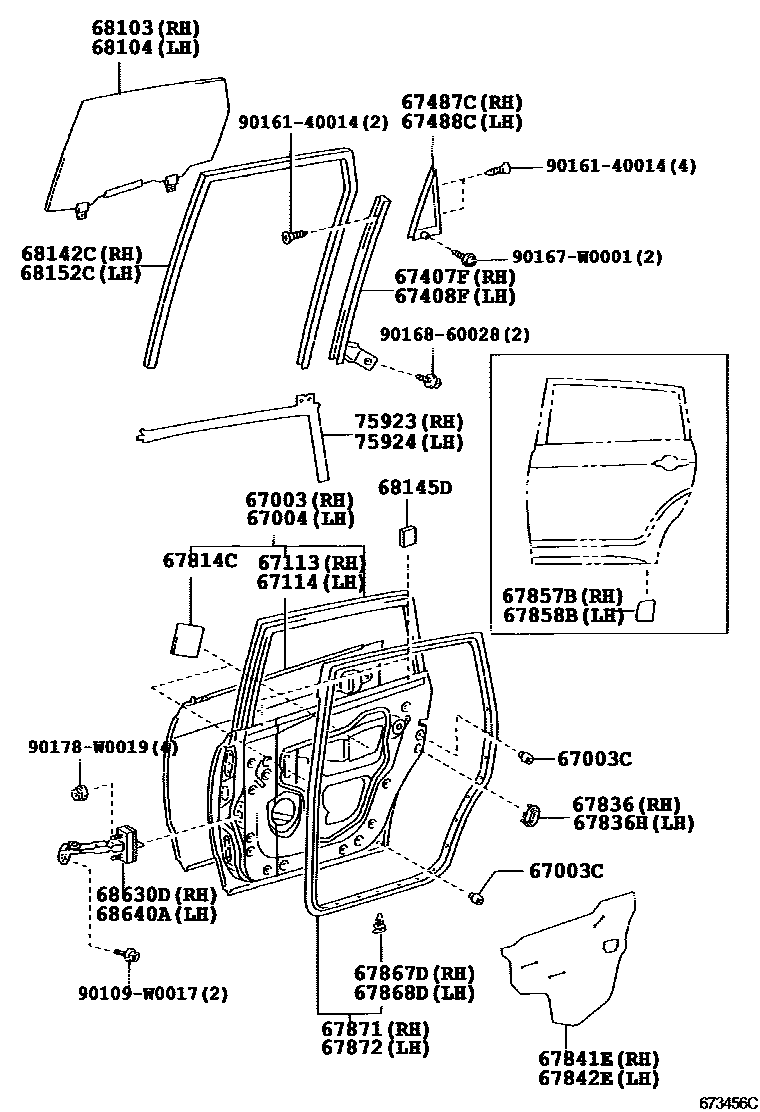

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0F010iAUR10,CUR10,ZNR1#200402-200902

67003CCUSHION, REAR DOOR PANEL

main90541-09124iAUR10,CUR10,ZNR1#200402-200705

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0F010iAUR10,CUR10,ZNR1#200402-200902

67113PANEL, REAR DOOR, OUTER RH

main67113-0F010iCUR10200402-200705

67114PANEL, REAR DOOR, OUTER LH

main67114-0F010iCUR10200402-200705

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-0F010iCUR10200402-200705

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-0F010iAUR10,ZNR1#200402-200705

67487CSEAL, REAR DOOR REAR GUIDE, RH

main67487-0F010iAUR10,CUR10,ZNR1#..DCR,DCRL,HTWC200402-200601

sub67487-0F011

main67487-0F011iAUR10,ZNR1#200602-200705

67488CSEAL, REAR DOOR REAR GUIDE, LH

main67488-0F010iAUR10,CUR10,ZNR1#..DCR,DCRL,HTWC200402-200601

sub67488-0F011

main67488-0F011iAUR10,ZNR1#200602-200705

67814CPACKING, DOOR PROTECTOR

main67817-47010iCUR10200402-200705

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040iCUR10200402-200705

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-12040iCUR10200402-200705

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0F010iCUR10200402-200705

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0F010iCUR10200402-200705

67857BPROTECTOR, REAR DOOR PANEL, RH

67858BPROTECTOR, REAR DOOR PANEL, LH

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67868-02020iCUR10200402-200705

sub67867-12150

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-02020iCUR10200402-200705

sub67867-12150

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0F010iCUR10200402-200705

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0F010iAUR10,ZNR1#200402-200705

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-0F010iAUR10,ZNR1#..TERRA200402-200902

*TEM,T=3.1,GREEN

main68103-0F020iAUR10,ZNR1#..SOL..(DCR,DCRE,HTWC)200508-200902

*TEM,T=3.1,DARK GRAY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-0F010iAUR10,ZNR1#..SOL..(DCR,DCRE,HTWC)200402-200902

*TEM,T=3.1,GREEN

main68104-0F020iAUR10..DCRL200508-200902

*TEM,T=3.1,DARK GRAY

68142CRUN, REAR DOOR GLASS, RH

main68142-0F010iCUR10200402-200705

68145DCUSHION, REAR DOOR WINDOW

main69759-12110iCUR10200402-200705

68152CRUN, REAR DOOR GLASS, LH

main68152-0F010iCUR10200402-200705

68630DCHECK ASSY, REAR DOOR, RH

main68630-64010iCUR10200402-200705

68640ACHECK ASSY, REAR DOOR, LH

main68640-64010iCUR10200402-200705

75923TAPE, BLACK OUT, NO.2 RH

main75923-0F010iCUR10200402-200705

75924TAPE, BLACK OUT, NO.2 LH

main75924-0F010iCUR10200402-200705

90109W0017

main90109-W0017

9016140014

main90161-40014

90167W0001

main90167-W0001

9016860028

main90168-60028

90178W0019

main90178-W0019

34 parts on this diagram · 2 diagrams in section
