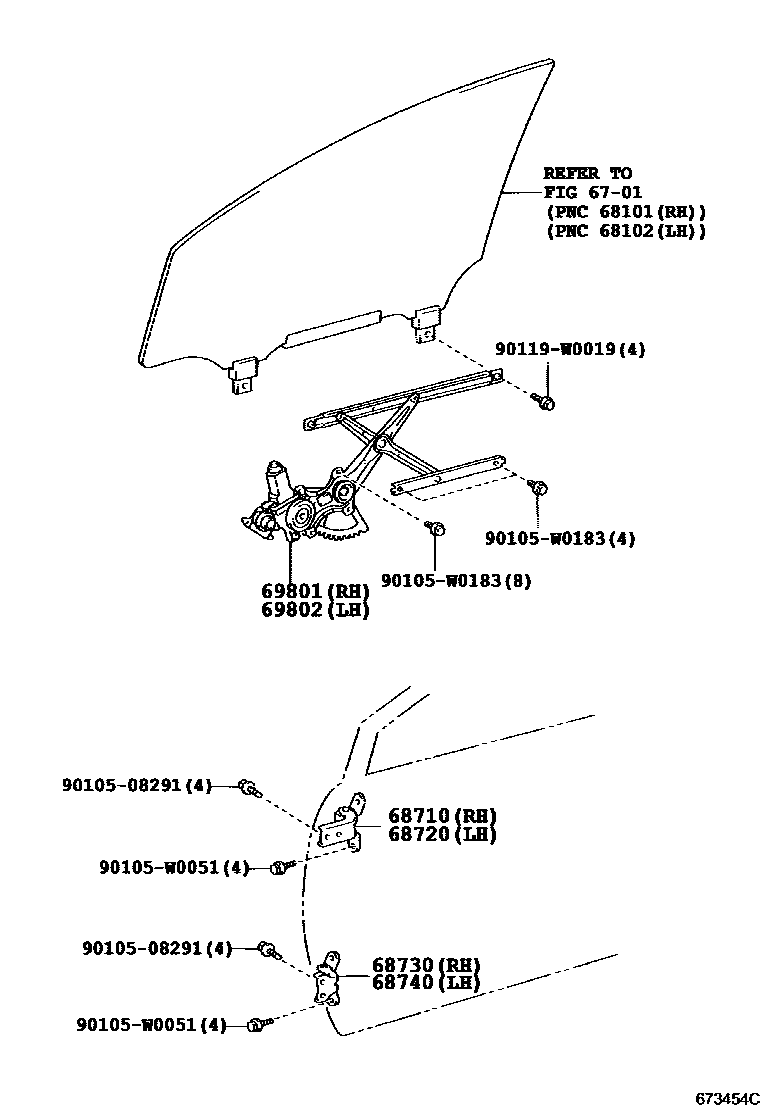

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02050iAUR10,CUR10,ZNR1#200402-200902

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02050iAUR10,CUR10,ZNR1#200402-200902

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0F010iAUR10,CUR10,ZNR1#200402-200902

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0F010iAUR10,CUR10,ZNR1#200402-200902

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-0F010iCUR10200402-200705

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-0F010iCUR10200402-200705

9010508291

main90105-08291

90105W0051

main90105-W0051

90105W0183

main90105-W0183

90119W0019

main90119-W0019

11 parts on this diagram · 1 diagram in section
