FLOOR INSULATOR

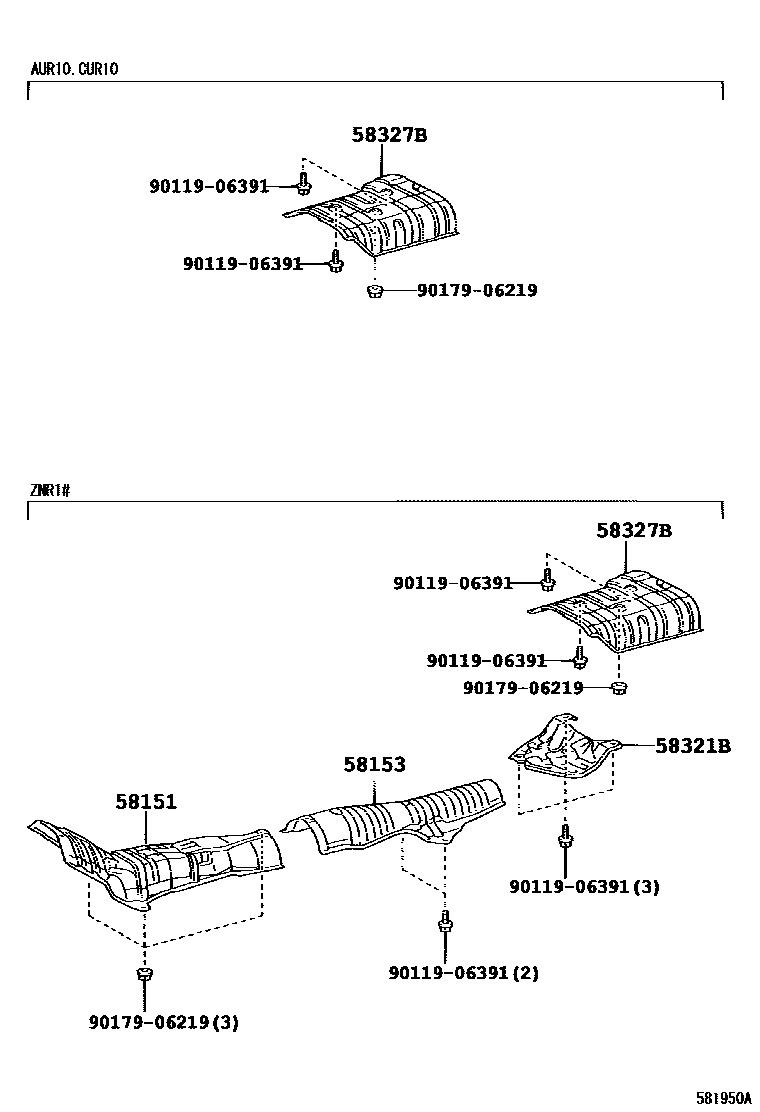

Parts diagram
58151INSULATOR, FRONT FLOOR HEAT, NO.1
main58151-0F010i200402-200709
sub58151-0F011
main58151-0F011i200710
58153INSULATOR, FRONT FLOOR HEAT, NO.2
main58153-0F010i200402-200711
sub58153-0F011
main58153-0F011i200712
58321BINSULATOR, REAR FLOOR HEAT, NO.1
main58321-0F010i200402-200711
sub58321-0F011
main58321-0F011i200712
58327BINSULATOR, MAIN MUFFLER HEAT
main58327-0F010i200402-200706
sub58327-0F011
main58327-0F011i200707
9011906391
main90119-06391
9017906219
main90179-06219

6 parts on this diagram · 1 diagram in section
