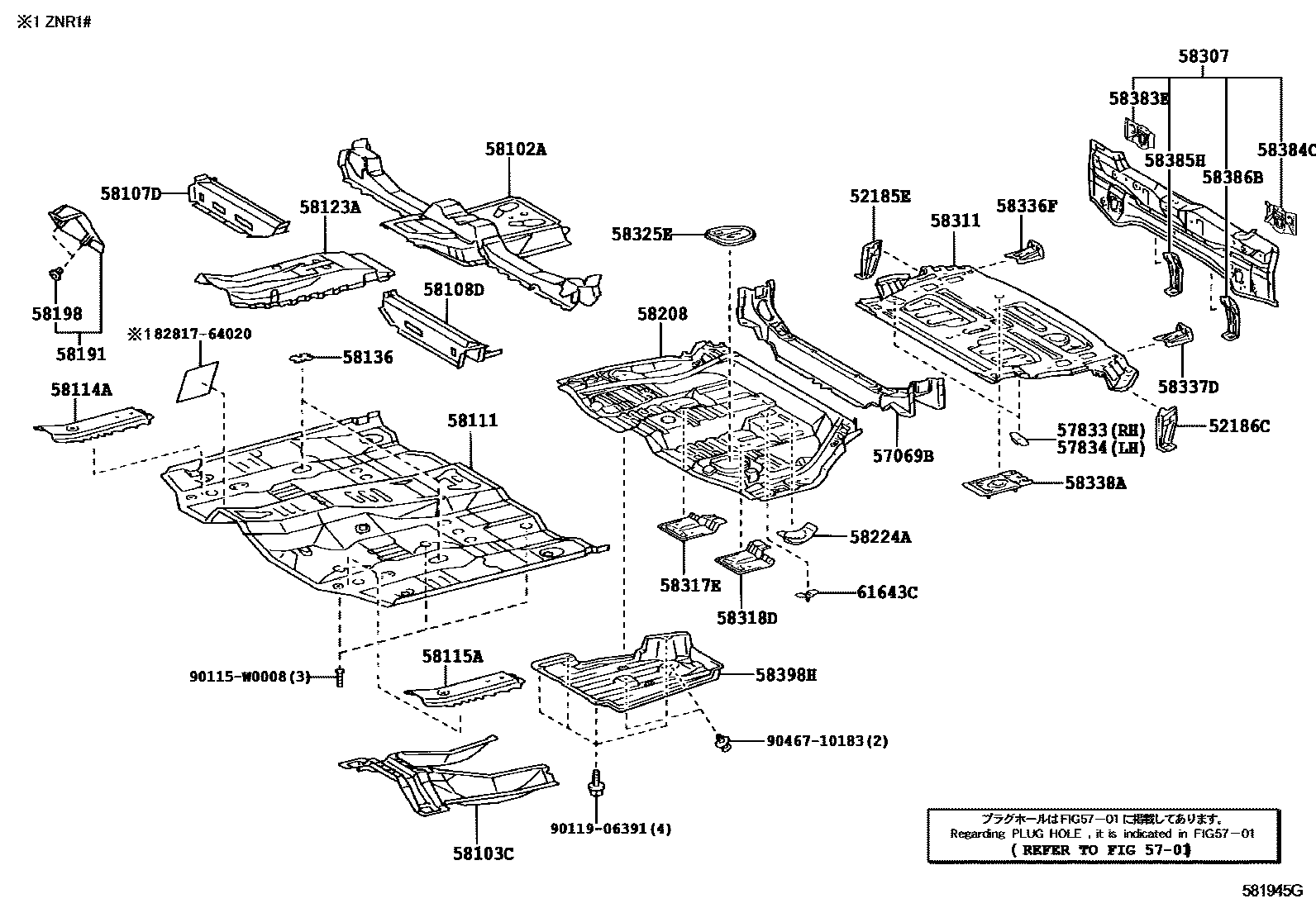

FLOOR PAN & LOWER BACK PANEL
52185EBRACKET, REAR BUMPER SIDE MOUNTIN, RH
W/O REAR SEAT
52186CBRACKET, REAR BUMPER SIDE MOUNTING, LH
W/O REAR SEAT
5701
57069BMEMBER SUB-ASSY, REAR FLOOR CROSS, CENTER
W/O REAR SEAT
57833REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.3
W/O REAR SEAT
57834REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.4
W/O REAR SEAT
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT
58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH
58114AREINFORCEMENT, FRONT FLOOR PANEL
58115AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58208PAN, CENTER FLOOR
58224AREINFORCEMENT, FLOOR SIDE PANEL, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
W/O REAR SEAT
58317ERETAINER, REAR SEAT, NO.2
58318DRETAINER, REAR SEAT, NO.3
58325ECOVER, REAR FLOOR SERVICE HOLE
58336FREINFORCEMENT, REAR FLOOR PAN, RH
W/O REAR SEAT
58337DREINFORCEMENT, REAR FLOOR PAN, LH
W/O REAR SEAT
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
W/O REAR SEAT
58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH
58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58398HCOVER, FLOOR UNDER, NO.1
61643CPATCH, QUARTER WHEEL HOUSE, NO.1
8281764020PROTECTOR, WIRING HARNESS, NO.1
main82817-64020
90115W0008
main90115-W0008
9011906391
main90119-06391
9046710183
main90467-10183
37 parts on this diagram · 1 diagram in section
