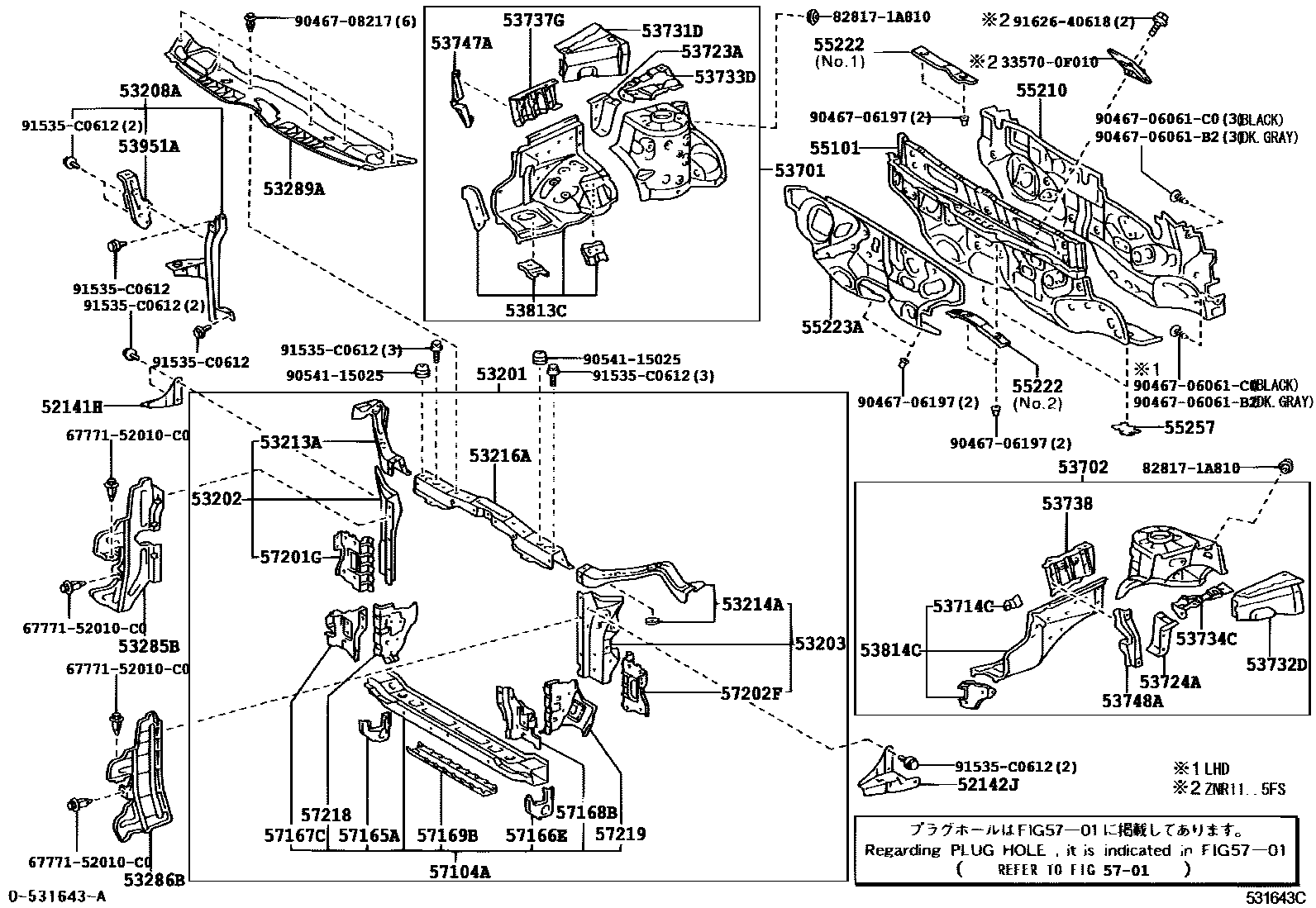

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

52141HARM, FRONT BUMPER, UPPER RH

main52141-0F020iAUR10,ZNR1#200402-200705

52142JARM, FRONT BUMPER, UPPER LH

main52142-0F020iCUR10200402-200705

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0F900iZNR1#200402-200507

sub53201-0F909

main53201-0F901iCUR10200402-200508

main53201-0F908iAUR10200508-200705

main53201-0F909iZNR1#200508-200705

main53201-0F910iZNR1#200705

main53201-0F911iAUR10200705

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0F010iCUR10,ZNR1#200402-200508

sub53202-0F011

main53202-0F020iAUR10,ZNR1#200508-200705

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0F010iCUR10200402-200508

sub53203-0F011

main53203-0F011iZNR1#200508-200705

main53203-0F020iAUR10200508-200705

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-0F010iCUR10,ZNR1#200402-200902

main53208-0F020iAUR10200508-200604

main53208-0F021iAUR10200605-200902

53213ASUPPORT, RADIATOR, UPPER RH

main53213-0F010iCUR10,ZNR1#200402-200508

sub53213-0F011

main53213-0F011iAUR10,ZNR1#200508-200705

53214ASUPPORT, RADIATOR, UPPER LH

main53214-0F900iCUR10..RHD;CUR10..LHD..07S;CUR10..LHD..05S..TERRA200402-200705

53216ASUPPORT, RADIATOR, UPPER

main53205-0F010iZNR1#200402-200705

main53205-0F020iCUR10200402-200508

main53205-0F031iAUR10200508-200705

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-0F010iCUR10200402-200705

main53285-0F020iAUR10200508-200705

main53285-0F030iZNR1#200705

main53285-0F040iAUR10200705

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-0F010iZNR1#200402-200705

main53286-0F020iAUR10200508-200705

main53286-0F030iZNR1#200705

main53286-0F040iAUR10200705

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-0F010iCUR10,ZNR1#200402-200405

sub53289-0F011

main53289-0F011iCUR10200406-200705

main53289-0F020iAUR10,ZNR1#200705

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0F010iAUR10,CUR10,ZNR1#200402-200902

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0F010iAUR10,ZNR1#200402-200902

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-02040iCUR10200402-200705

(L)

main53714-13020iAUR10,ZNR1#200402-200705

(J)

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-02010iAUR10,ZNR1#200402-200705

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53724-02010iAUR10,ZNR1#200402-200705

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53705-0F010iCUR10200402-200705

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53706-0F010iCUR10200402-200705

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-0F010iCUR10200402-200705

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-0F010iCUR10200402-200705

53737GPLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-0F010iCUR10200402-200705

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-0F010iCUR10200402-200705

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-0F010iCUR10200402-200705

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-0F010iCUR10200402-200705

53813CEXTENSION, FRONT FENDER, RH

main53707-0F900iAUR10,ZNR1#200402-200705

53814CEXTENSION, FRONT FENDER, LH

main53708-0F900iCUR10200402-200705

53951ASUPPORT, FRONT END PANEL, UPPER

main53951-0F010iCUR10200402-200705

main53951-0F020iAUR10..DCR,DCRL200508-200604

sub53951-0F021

main53951-0F021iAUR10200605-200705

55101PANEL SUB-ASSY, DASH

main55101-0F010iZNR11..LHD..5FS200402-200902

main55101-0F020iAUR10,CUR10,ZNR1#..LHD..(5F,6F)200402-200902

main55101-0F030iZNR11..RHD..5FS200402-200902

main55101-0F040iZNR1#..RHD..5F200402-200902

main55101-0F050iAUR10..RHD200402-200902

55210INSULATOR ASSY, DASH PANEL

main55210-0F010iAUR10,ZNR1#..LHD200402-200705

main55210-0F020iAUR10,ZNR1#..RHD200402-200705

55222INSULATOR, DASH PANEL, OUTER CENTER

main55222-0F010iCUR10,ZNR1#200402-200407

NO.1

sub55222-0F011

main55222-0F011iCUR10200408-200705

NO.1

main55224-0F010iAUR10,ZNR1#200402-200705

NO.2

55223AINSULATOR, DASH PANEL, OUTER

main55223-02081iCUR10,ZNR1#..RHD200402-200508

sub55223-02082

main55223-02082iAUR10,ZNR1#..RHD200508-200705

main55223-02090iCUR10,ZNR1#..LHD200402-200508

sub55223-02091

main55223-02091iAUR10,ZNR1#..LHD200508-200705

55257COVER, DASH PANEL OPENING

main55257-02030iAUR10,ZNR1#200705-200902

(L)

main55257-02030iCUR10200402-200705

main55257-13010iAUR10,ZNR1#200705-200902

(J)

5701

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-0F010iCUR10200402-200705

main57104-0F020iAUR10200508-200705

main57104-0F030iZNR1#200705

main57104-0F040iAUR10200705

57165AREINFORCEMENT, FRONT CROSSMEMBER, NO.2

main57165-02050iCUR10200402-200705

57166EREINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH

main57166-02040iAUR10,ZNR1#200402-200705

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-0F010iZNR1#200402-200705

main57167-0F020iAUR10200508-200705

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-0F010iCUR10200402-200705

main57168-0F020iAUR10200508-200705

57169BREINFORCEMENT, FRONT CROSSMEMBER, NO.4

main57169-02040iZNR1#200402-200705

main57169-0F010iAUR10200508-200705

57201GEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-02010iCUR10,ZNR1#200402-200508

sub57201-02011

main57201-02011iAUR10,ZNR1#200508-200705

57202FEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-02010iCUR10,ZNR1#200402-200508

sub57202-02011

main57202-02011iAUR10,ZNR1#200508-200705

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-02041iCUR10200402-200705

main57218-0F010iAUR10200508-200705

main57218-0F020iZNR1#200705

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-02041iCUR10200402-200705

main57219-0F010iAUR10200508-200705

main57219-0F020iZNR1#200705

335700F010COLUMN SHIFT ASSY, TRANSMISSION

main33570-0F010

6777152010C0WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-52010C0

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9046706061B2

main90467-06061B2

9046706061C0

main90467-06061C0

9046706197

main90467-06197

9046708217

main90467-08217

9054115025

main90541-15025

91535C0612

main91535-C0612

9162640618

main91626-40618

54 parts on this diagram · 2 diagrams in section
