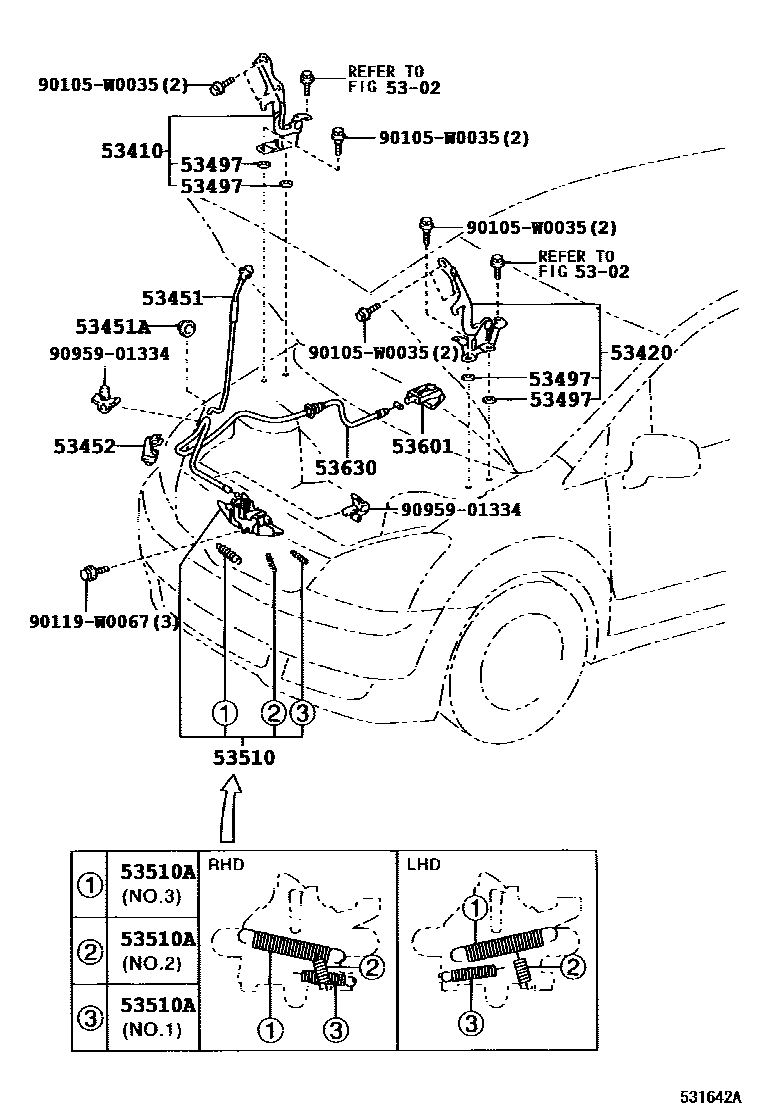

HOOD LOCK & HINGE

5302

53410HINGE ASSY, HOOD, RH

main53410-0F010iAUR10,ZNR1#200402-200902

53420HINGE ASSY, HOOD, LH

main53420-0F010iAUR10,CUR10,ZNR1#200402-200902

53451ROD, HOOD SUPPORT

main53440-0F010iCUR10200402-200705

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034iCUR10200402-200705

53452HOLDER, HOOD STAY

main53452-13010iCUR10200402-200705

53497PAD, HOOD HINGE, NO.1

main53497-42010iCUR10200402-200705

T=0.5

53510LOCK ASSY, HOOD

main53510-0F010iAUR10,ZNR1#..LHD200402-200705

sub53510-0F030

main53510-0F020iCUR10..RHD200402-200705

sub53510-0F040

main53510-0F030iAUR10,ZNR1#..LHD200705

main53510-0F040iAUR10,ZNR1#..RHD200705

53510ASPRING, TENSION(FOR HOOD LOCK)

main90080-50398iAUR10,ZNR1#200402-200705

WD=0.9,CW=20.75,NO.1

main90080-50399iAUR10,ZNR1#200402-200705

WD=1.2,CW=8.5,NO.2

main90506-W0001iAUR10,ZNR1#200402-200705

WD=1.8,CW=16,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-B0iAUR10,CUR10,ZNR1#200402-200902

DK.GRAY,TRIM1#

sub53601-05030

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0F010iCUR10200402-200705

90105W0035

main90105-W0035

90119W0067

main90119-W0067

9095901334

main90959-01334

14 parts on this diagram · 1 diagram in section
