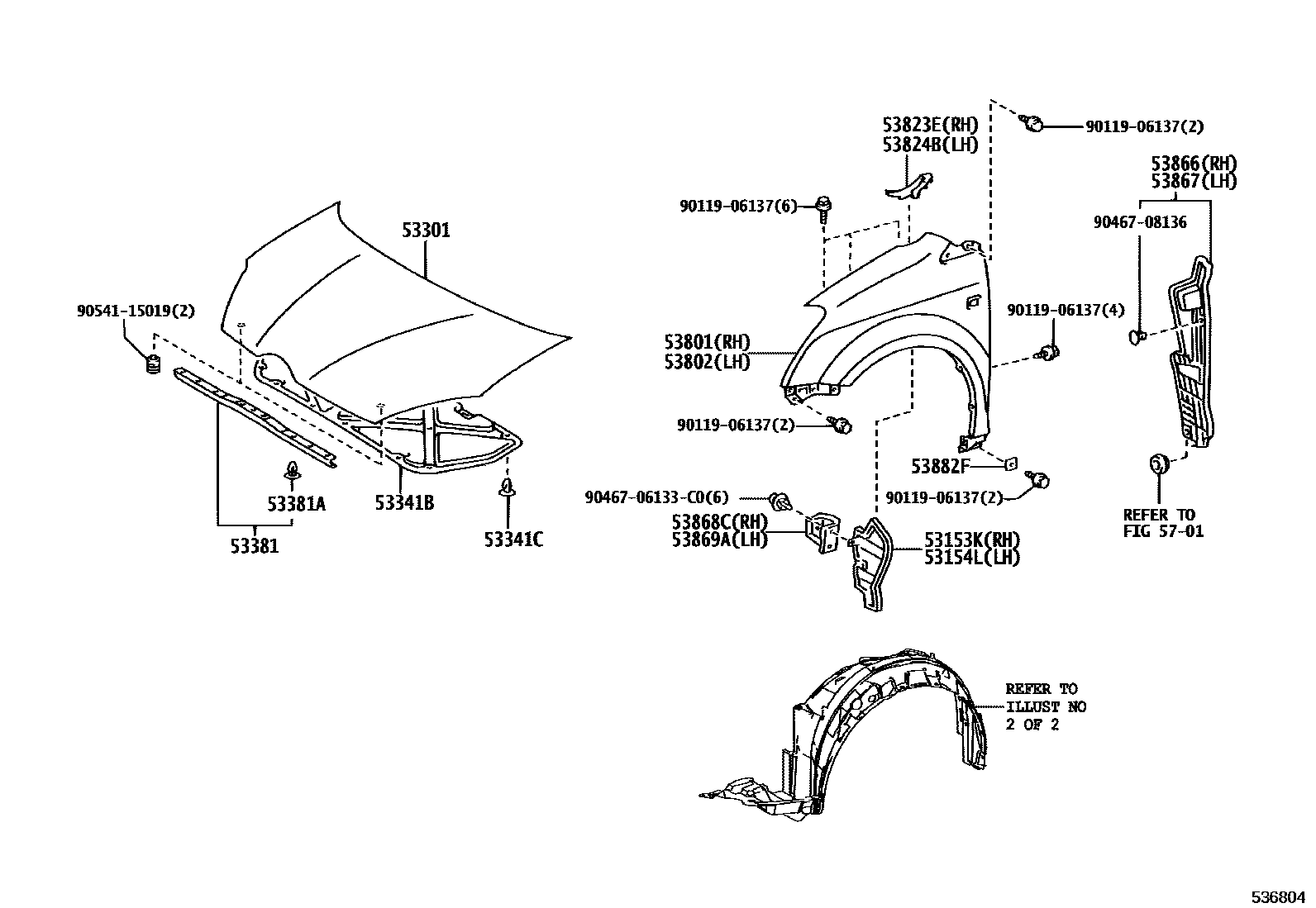

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-0F010iCUR10200402-200705

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-0F010iCUR10200402-200705

53301HOOD SUB-ASSY

main53301-0F010iAUR10,CUR10,ZNR1#200402-200602

sub53301-0F011

main53301-0F011iAUR10,ZNR1#200603-200902

53341BINSULATOR, HOOD

main53341-0F010iCUR10200402-200705

53341CCLIP(FOR HOOD INSULATOR)

main90467-W0003iCUR10200402-200705

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0F010iCUR10200402-200705

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iCUR10200402-200705

53801FENDER SUB-ASSY, FRONT RH

main53811-0F010iAUR10,CUR10,ZNR1#200402-200902

53802FENDER SUB-ASSY, FRONT LH

main53812-0F010iAUR10,CUR10,ZNR1#200402-200902

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-0F010iCUR10200402-200705

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-0F010iCUR10200402-200705

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0F010iCUR10200402-200705

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0F010iCUR10200402-200705

53868CSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-0F010iCUR10200402-200705

53869ASEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-0F010iCUR10200402-200705

53882FSEAL, FRONT FENDER

main53882-16030iAUR10,CUR10,ZNR1#200402-200902

5701

9011906137

main90119-06137

9046706133C0

main90467-06133C0

9046708136

main90467-08136

9054115019

main90541-15019

21 parts on this diagram · 2 diagrams in section
